BX-2P Series

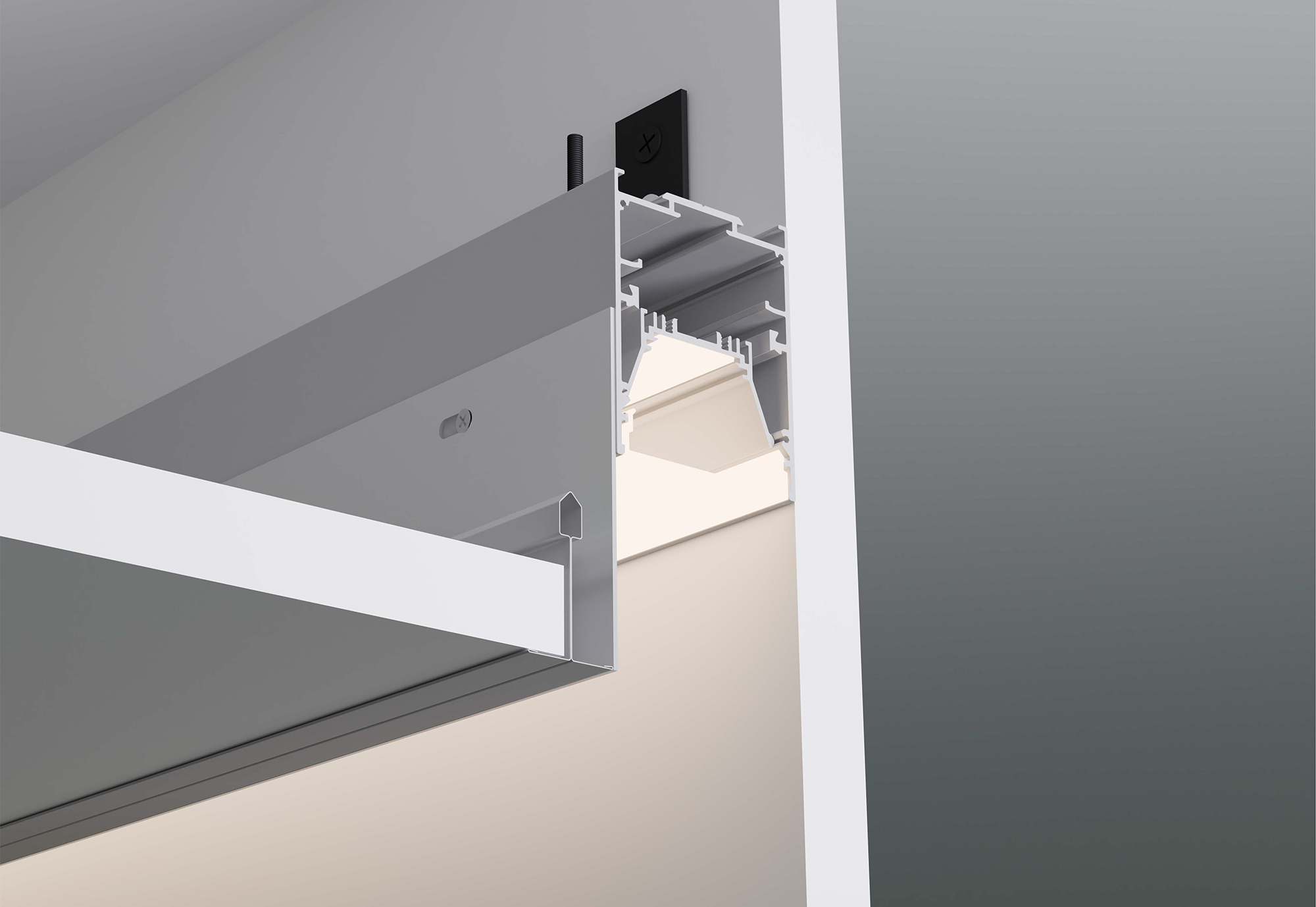

BX-2P PERIMETER SERIES
BX-2P Perimeter linear lighting is a highly versatile and effective lighting technique that offers a wide range of benefits for both residential and commercial spaces. It's not just about illumination; it's a design tool that can dramatically change the look and feel of a room.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct illumination, 110° beam angle
Construction: High grade aluminum extrusion, die cast end caps, PMMA diffuser, integral driver, powder coat finish, X, T, L Lit corners available for smooth, seamless patterns, damp location listed.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-2P-D-2-LO-30 | 2' | Low | 3000K | 11W | 1100Lm |
| TECHOLED-BX-2P-D-2-ME-30 | 2' | Medium | 3000K | 16W | 1600Lm |
| TECHOLED-BX-2P-D-2-HI-30 | 2' | High | 3000K | 20W | 2000Lm |
| TECHOLED-BX-2P-D-4-LO-30 | 4' | Low | 3000K | 22W | 2200Lm |
| TECHOLED-BX-2P-D-4-ME-30 | 4' | Medium | 3000K | 31W | 3100Lm |
| TECHOLED-BX-2P-D-4-HI-30 | 4' | High | 3000K | 40W | 4000Lm |
| TECHOLED-BX-2P-D-6-LO-30 | 6' | Low | 3000K | 33W | 3300Lm |
| TECHOLED-BX-2P-D-6-ME-30 | 6' | Medium | 3000K | 46W | 4600Lm |
| TECHOLED-BX-2P-D-6-HI-30 | 6' | High | 3000K | 60W | 6000Lm |
| TECHOLED-BX-2P-D-8-LO-30 | 8' | Low | 3000K | 46W | 4600Lm |
| TECHOLED-BX-2P-D-8-ME-30 | 8' | Medium | 3000K | 61W | 6100Lm |
| TECHOLED-BX-2P-D-8-HI-30 | 8' | High | 3000K | 80W | 8000Lm |
