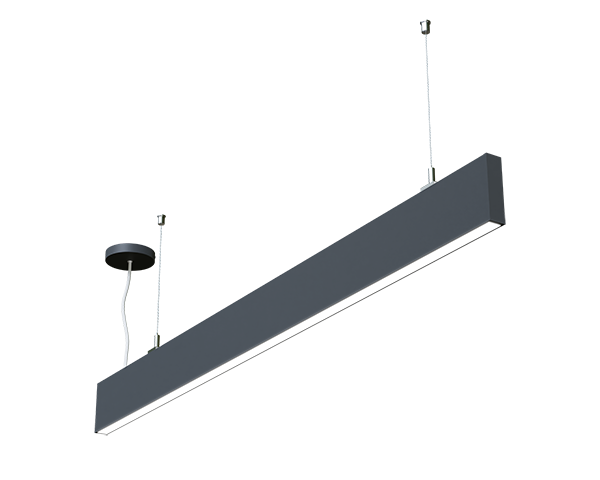

Slim Linear Series
GENERAL: Indoor Architectural LED Fixture. Concave Shape with Concealed Illumination, Anti-glare Nano
Technology Reflector. Pendant, Surface Mount and Recessed Installation.
LED: Samsung LED Chips, 3000-5000K, Dynamic White and RGBW Available, 83CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 121° Beam Angle, UGR<19, PF > 0.95
CONSTRUCTION: High Grade Aluminum Extrusion, Die Cast End Caps, Nano-Technology Reflector, Built-in
Driver, Powder Coat Finish. Seamless Continuous Linear Runs available, Damp Location.
* 5-year warranty, 50,000 hour rated lifespan. Custom size, lumen output and color temperature available. Grid spacing to avoid gaps is up to the contractor.
| Model # | Size (inches) | Lumen | CRI | CCT | Driver | PF | Lifetime |
|---|---|---|---|---|---|---|---|
| TechoLED-SL-1-36-25-X | 36 x 0.72 x 3.14" | 2000Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-1-36-30-X | 36 x 0.72 x 3.14" | 2400Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-1-48-34-X | 48 x 0.72 x 3.14" | 2720Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-1-48-40-X | 48 x 0.72 x 3.14" | 3200Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-1-59-40-X | 59 x 0.72 x 3.14" | 3200Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-2-36-25-X | 36 x 0.78 x 3.7" | 2000Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-2-36-30-X | 36 x 0.78 x 3.7" | 2400Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-2-48-34-X | 48 x 0.78 x 3.7" | 2720Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-2-48-40-X | 48 x 0.78 x 3.7" | 3200Lm | >83 | 3000K/4000K/5000K | Built in | > 0.95 | 50000 (h) |
| TechoLED-SL-2-59-40-X | 59 x 0.78 x 3.7" | 3200Lm | >83 | 3000k/4000k/5000k | Built in | > 0.95 | 50000 (h) |
