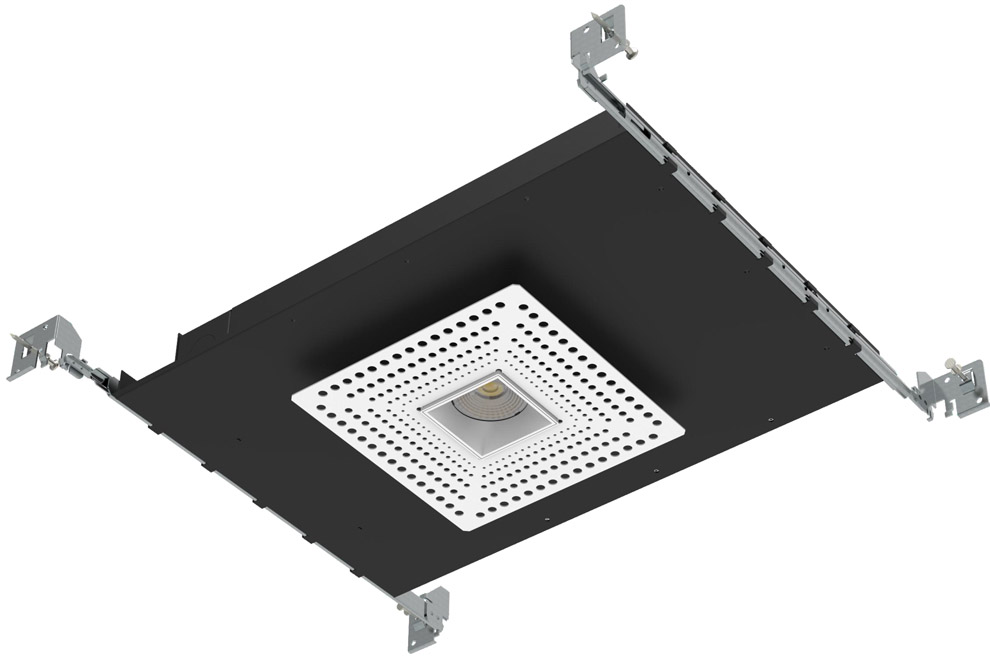

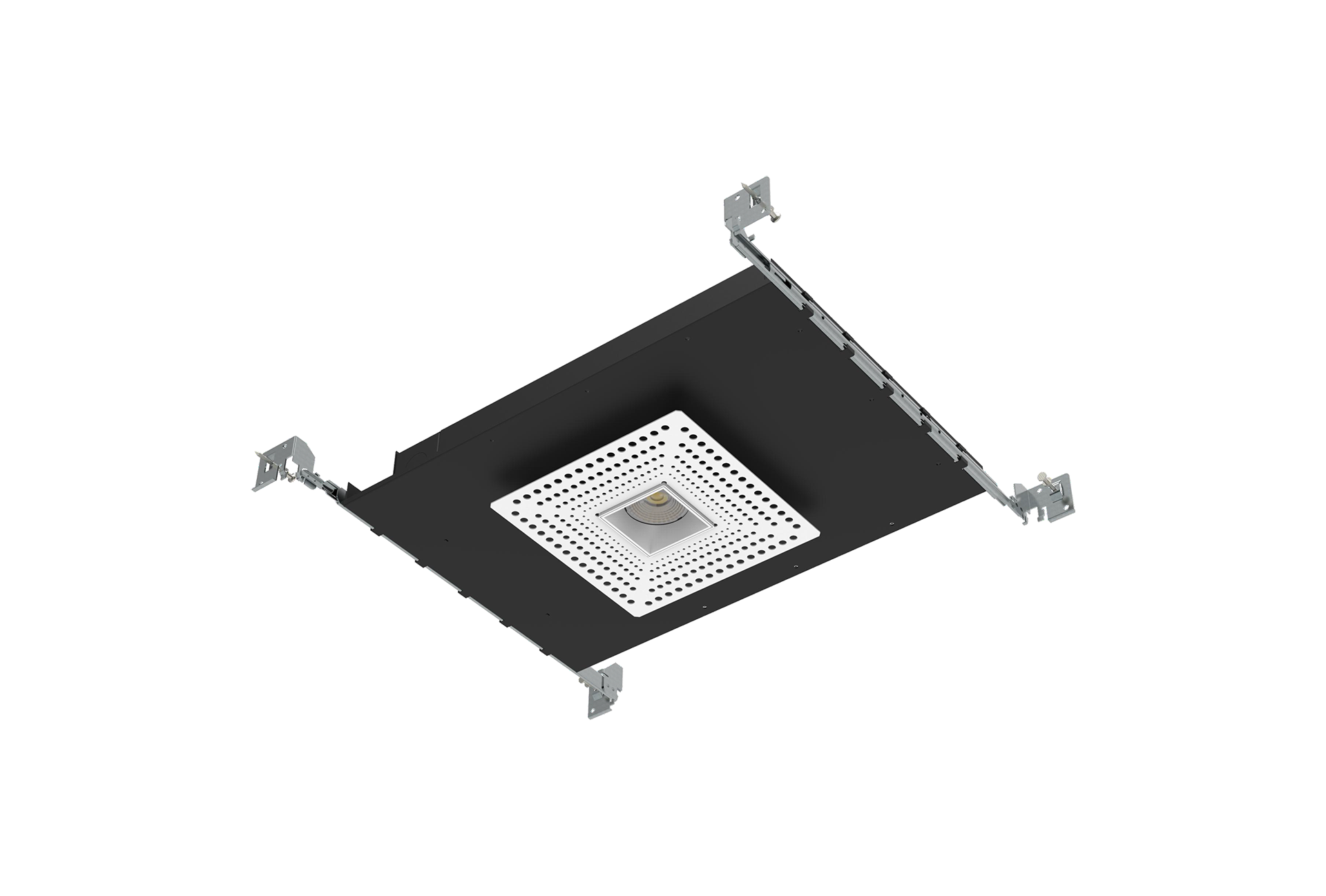

SD-S-3 Series
GENERAL: 3″ aperture, shallow architectural downlight, new
construction
LED: Cree-LED Chips, 2700-6000K, CRI > 90
OPTICAL: 12° Beam Angle (24, 36 Optional)
CONSTRUCTION: High Grade Steel 2.5″ Shallow Housing, Frosted
Perspex Diffuser, Integral Driver, Powder Coat Finish, Trimmed or
Trimless, Damp Location Listed
* 5-year warranty, 50.000 hour rated lifespan, custom lumen output and color temperature available.
| Model | Size | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-SD-S-3 | 3” | 23W | Direct | 2070Lm |
| TechoLED-SD-S-3 | 3” | 16W | Direct | 1440Lm |
| TechoLED-SD-S-3 | 3” | 10W | Direct | 900Lm |
