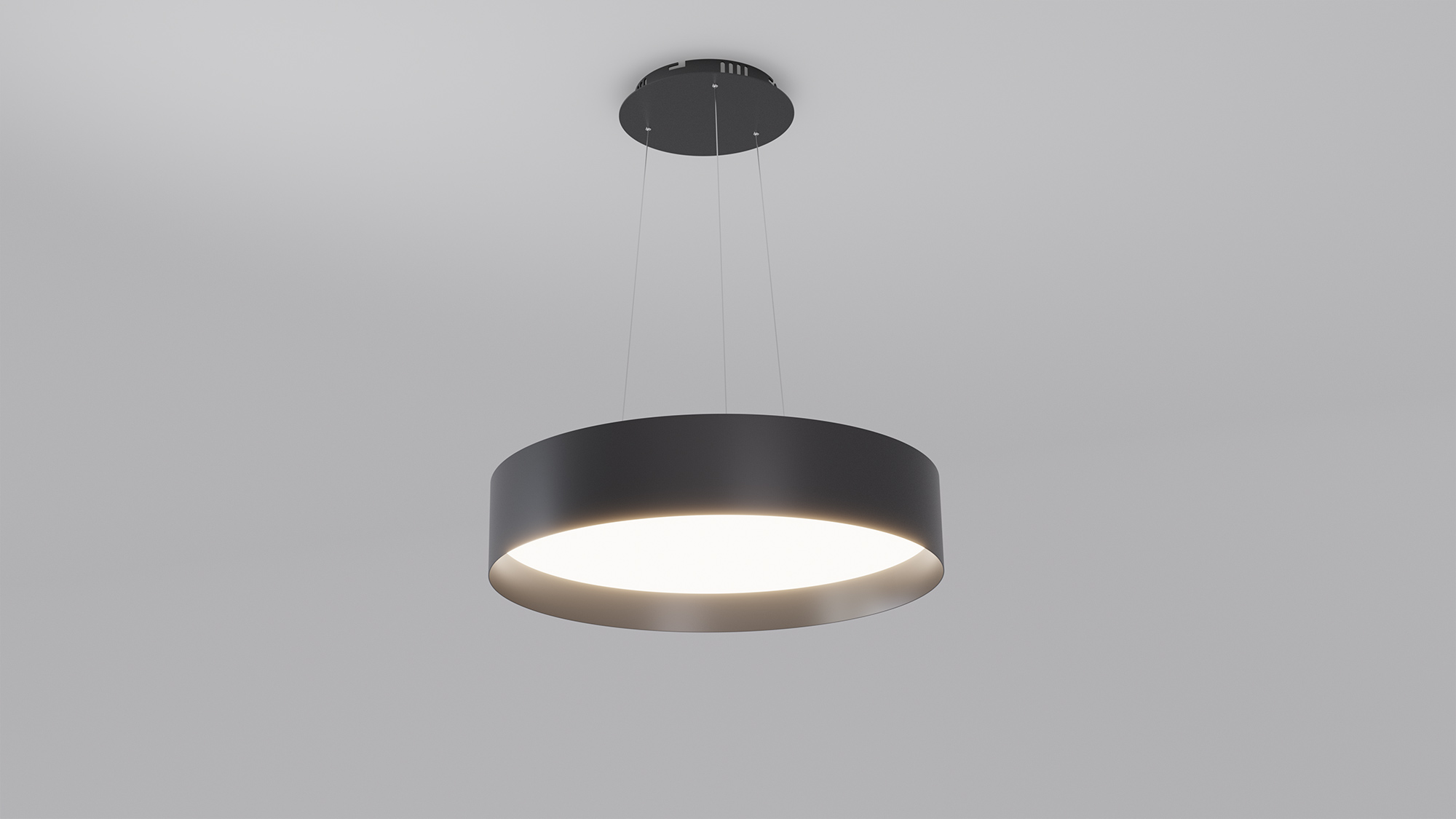

MOON SERIES - REGRESSED
MOON SERIES - REGRESSED
The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 23.6” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct/Indirect configuration, 90° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
| Model | Diameter | Output | Color Temp. | Wattage | Direct Lumen Output | Indirect Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-MR-D-23-LO-30-U-S | 23.6" | Low | 3000K | 20W | 1700Lm | - |
| TECHOLED-MR-D-23-ME-30-U-S | 23.6" | Medium | 3000K | 40W | 3400Lm | - |
| TECHOLED-MR-D-23-HI-30-U-S | 23.6" | High | 3000K | 60W | 5100Lm | - |
| TECHOLED-MR-D-35-LO-30-U-S | 35.4" | Low | 3000K | 45W | 3825Lm | - |
| TECHOLED-MR-D-35-ME-30-U-S | 35.4" | Medium | 3000K | 90W | 7650Lm | - |
| TECHOLED-MR-D-35-HI-30-U-S | 35.4" | High | 3000K | 135W | 11475Lm | - |
| TECHOLED-MR-D-47-LO-30-U-S | 47.2" | Low | 3000K | 90W | 7650Lm | - |
| TECHOLED-MR-D-47-ME-30-U-S | 47.2" | Medium | 3000K | 180W | 15300Lm | - |
| TECHOLED-MR-D-47-HI-30-U-S | 47.2" | High | 3000K | 270W | 22950Lm | - |
| TECHOLED-MR-DI-23-LO-30-U-S | 23.6" | Low | 3000K | 30W | 1700Lm | 850Lm |
| TECHOLED-MR-DI-23-ME-30-U-S | 23.6" | Medium | 3000K | 60W | 3400Lm | 1700Lm |
| TECHOLED-MR-DI-23-HI-30-U-S | 23.6" | High | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-MR-DI-35-LO-30-U-S | 35.4" | Low | 3000K | 60W | 3060Lm | 2040Lm |
| TECHOLED-MR-DI-35-ME-30-U-S | 35.4" | Medium | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-MR-DI-35-HI-30-U-S | 35.4" | High | 3000K | 180W | 9860Lm | 5440Lm |
| TECHOLED-MR-DI-47-LO-30-U-S | 47.2" | Low | 3000K | 110W | 5610Lm | 3740Lm |
| TECHOLED-MR-DI-47-ME-30-U-S | 47.2" | Medium | 3000K | 220W | 11220Lm | 7480Lm |
| TECHOLED-MR-DI-47-HI-30-U-S | 47.2" | High | 3000K | 325W | 16660Lm | 11220Lm |
