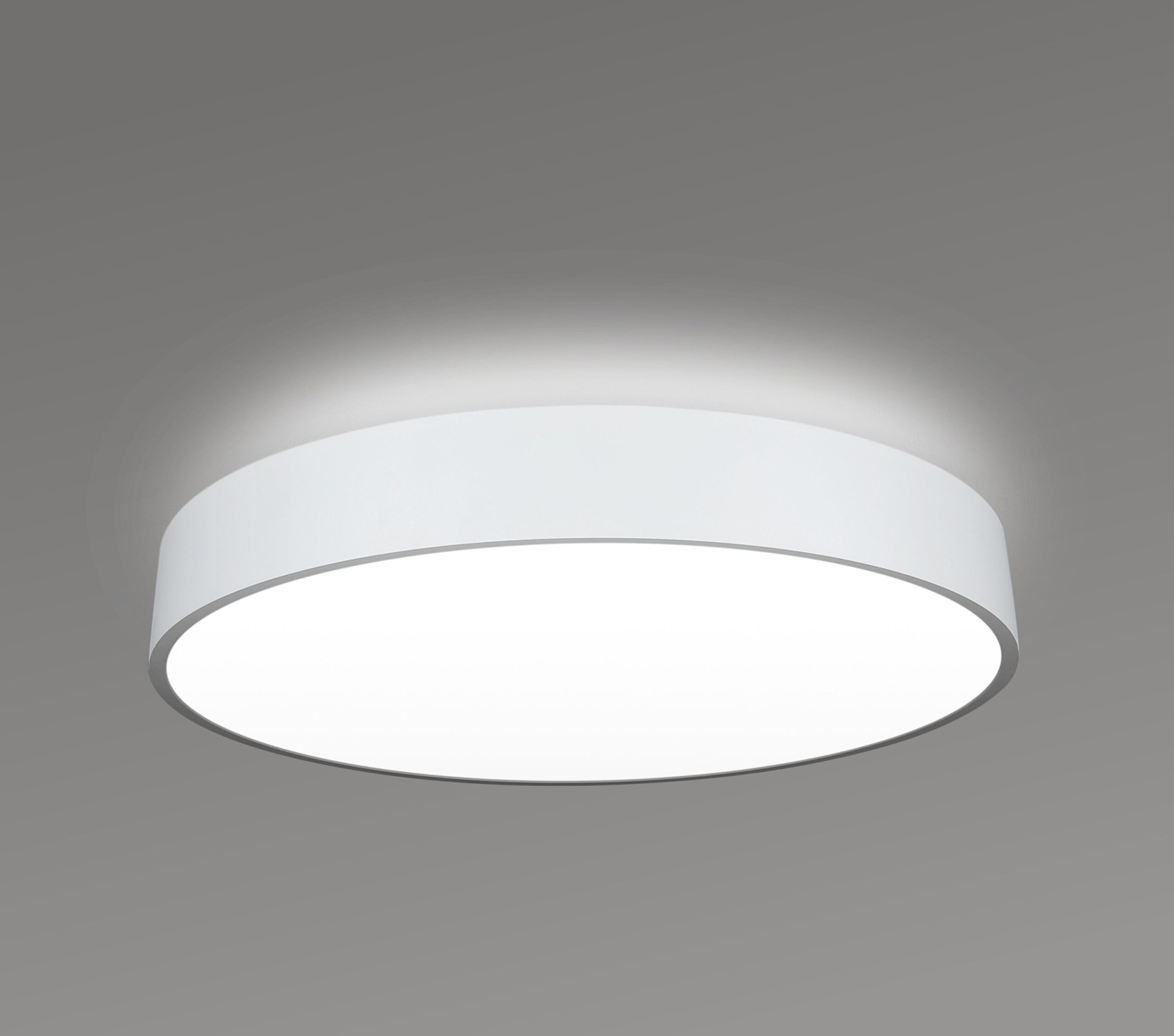

Moon Series

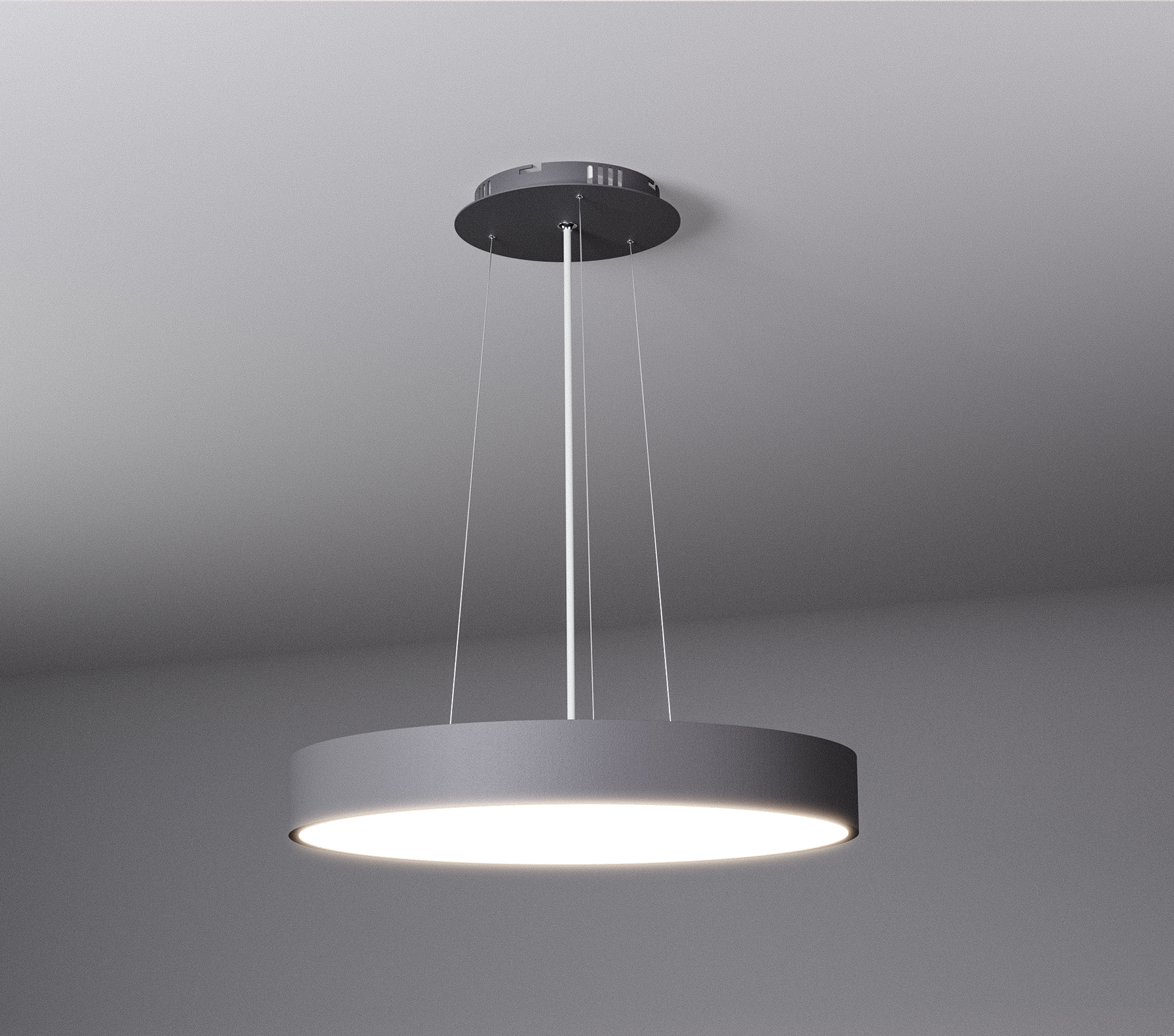

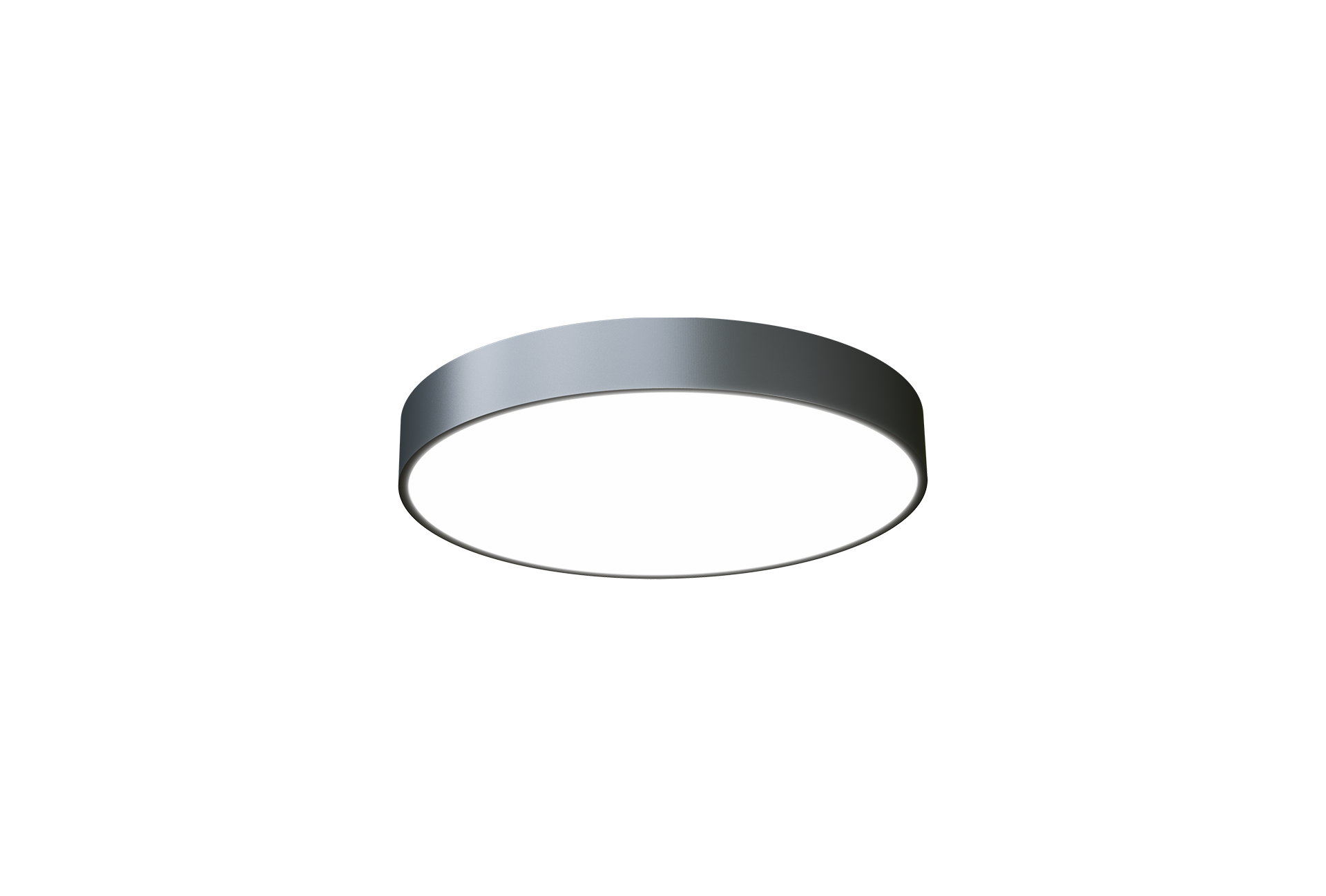

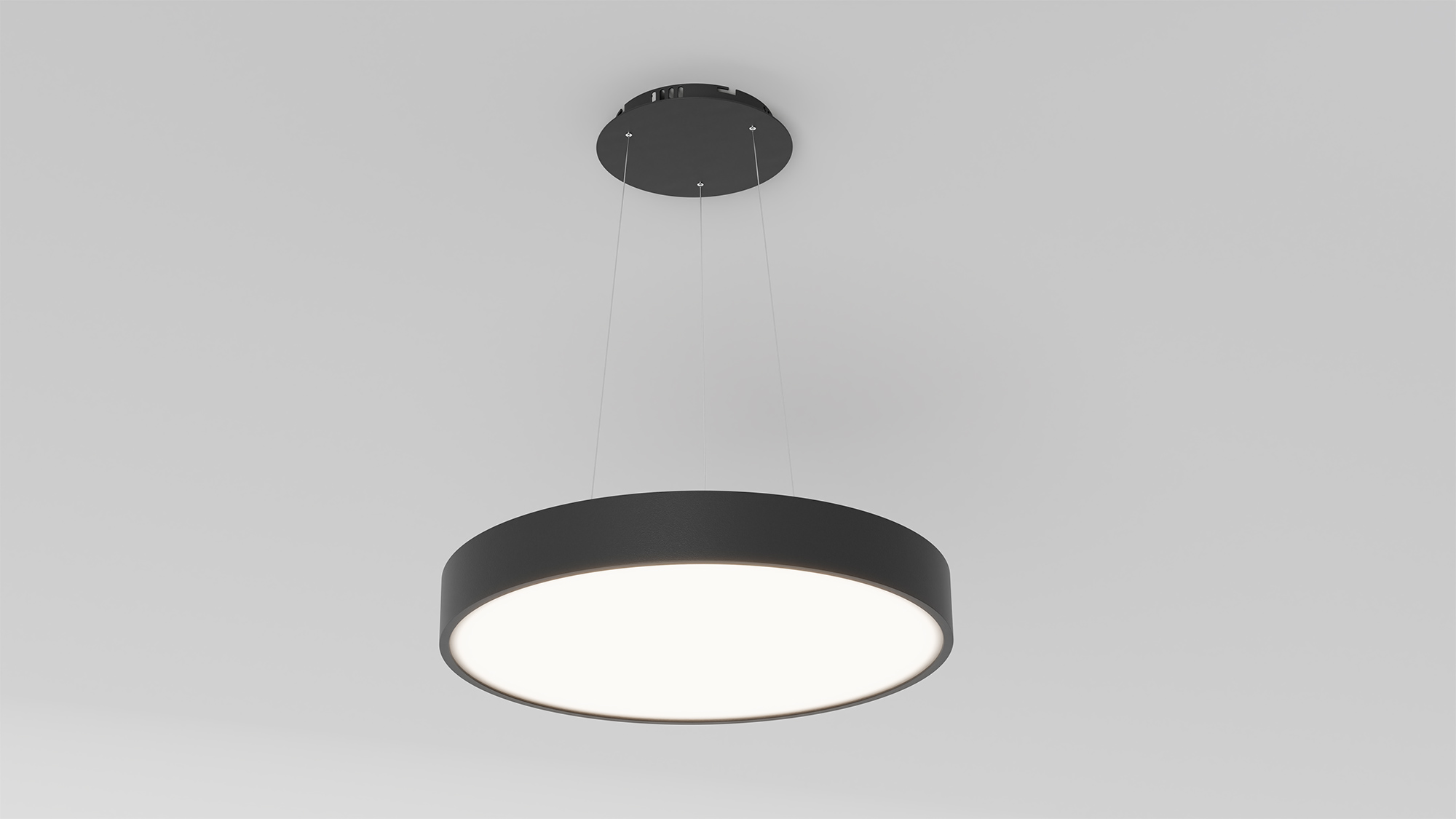

The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.

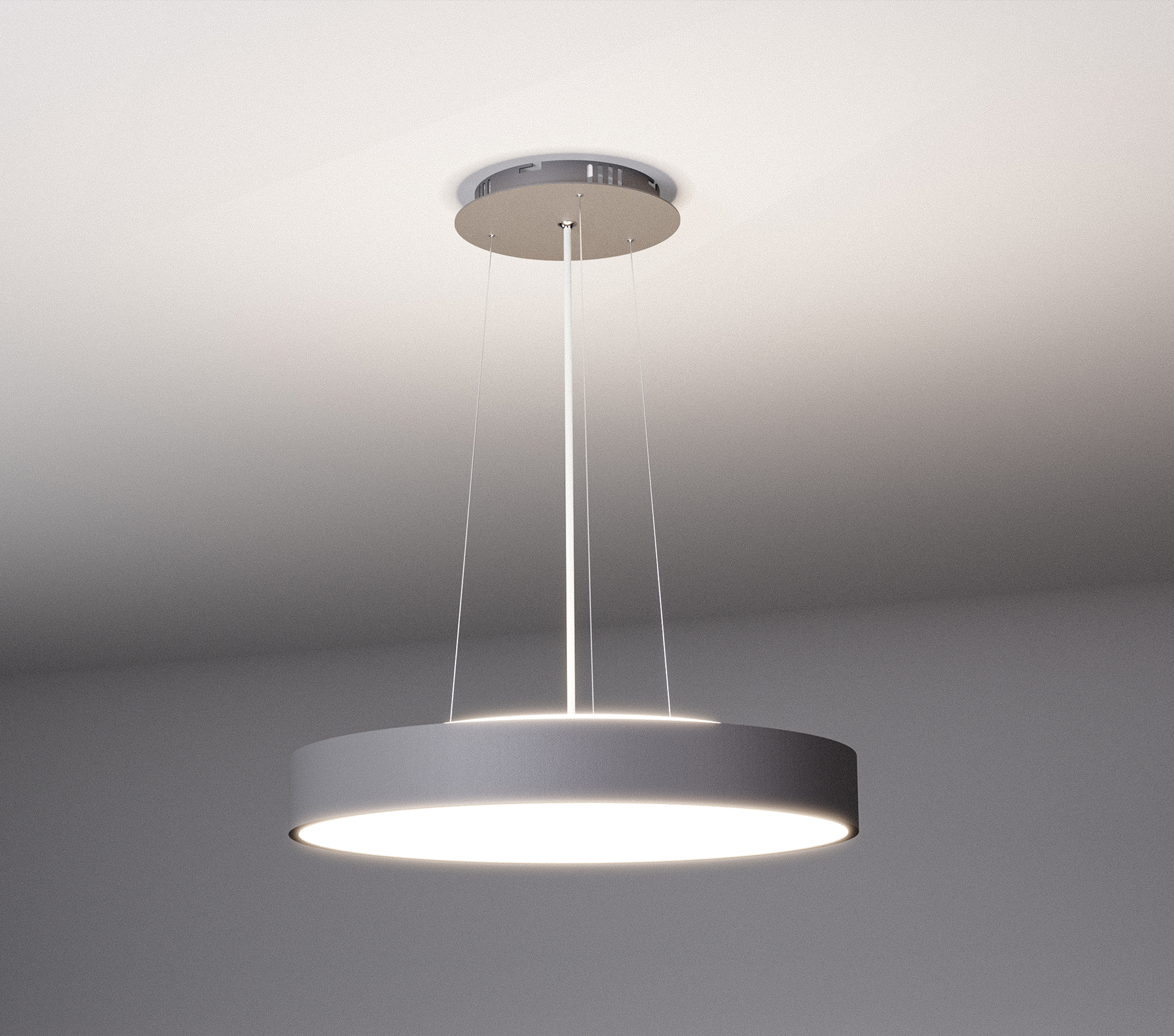

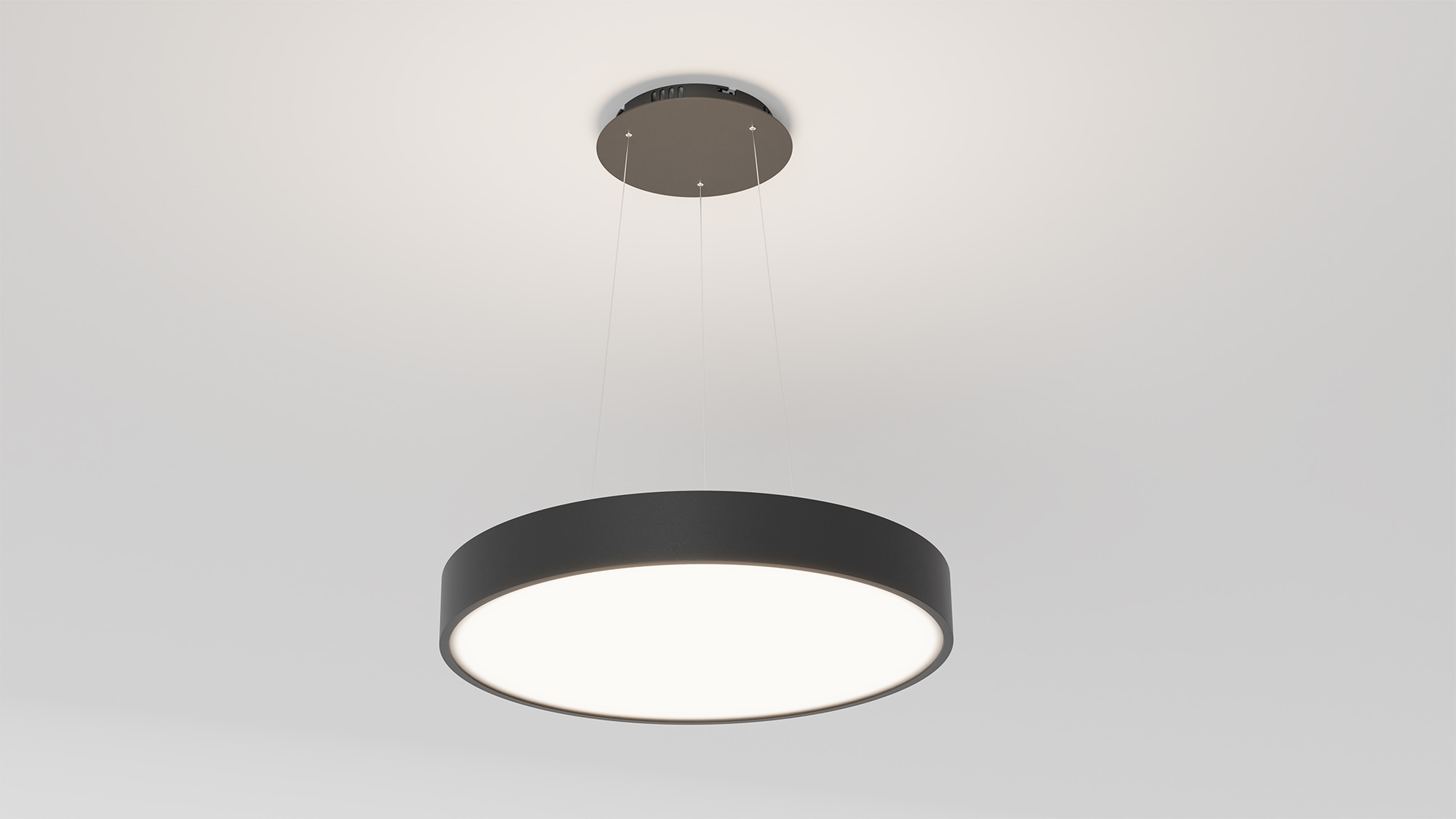

The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct/Indirect configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
| Model | Diameter | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-MS-D-11-LO-30-U-S | 11.8" | Low | 3000K | 15W | 1275Lm |
| TECHOLED-MS-D-11-ME-30-U-S | 11.8" | Medium | 3000K | 15W | 1275Lm |
| TECHOLED-MS-D-11-HI-30-U-S | 11.8" | High | 3000K | 20W | 1700Lm |
| TECHOLED-MS-D-15-LO-30-U-S | 15.7'' | Low | 3000K | 15W | 1275Lm |
| TECHOLED-MS-D-15-ME-30-U-S | 15.7'' | Medium | 3000K | 20W | 1700Lm |
| TECHOLED-MS-D-15-HI-30-U-S | 15.7'' | High | 3000K | 30W | 2550Lm |
| TECHOLED-MS-D-18-LO-30-U-S | 18.9'' | Low | 3000K | 15W | 1275Lm |
| TECHOLED-MS-D-18-ME-30-U-S | 18.9'' | Medium | 3000K | 25W | 2125Lm |
| TECHOLED-MS-D-18-HI-30-U-S | 18.9'' | High | 3000K | 40W | 3400Lm |
| TECHOLED-MS-D-23-LO-30-U-S | 23.6'' | Low | 3000K | 25W | 2125Lm |
| TECHOLED-MS-D-23-ME-30-U-S | 23.6'' | Medium | 3000K | 40W | 3400Lm |
| TECHOLED-MS-D-23-HI-30-U-S | 23.6'' | High | 3000K | 60W | 5100Lm |
| TECHOLED-MS-D-35-LO-30-U-S | 35.4'' | Low | 3000K | 50W | 4250Lm |
| TECHOLED-MS-D-35-ME-30-U-S | 35.4'' | Medium | 3000K | 90W | 7650Lm |
| TECHOLED-MS-D-35-HI-30-U-S | 35.4'' | High | 3000K | 135W | 11475Lm |
| TECHOLED-MS-D-47-LO-30-U-S | 47.2'' | Low | 3000K | 80W | 6800Lm |
| TECHOLED-MS-D-47-ME-30-U-S | 47.2'' | Medium | 3000K | 150W | 12750Lm |
| TECHOLED-MS-D-47-HI-30-U-S | 47.2'' | High | 3000K | 200W | 17000Lm |
| Model | Diameter | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-DI-MS-DI-18-LO-30-U-S | 18.9" | Low | 3000K | 40W | 2125Lm | 1275Lm |
| TECHOLED-DI-MS-DI-18-ME-30-U-S | 18.9" | Medium | 3000K | 50W | 2550Lm | 1700Lm |
| TECHOLED-DI-MS-DI-18-HI-30-U-S | 18.9" | High | 3000K | 80W | 4675Lm | 2125Lm |
| TECHOLED-DI-MS-DI-23-LO-30-U-S | 23.6'' | Low | 3000K | 40W | 2125Lm | 1275Lm |
| TECHOLED-DI-MS-DI-23-ME-30-U-S | 23.6'' | Medium | 3000K | 80W | 4250Lm | 2550Lm |
| TECHOLED-DI-MS-DI-23-HI-30-U-S | 23.6'' | High | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-DI-MS-DI-35-LO-30-U-S | 35.4'' | Low | 3000K | 65W | 3400Lm | 2125Lm |
| TECHOLED-DI-MS-DI-35-ME-30-U-S | 35.4'' | Medium | 3000K | 120W | 6800Lm | 3400Lm |
| TECHOLED-DI-MS-DI-35-HI-30-U-S | 35.4'' | High | 3000K | 150W | 8500Lm | 4250Lm |
| TECHOLED-DI-MS-DI-47-LO-30-U-S | 47.2'' | Low | 3000K | 105W | 5950Lm | 2975Lm |
| TECHOLED-DI-MS-DI-47-ME-30-U-S | 47.2'' | Medium | 3000K | 150W | 8500Lm | 4250Lm |
| TECHOLED-DI-MS-DI-47-HI-30-U-S | 47.2'' | High | 3000K | 200W | 11050Lm | 5950Lm |
