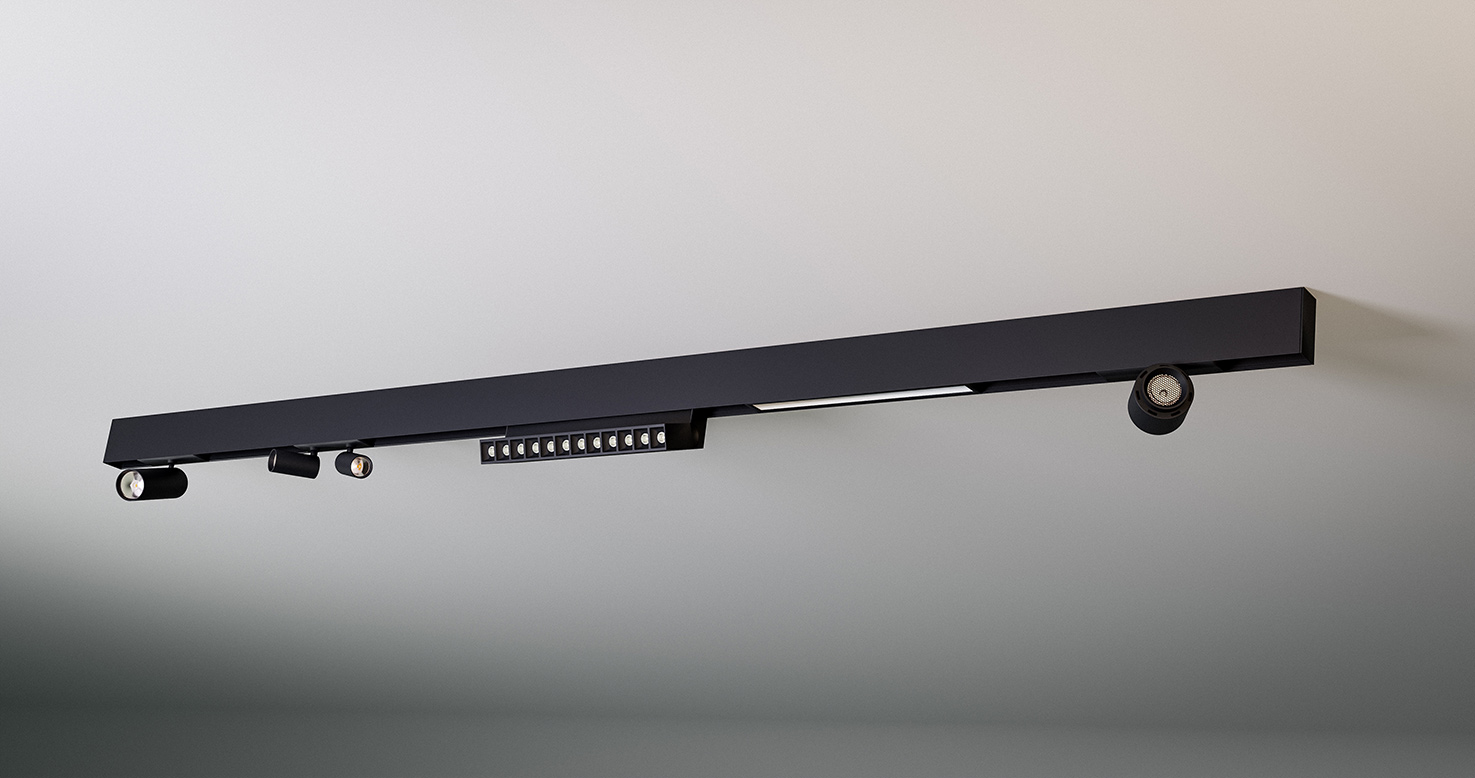

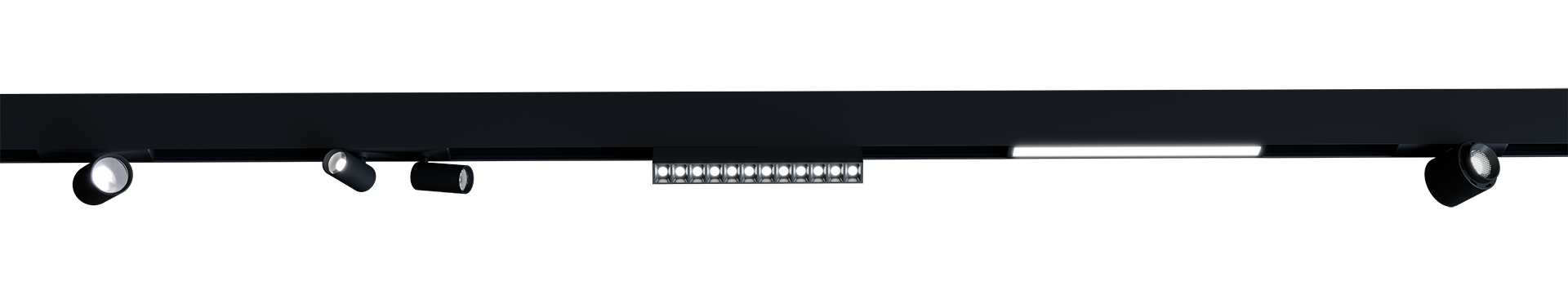

Magnetic Track System

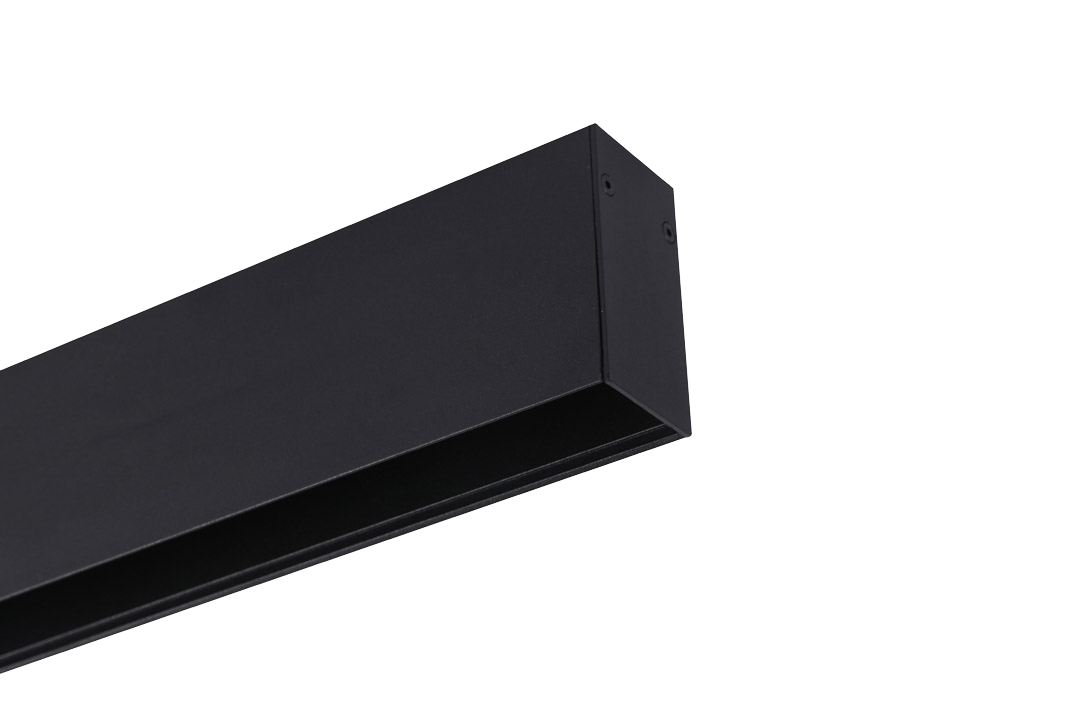

Track

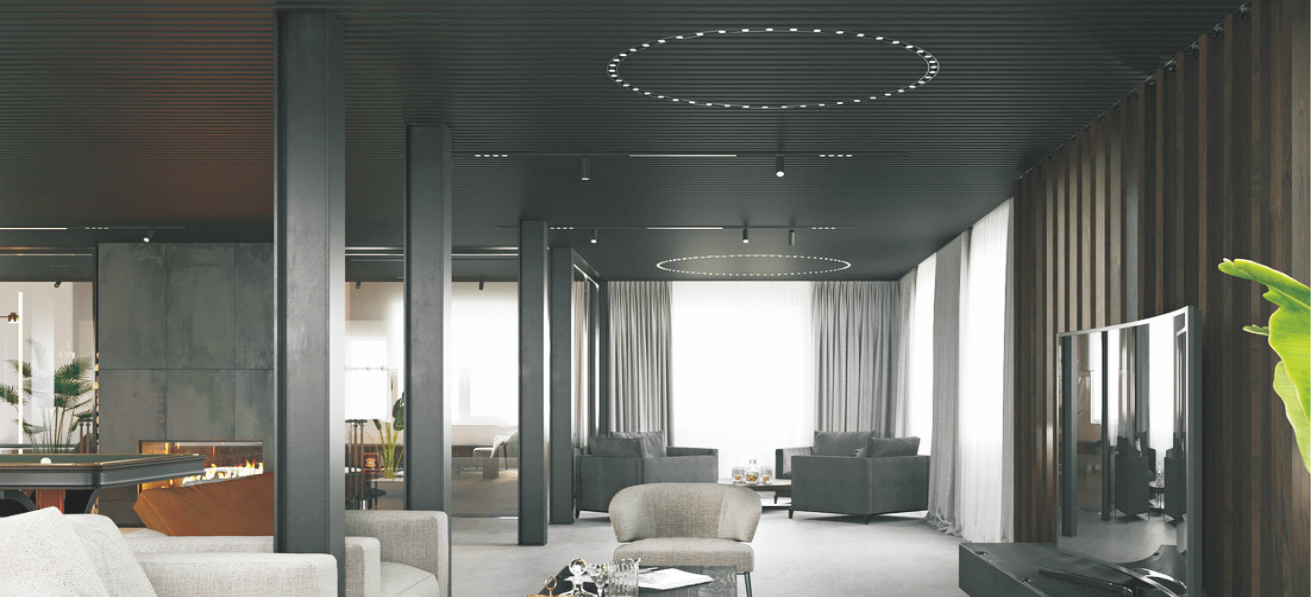

Creative and flexible architectural solution. Recessed, surface mount, and pendant tracks are made from high grade aluminum extrusions and are field cuttable. Light components, ranging from solid linear, louvre, wall washer to adjustable spotlights and pendant cylinders snap in the track magnetically and can be repositioned by hand, without tools. Great for interior retail, hospitality, office, and residential applications.
• 24V DC
• Remote Driver, Maximum 100W Load Per Driver
• 0-10V/Dali Dimming
• 5-Year Limited Warranty
• Osram/Cree LED Chips

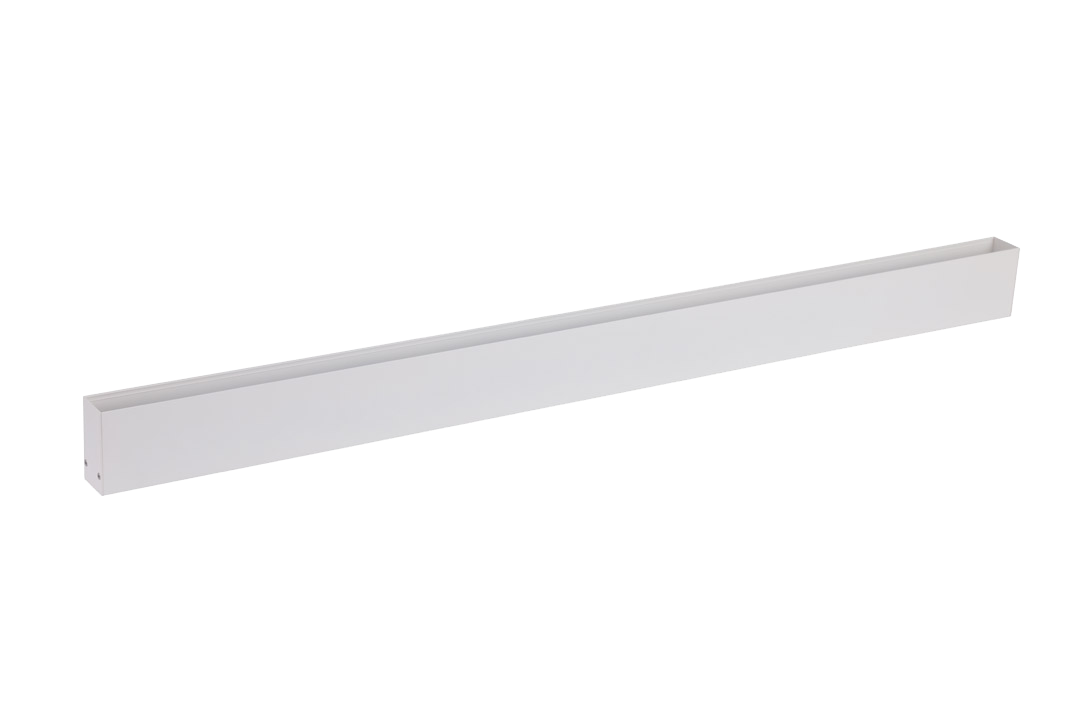

• High Grade Aluminum Extrusion Track

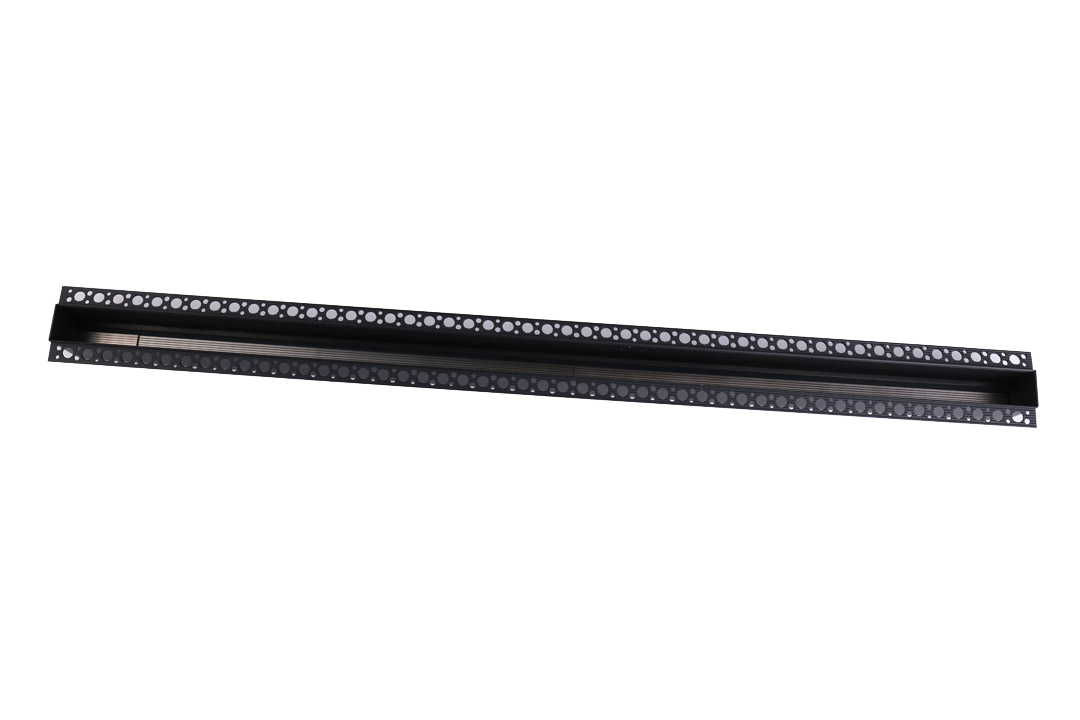

• Recessed (mud-in), Surface Mount, Pendant

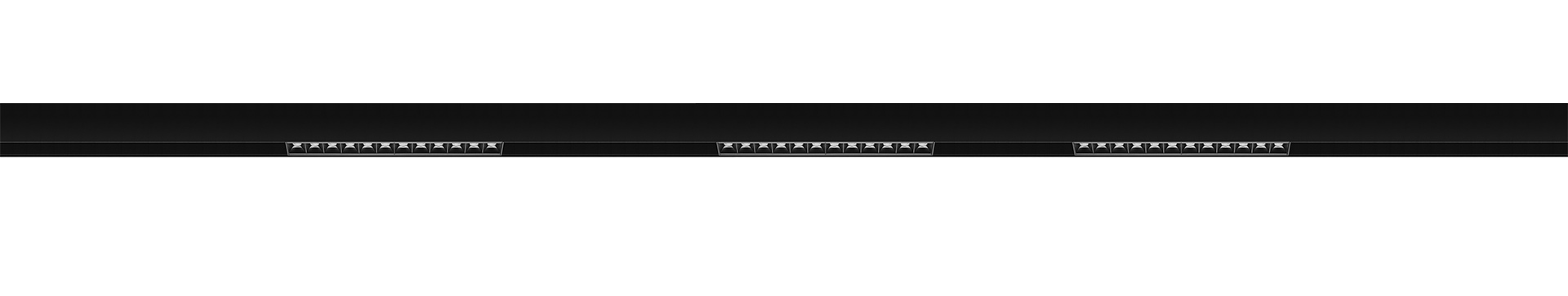

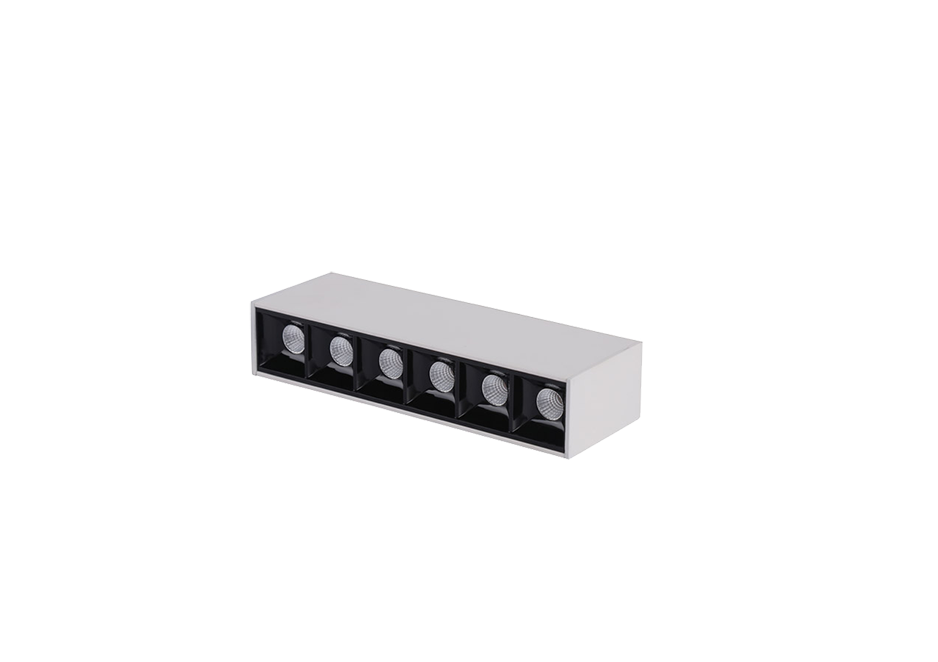

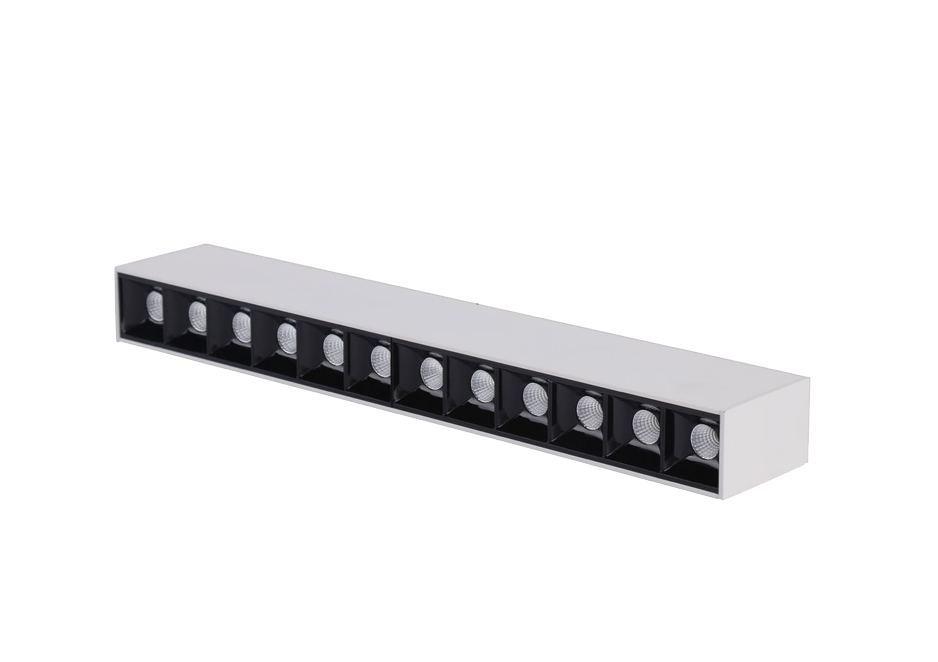

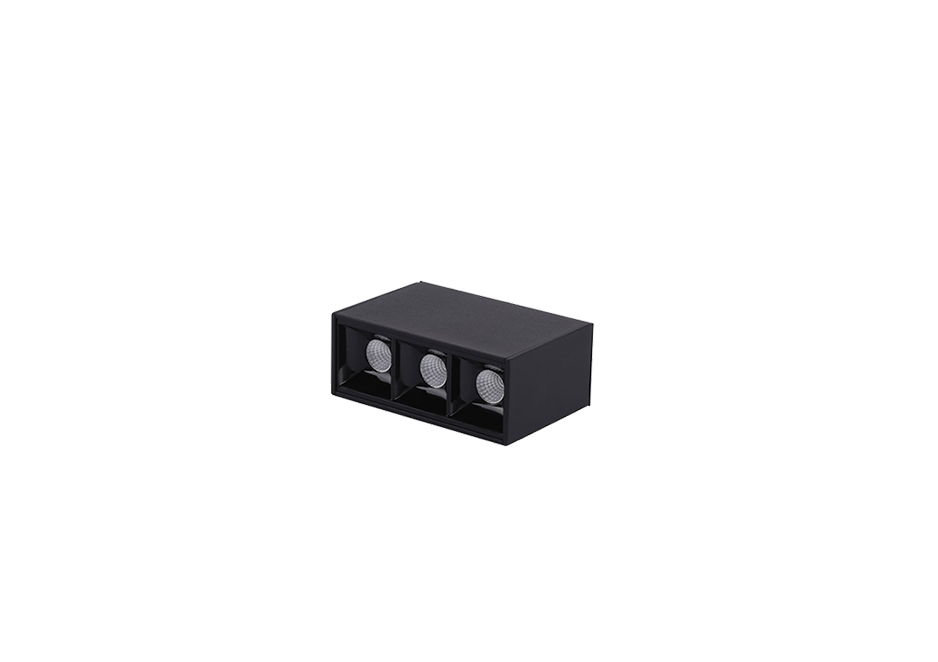

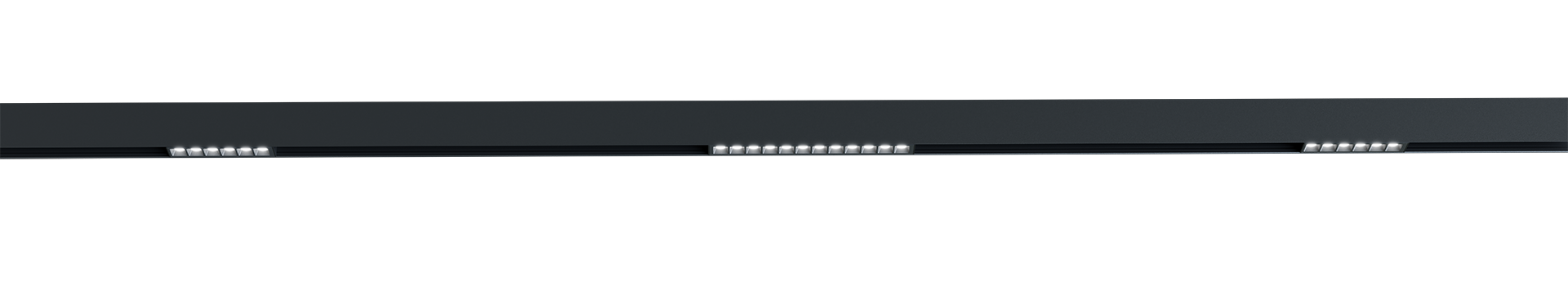

Louvre Linear Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-LL-4 | Osram | 4W | 320Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 2.16x1.33x3.28” | 0-10V/Dali |
| TECHOLED-MT-LL-8 | Osram | 8W | 640Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 2.16x1.33x6.43” | 0-10V/Dali |
| TECHOLED-MT-LL-16 | Osram | 16W | 1280Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 2.16x1.33x12.71” | 0-10V/Dali |

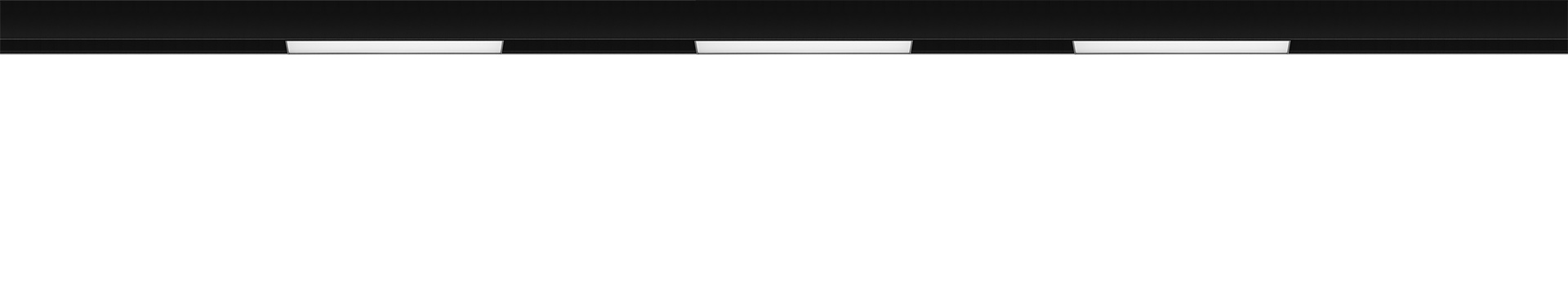

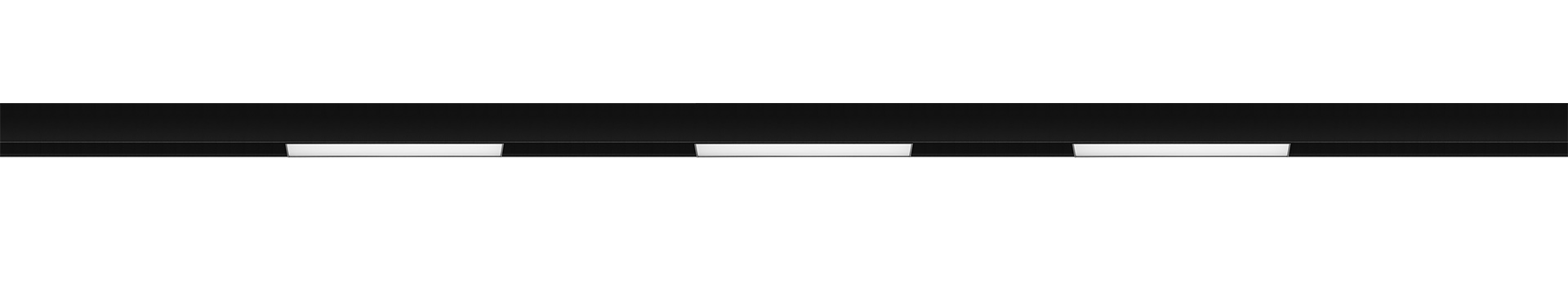

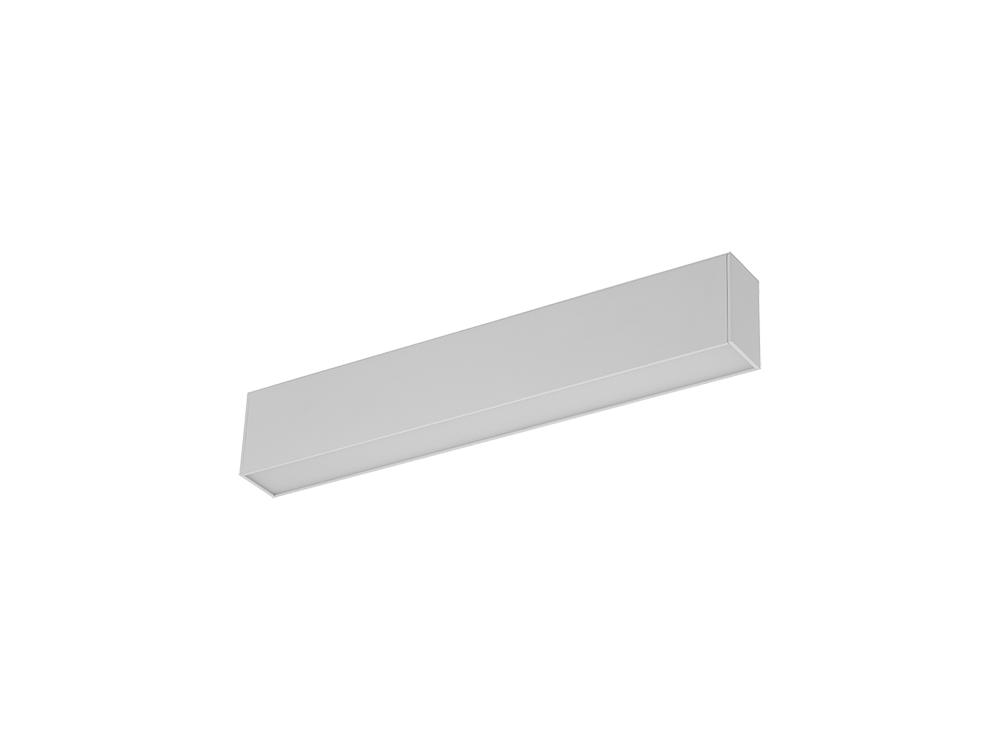

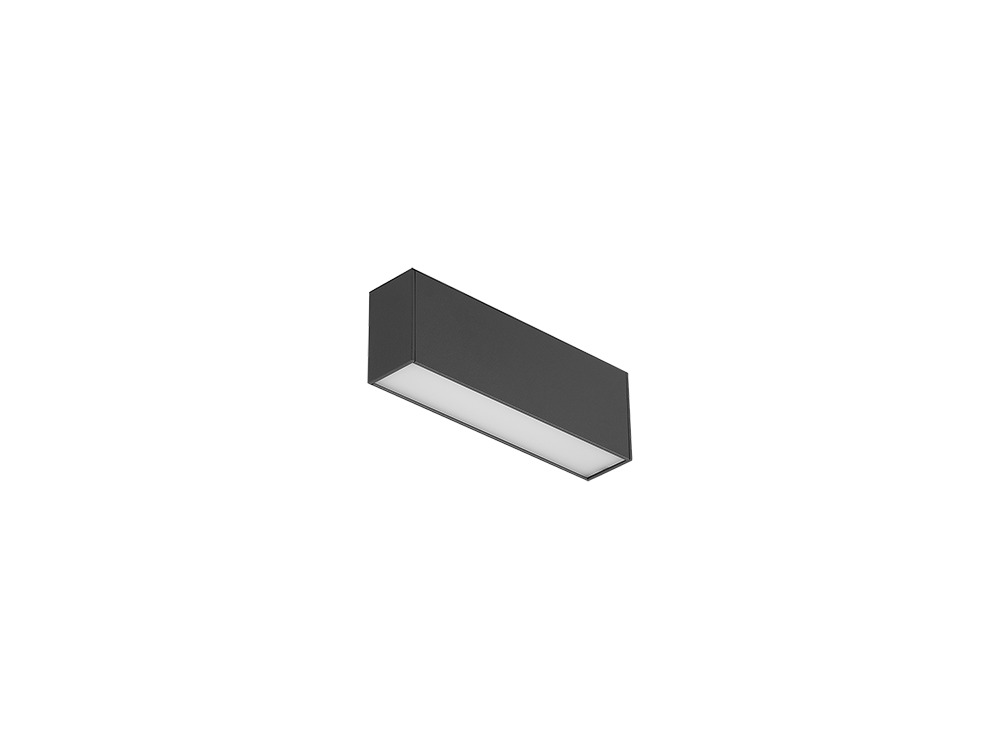

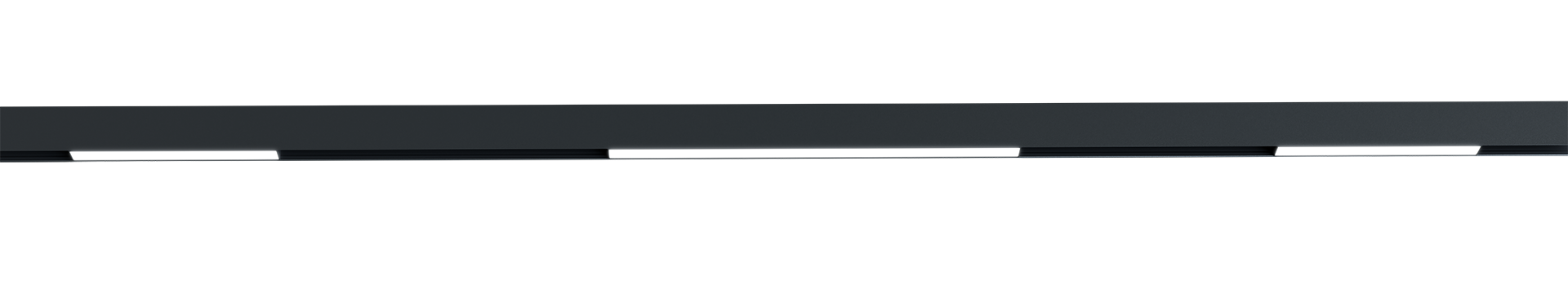

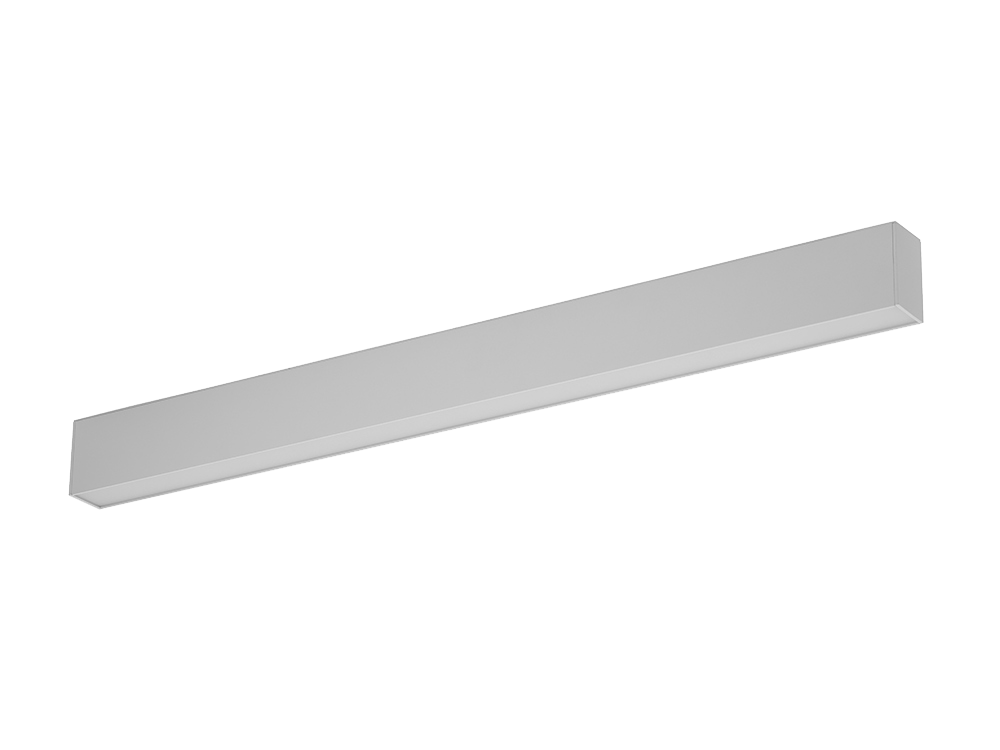

Solid Linear Module
GENERAL: Magnetic Track System With “Snap-In” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED chips, 2700-5000K, Dim to Warm and Tunable White Available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-SL-13 | Osram | 13W | 780Lm | 110° | 90+ | 2700- 5000K | Black/White | 2.12x1.33x12.6” | 0-10V/Dali |
| TECHOLED-MT-SL-26 | Osram | 26W | 1600Lm | 110° | 90+ | 2700- 5000K | Black/White | 2.12x1.33x25.19” | 0-10V/Dali |
| TECHOLED-MT-SL-39 | Osram | 39W | 2500Lm | 110° | 90+ | 2700- 5000K | Black/White | 2.12x1.33x37.71” | 0-10V/Dali |

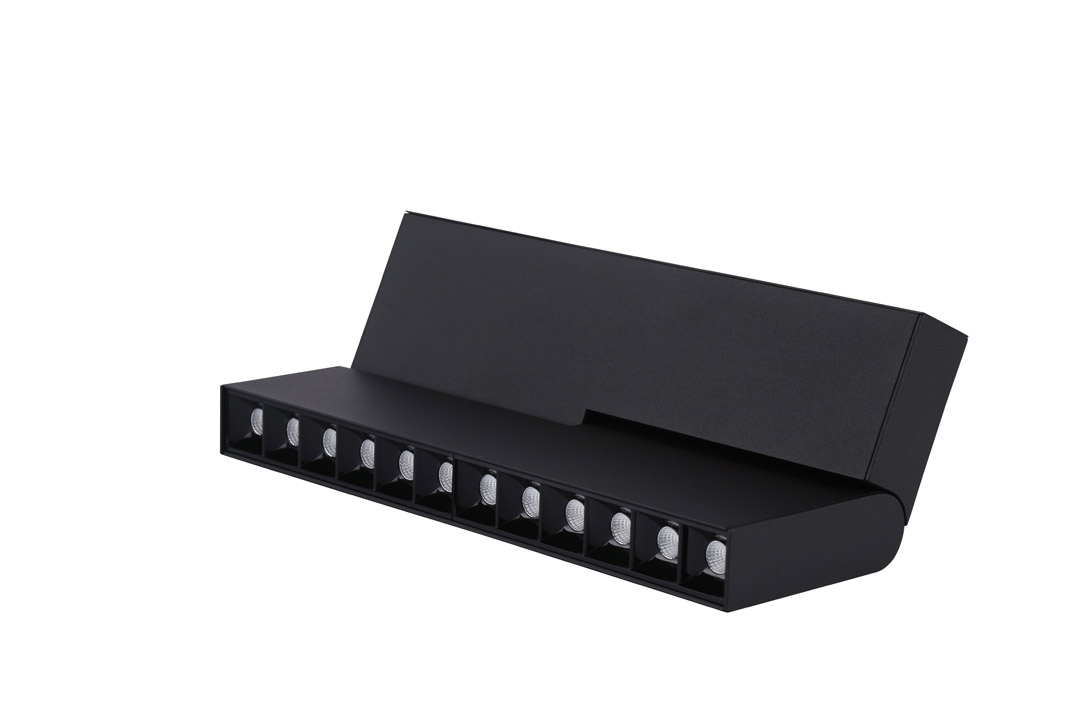

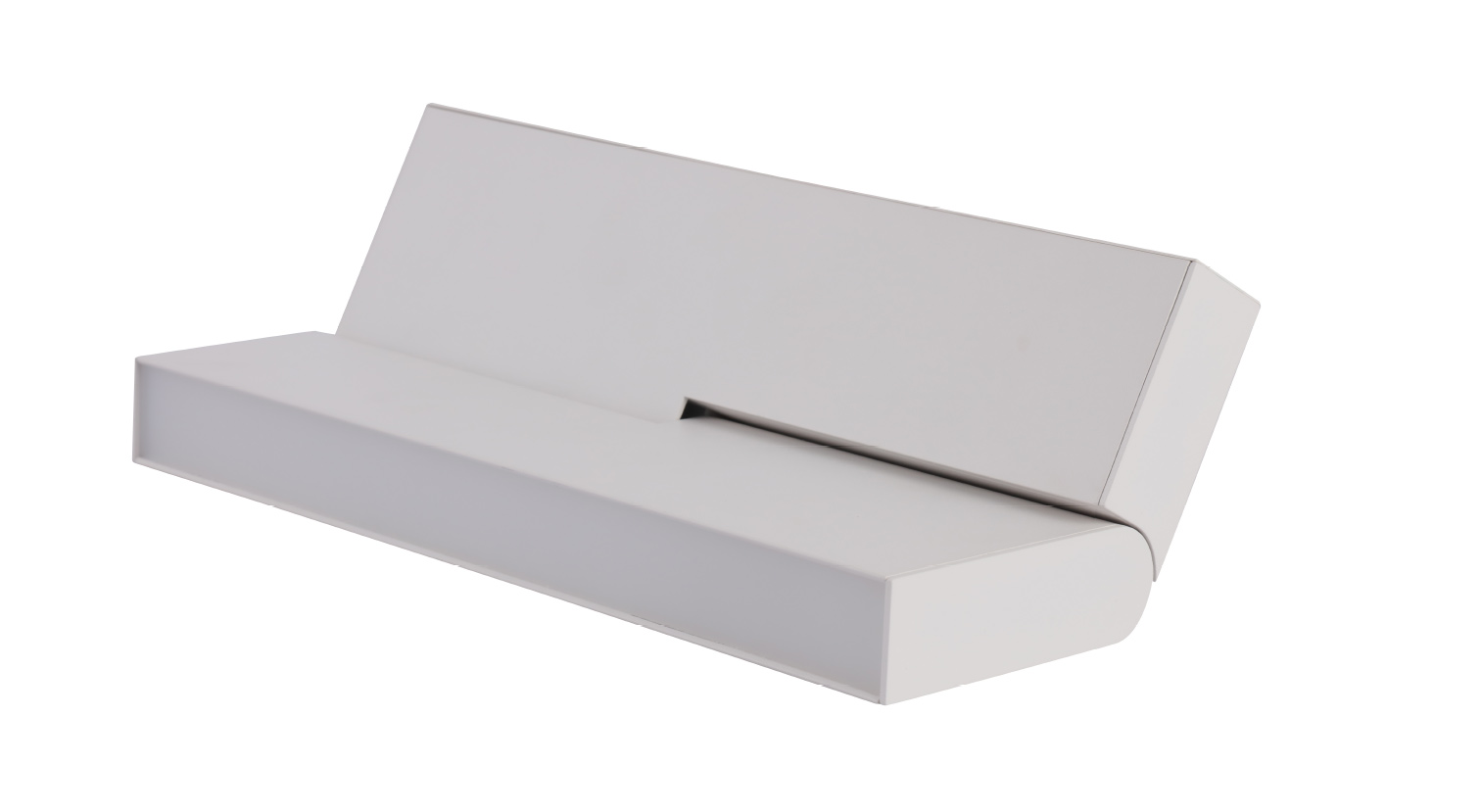

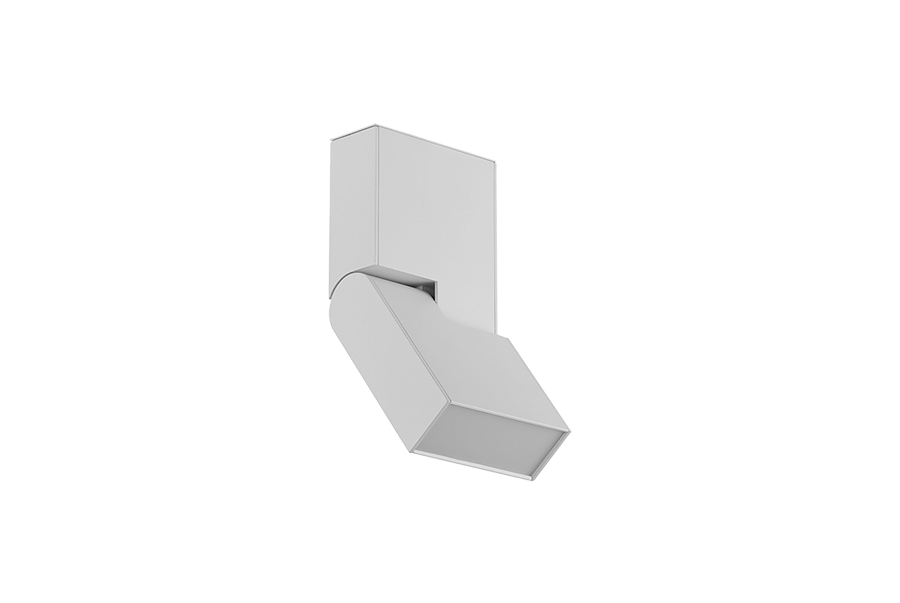

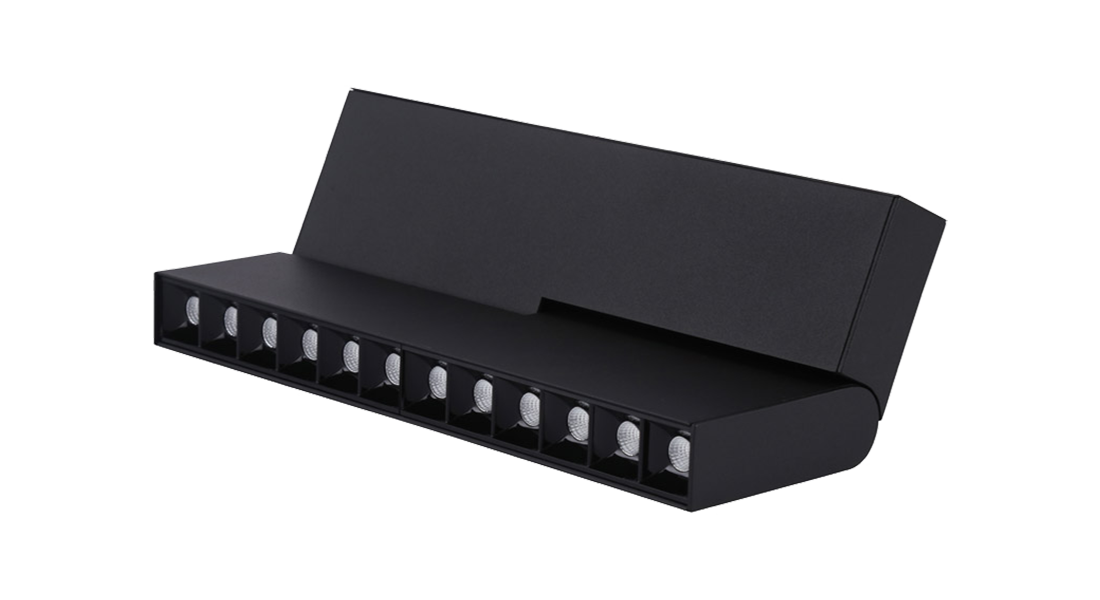

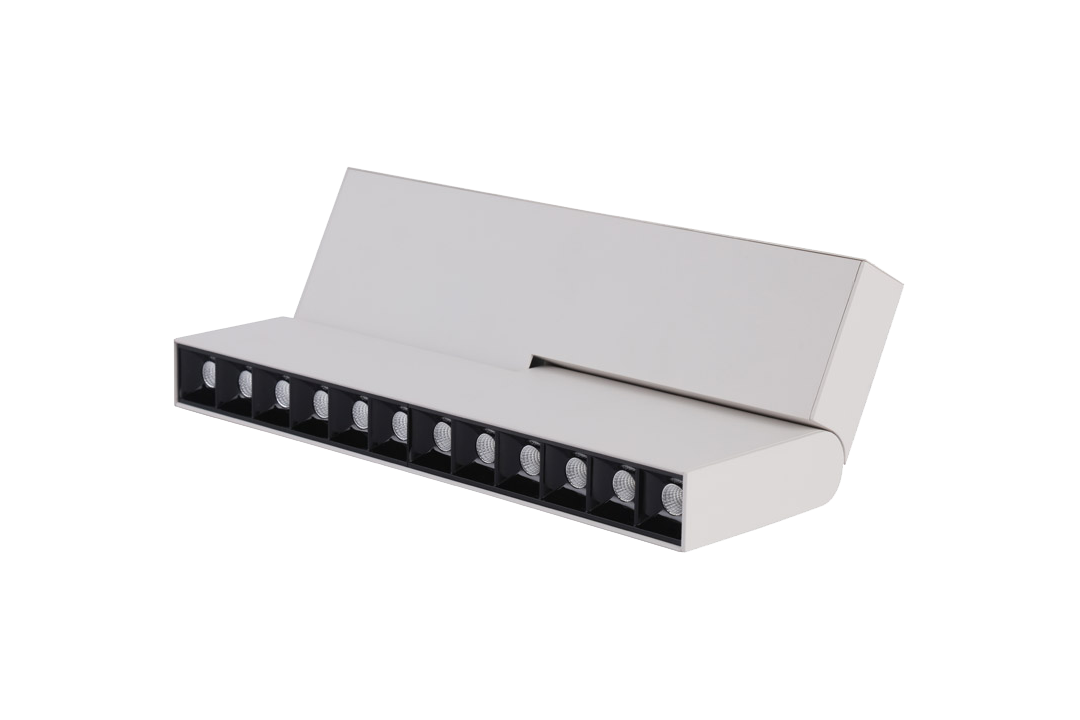

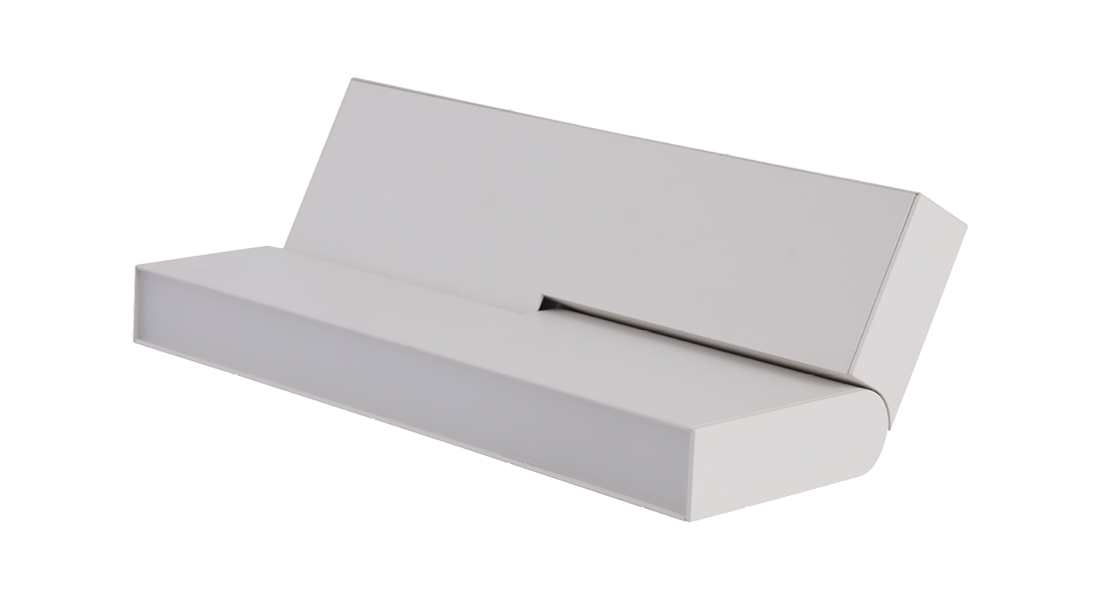

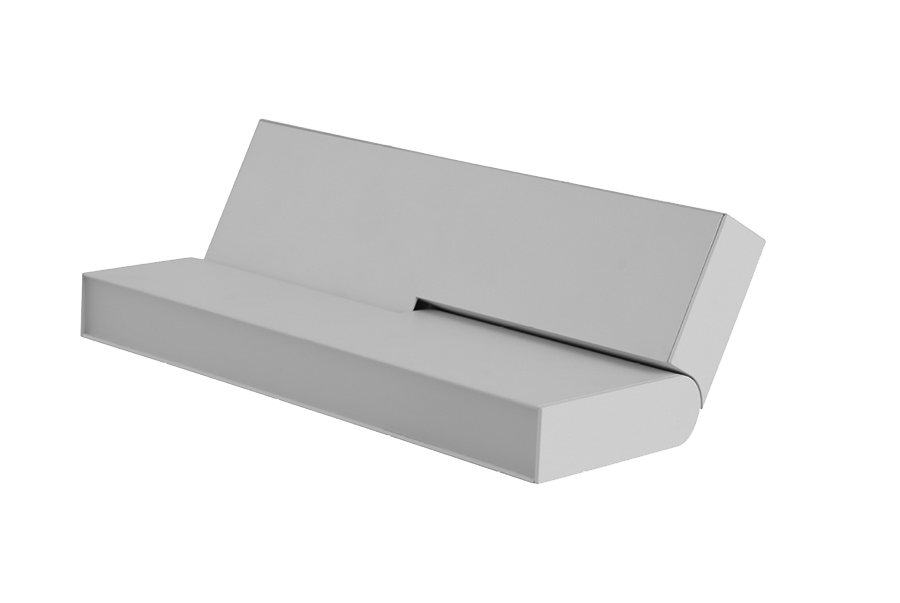

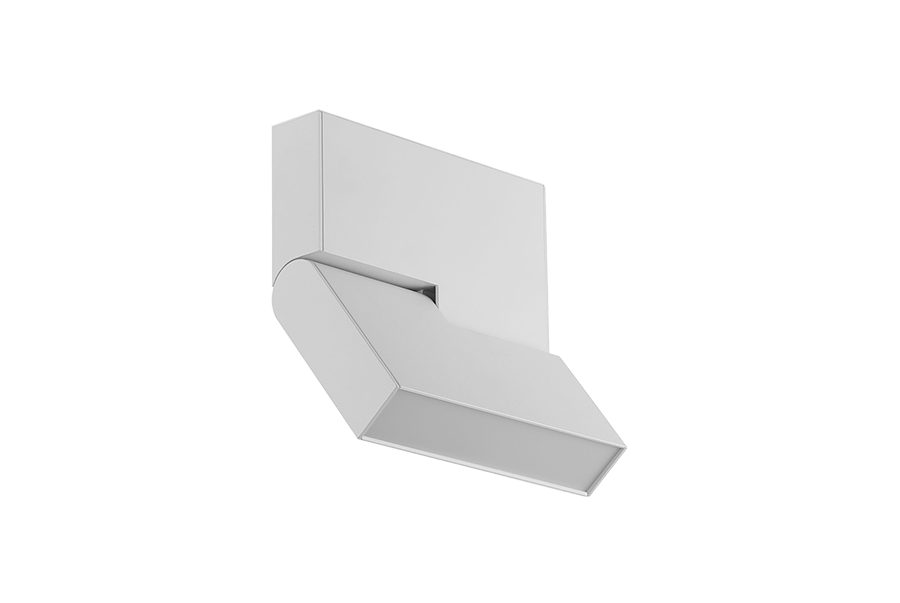

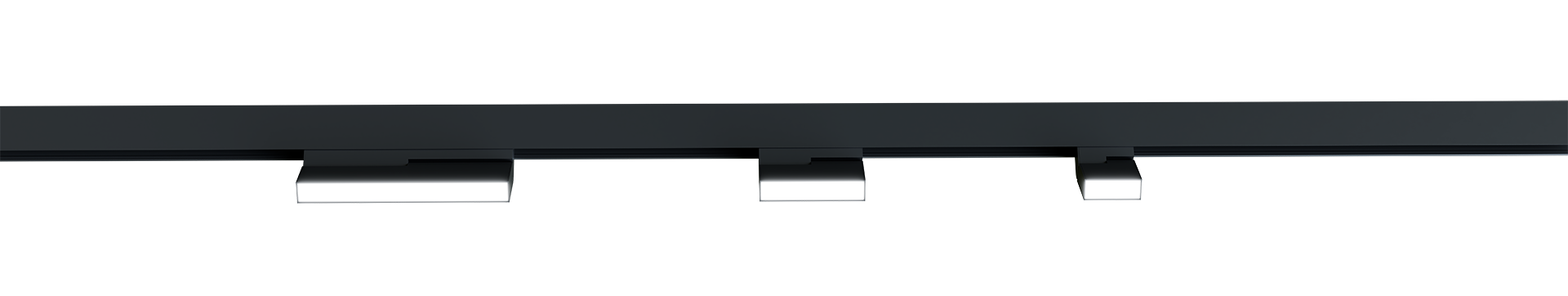

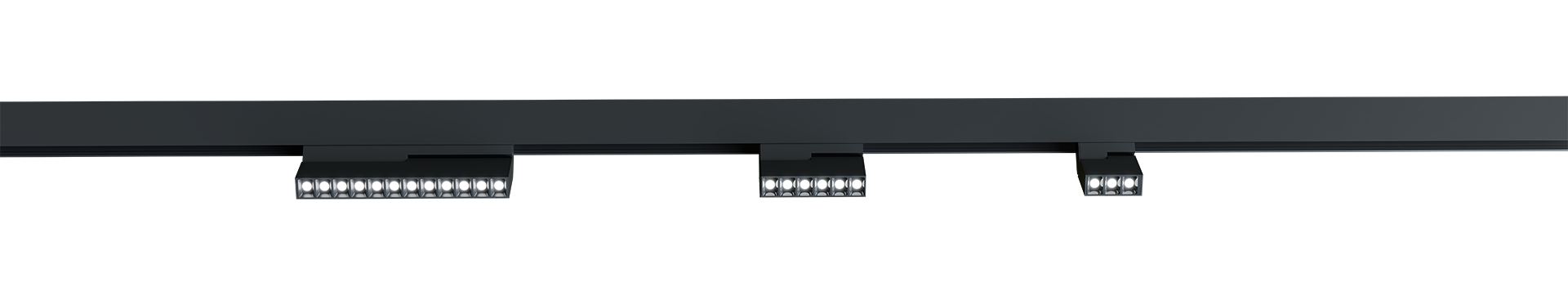

Adjustable Linear Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-AL-L-4 | Osram | 4W | 320Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 3.3x1.33x6.96” | 0-10V/Dali |
| TECHOLED-MT-AL-L-8 | Osram | 8W | 640Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 6.3x1.33x6.96” | 0-10V/Dali |
| TECHOLED-MT-AL-L-16 | Osram | 16W | 1280Lm | 12°/34°/48° | 90+ | 2700- 5000K | Black/White | 12.6x1.33x6.96” | 0-10V/Dali |
| TECHOLED-MT-AL-S-4 | Osram | 4W | 240Lm | 110° | 90+ | 2700- 5000K | Black/White | 3.3x1.33x.6.96” | 0-10V/Dali |
| TECHOLED-MT-AL-S-8 | Osram | 8W | 480Lm | 110° | 90+ | 2700- 5000K | Black/White | 6.3x1.33x6.96” | 0-10V/Dali |
| TECHOLED-MT-AL-S-16 | Osram | 16W | 960Lm | 110° | 90+ | 2700- 5000K | Black/White | 12.6x1.33x6.96” | 0-10V/Dali |

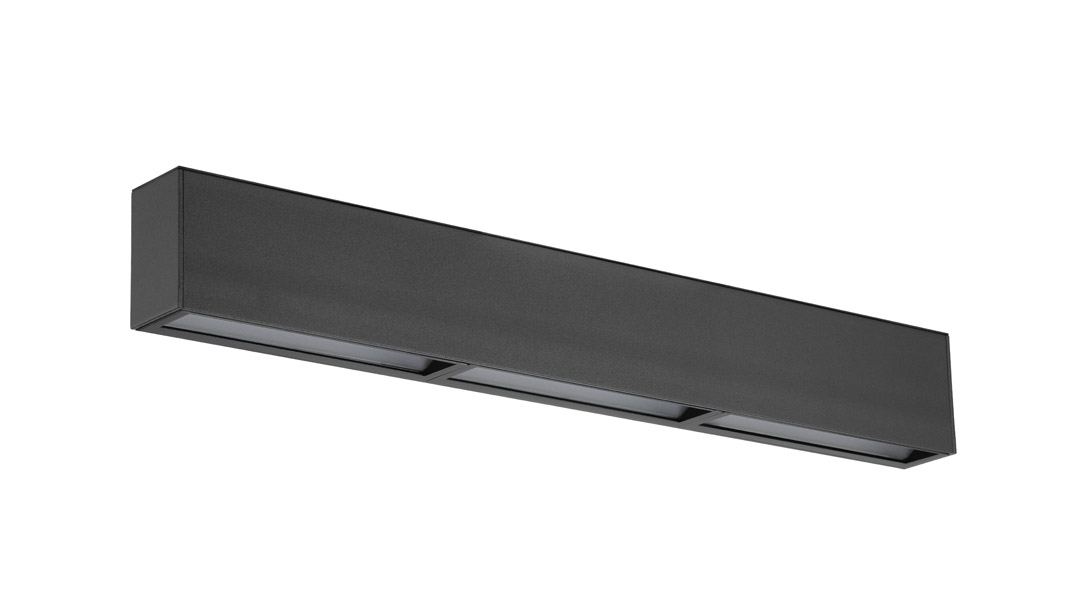

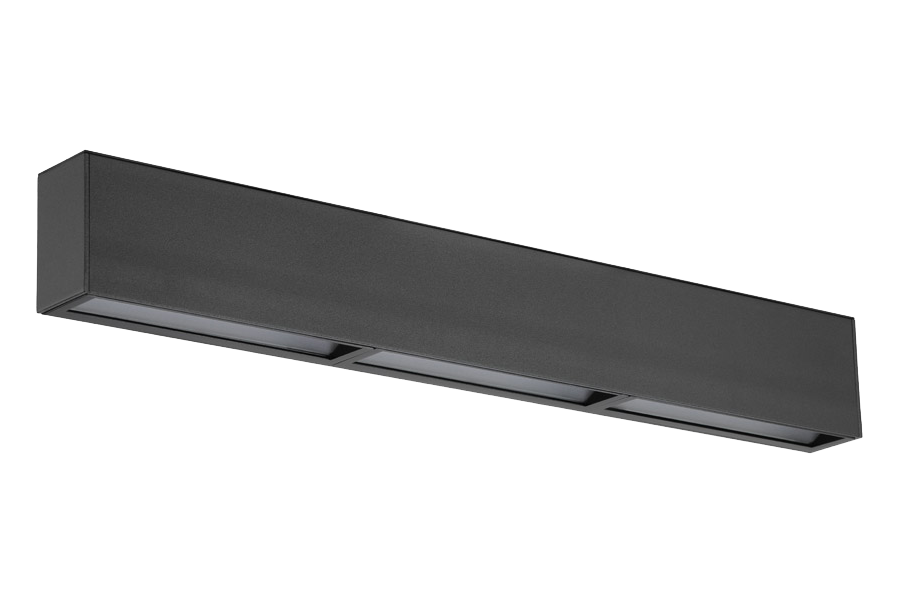

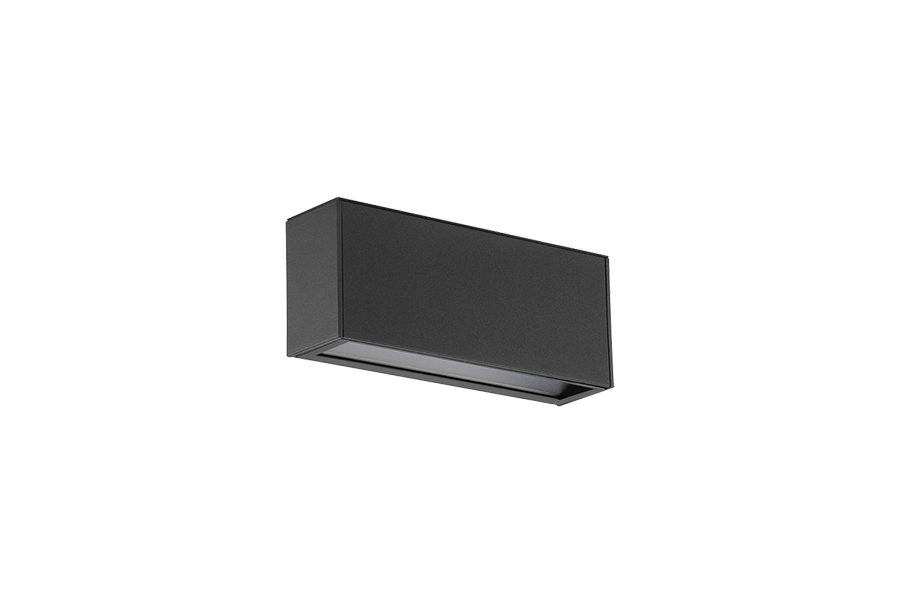

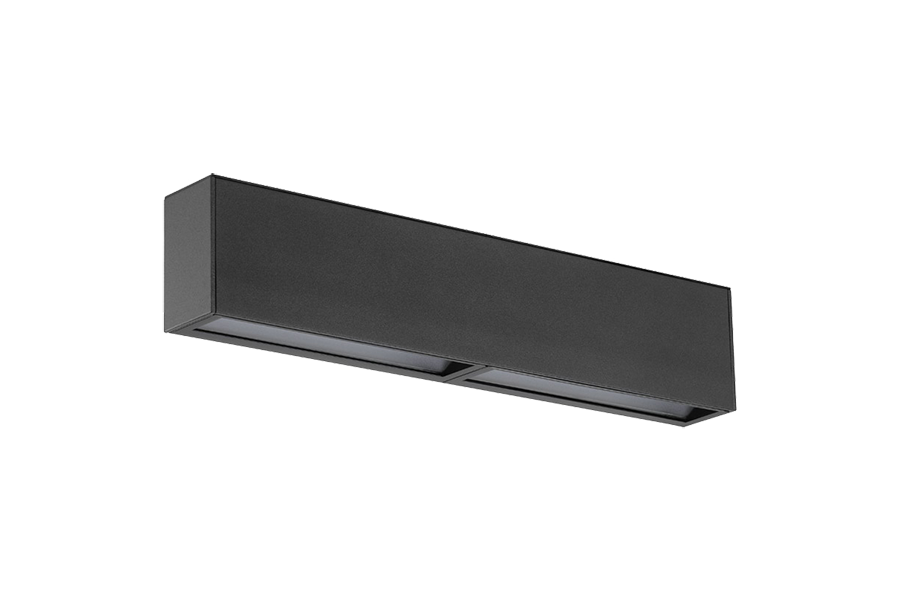

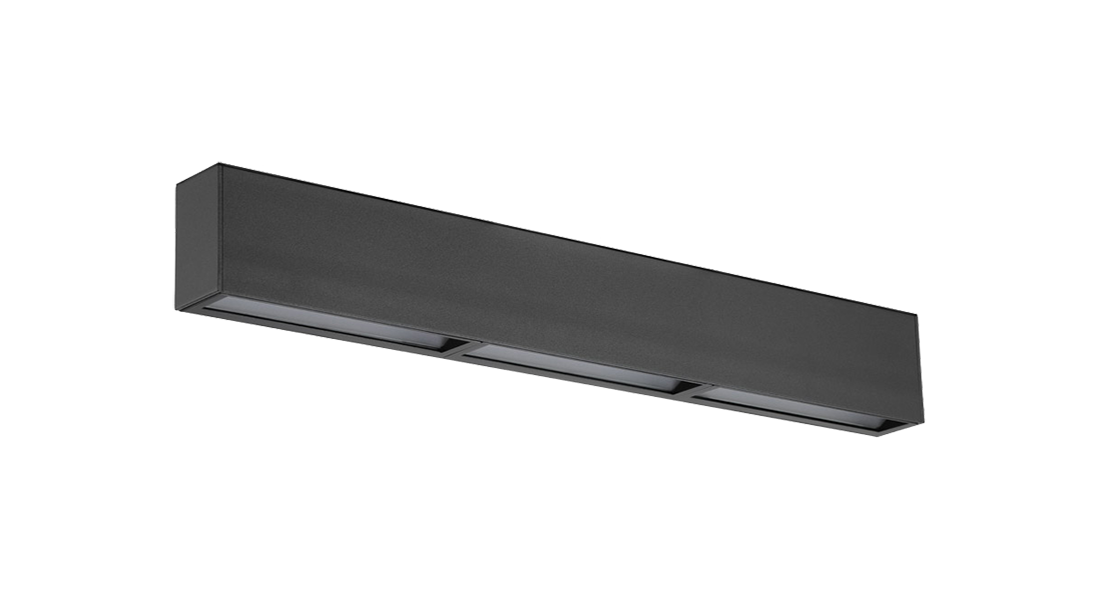

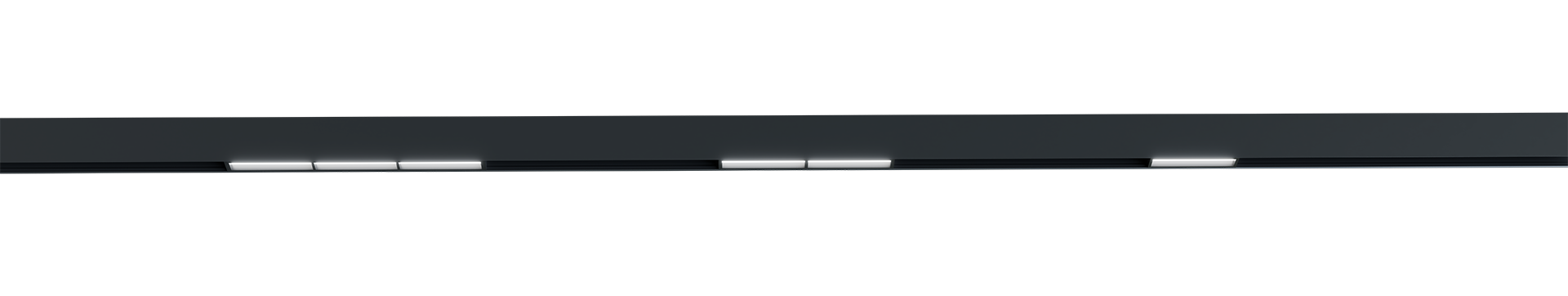

Wall Washer Linear Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant,Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-WW-8 | Osram | 8W | 480Lm | 90+ | 2700- 5000K | Black/White | 2.18x1.33x5.43” | 0-10V/Dali |
| TECHOLED-MT-WW-16 | Osram | 16W | 1055Lm | 90+ | 2700- 5000K | Black/White | 2.18x1.33x10.62” | 0-10V/Dali |
| TECHOLED-MT-WW-24 | Osram | 24W | 1710Lm | 90+ | 2700- 5000K | Black/White | 2.18x1.33x15.75” | 0-10V/Dali |

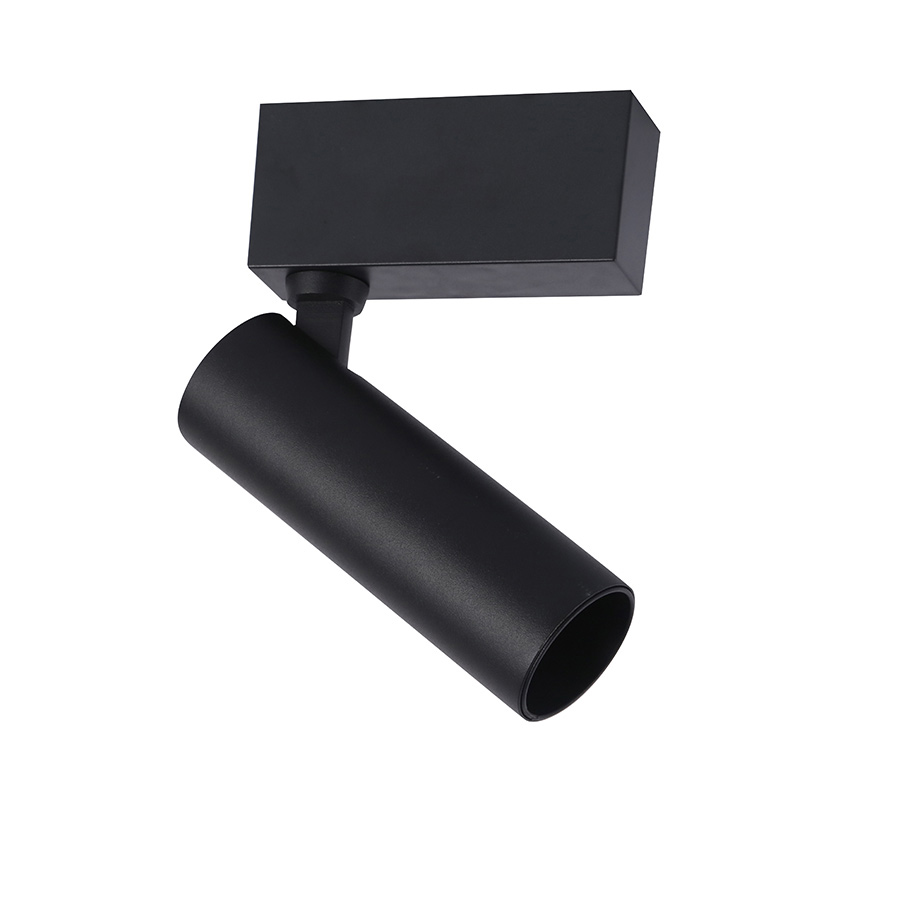

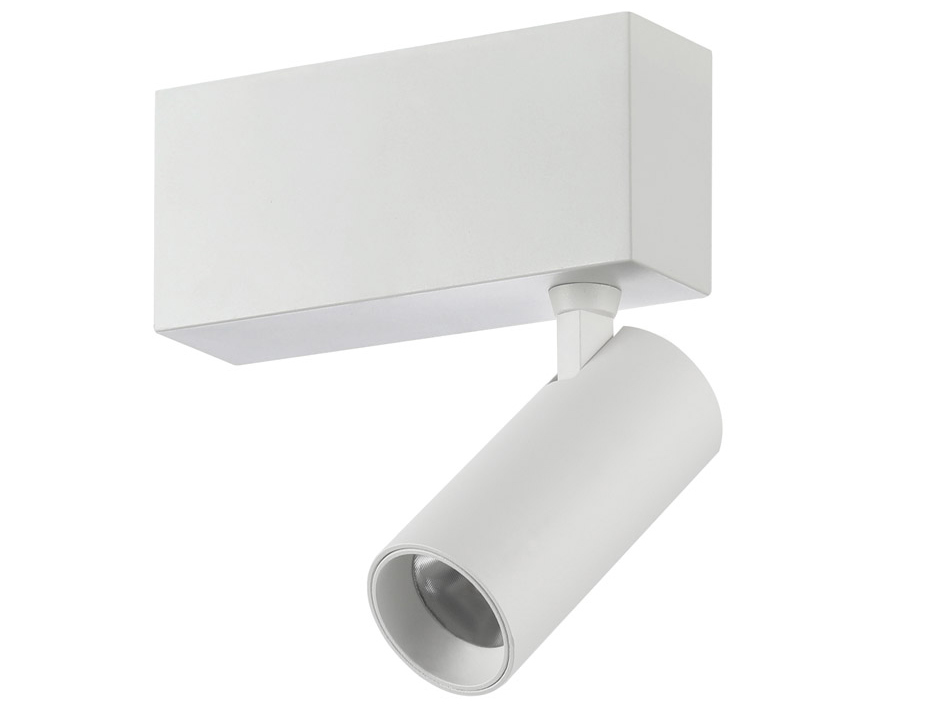

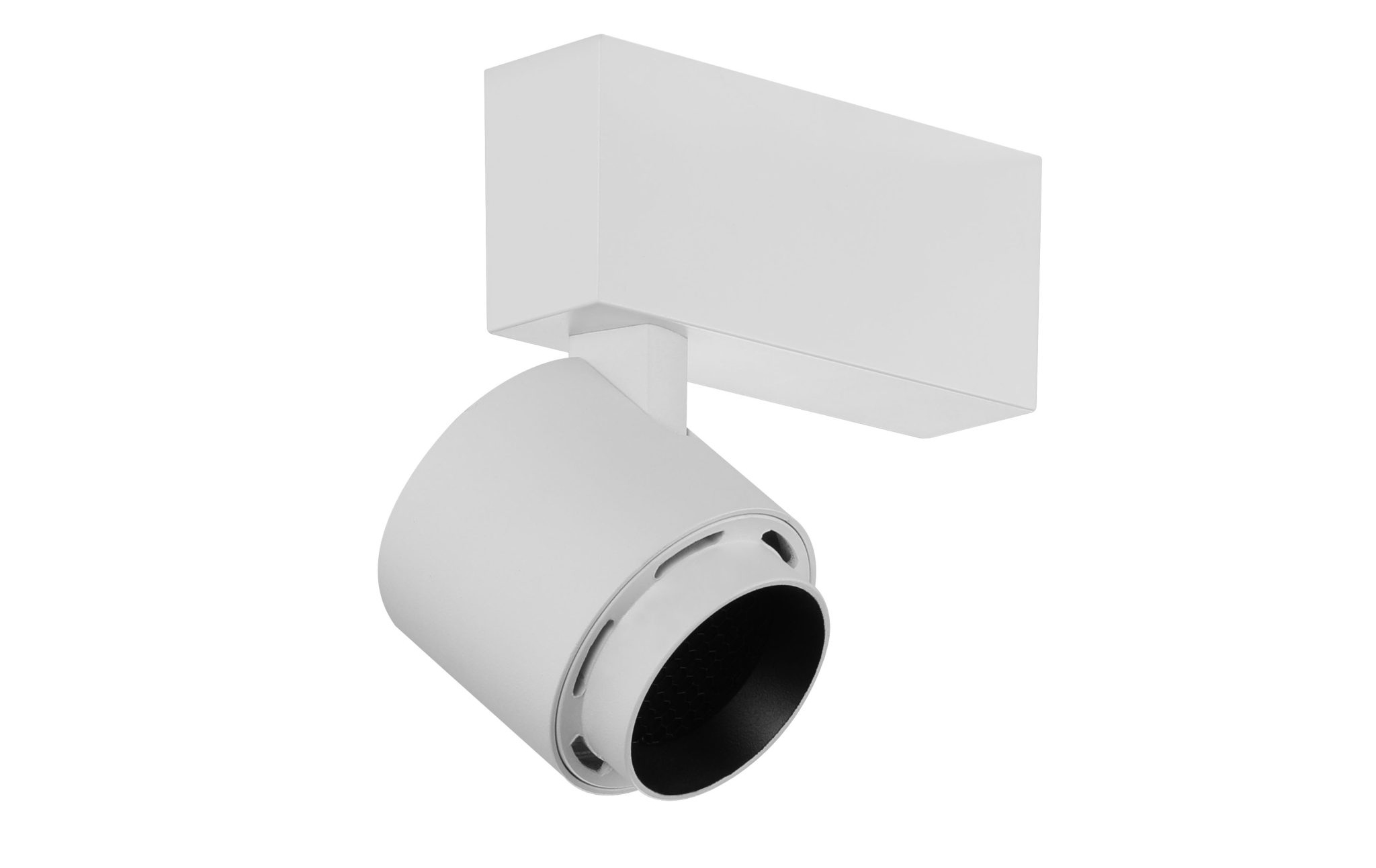

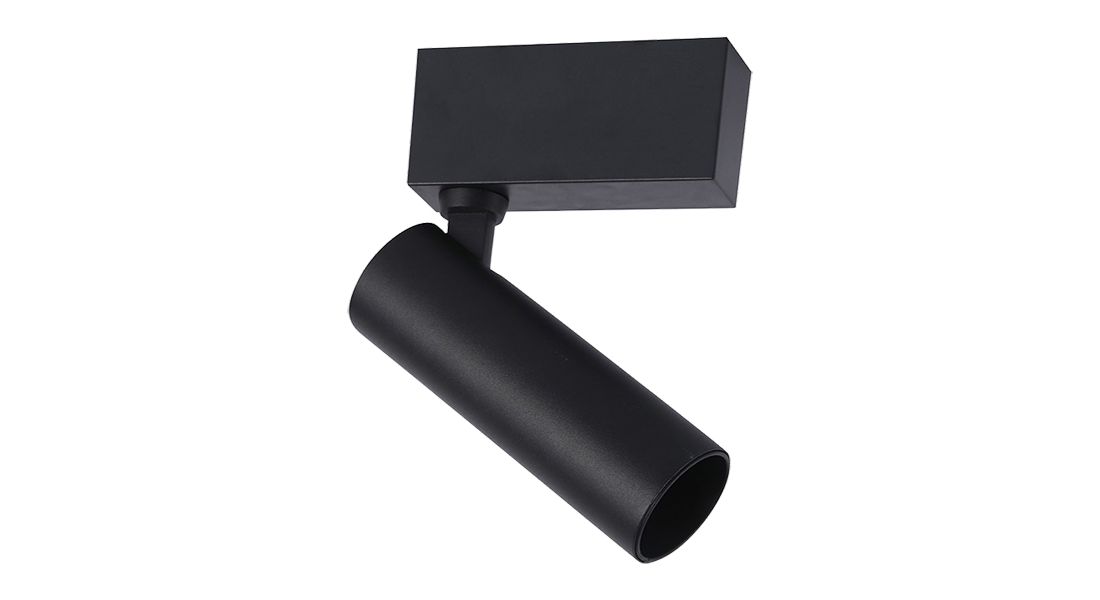

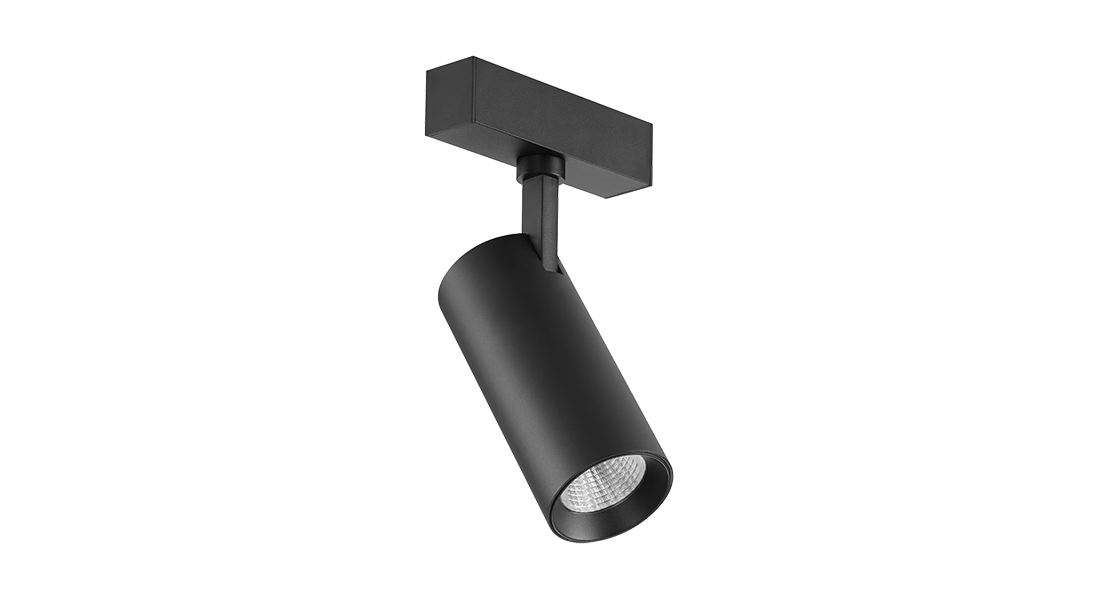

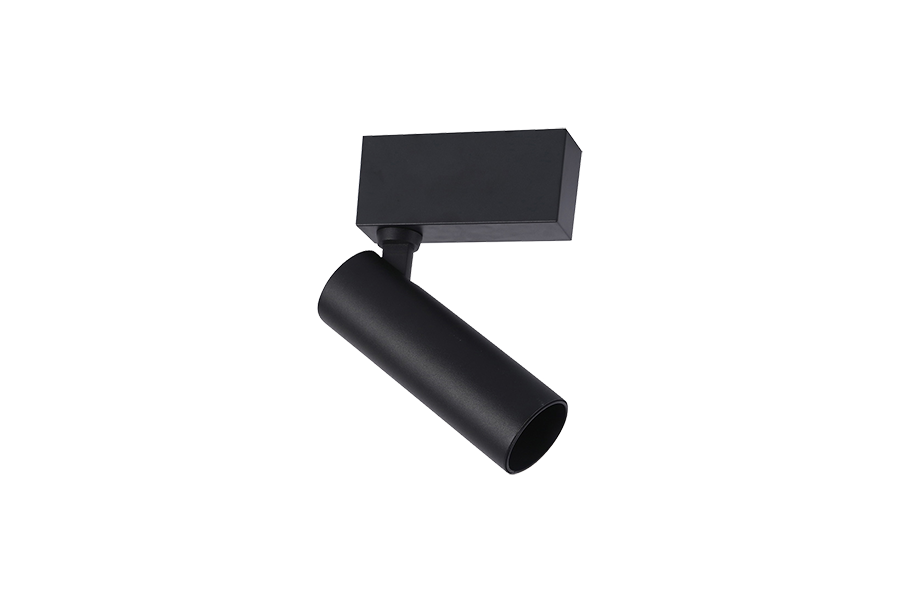

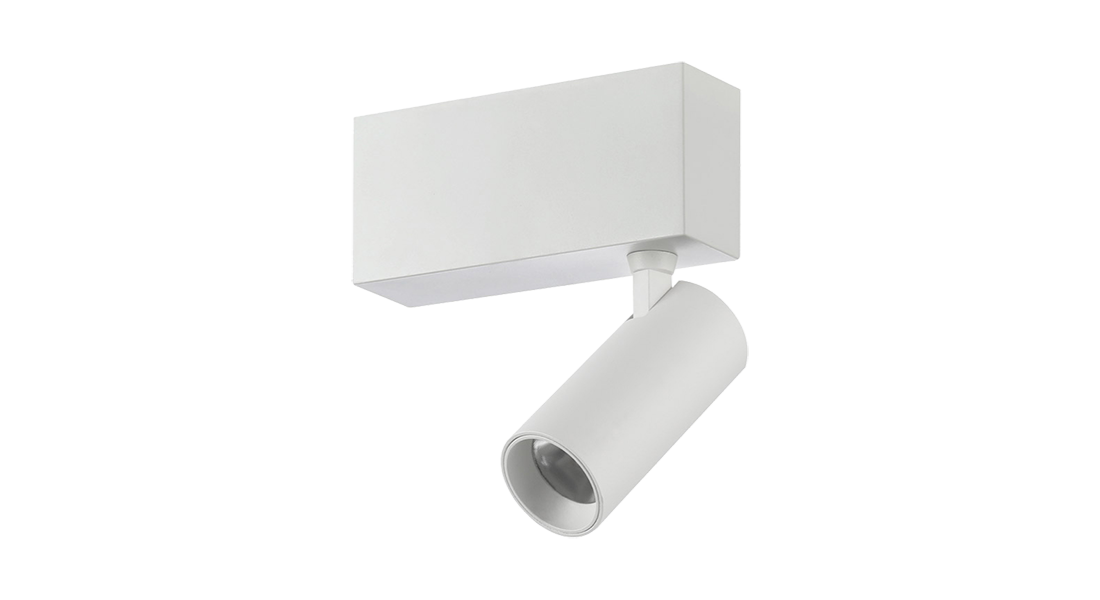

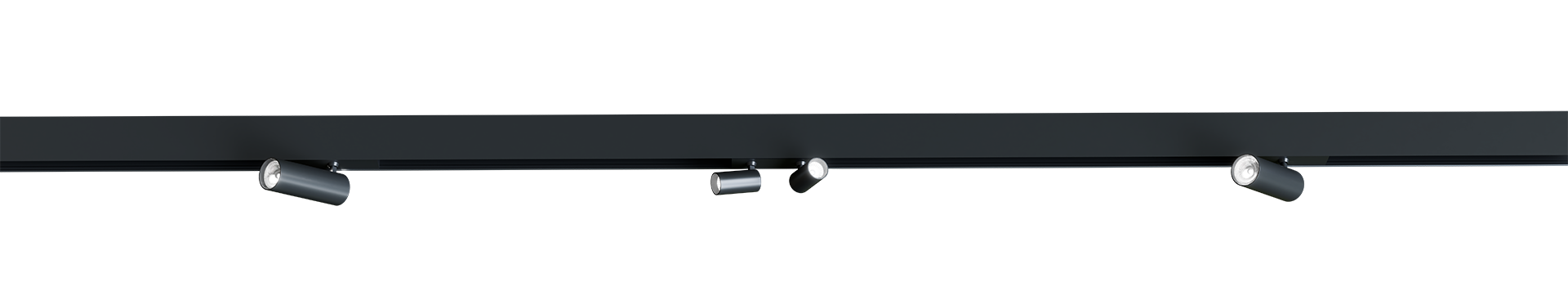

Adjustable Spotlight Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-SLS-5 | CREE | 5W | 400Lm | 20°/30°/40° | 90+ | 2700- 5000K | Black/White | 1.37x3.14” | 0-10V/Dali |

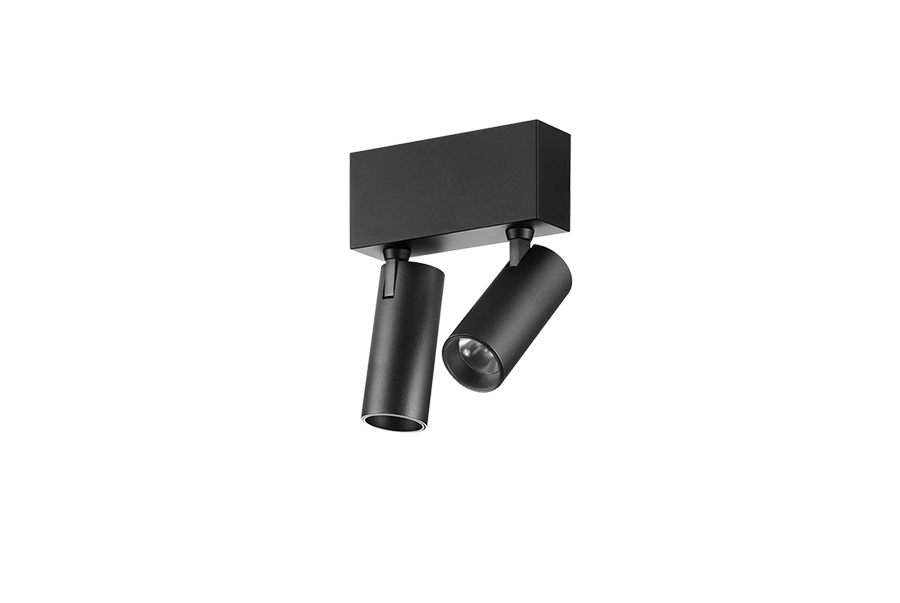

| TECHOLED-MT-SLD-10 (double) | CREE | 10W (2x5W) | 800Lm | 20°/30°/40° | 90+ | 2700- 5000K | Black/White | 1.37x3.14” | 0-10V/Dali |
| TECHOLED-MT-S-10 | CREE | 10W | 650Lm | 18°/24°/36° | 90+ | 2700- 5000K | Black/White | 1.96x5.5” | 0-10V/Dali |

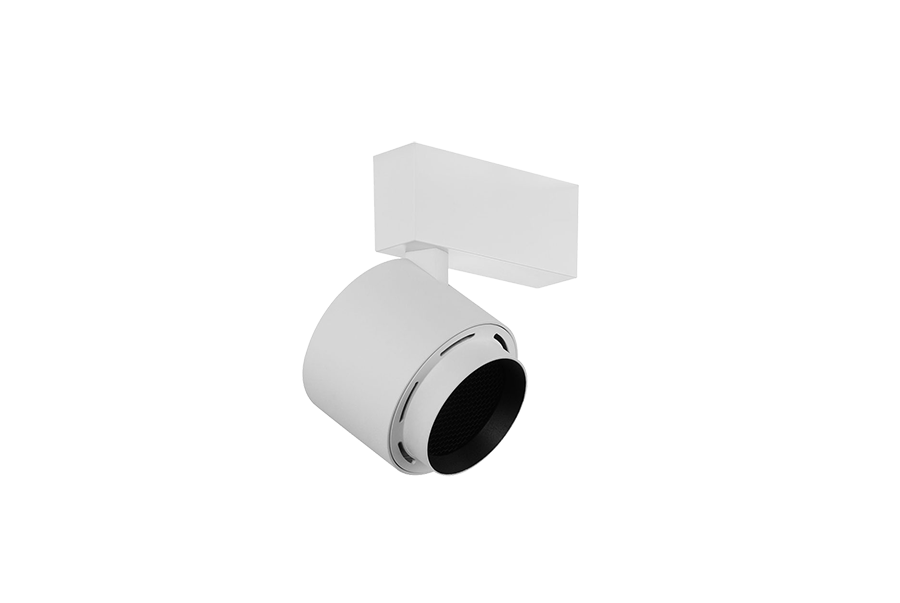

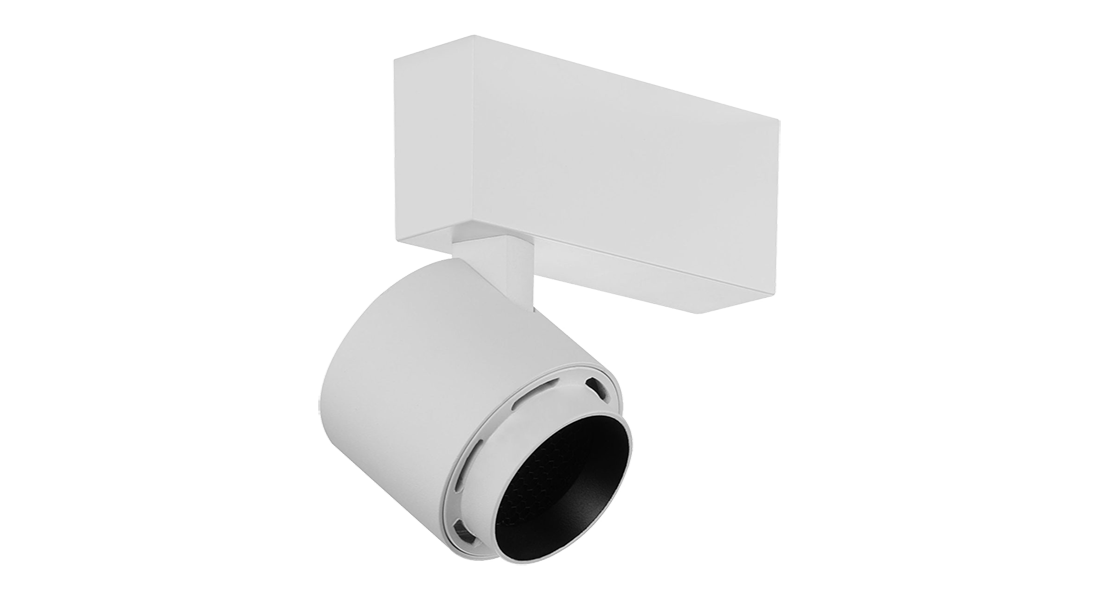

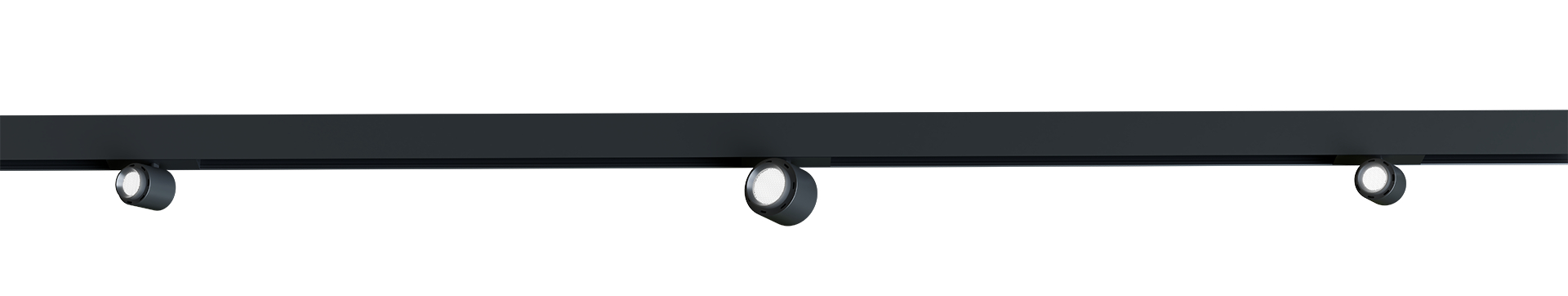

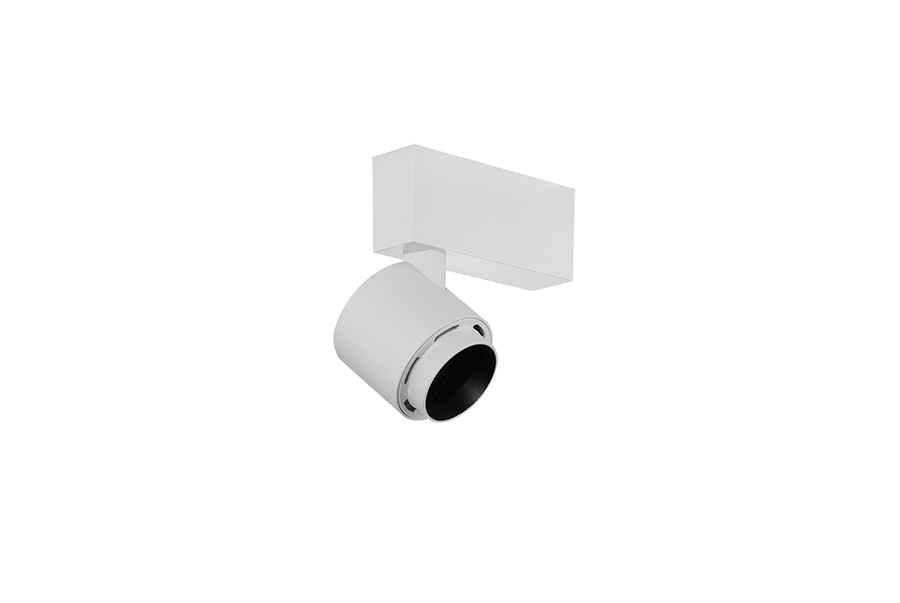

Adjustable Spotlight Short Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-SS-8 | CREE | 8W | 520Lm | 10°/20°/30° | 90+ | 2700- 5000K | Black/White | 2.55x3.14” | 0-10V/Dali |
| TECHOLED-MT-SS-15 | CREE | 15W | 975Lm | 10°/20°/30° | 90+ | 2700- 5000K | Black/White | 3.62x3.14” | 0-10V/Dali |

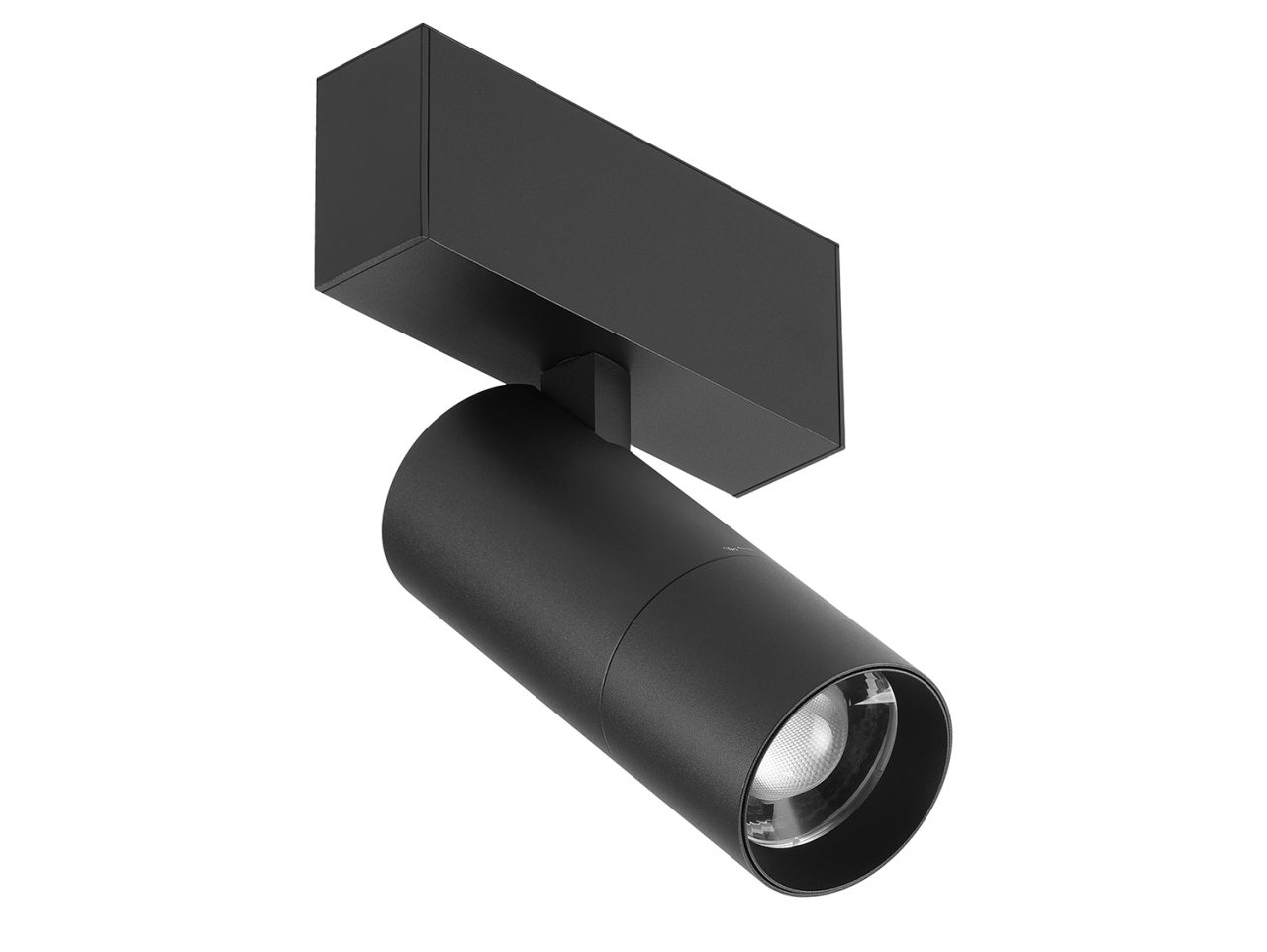

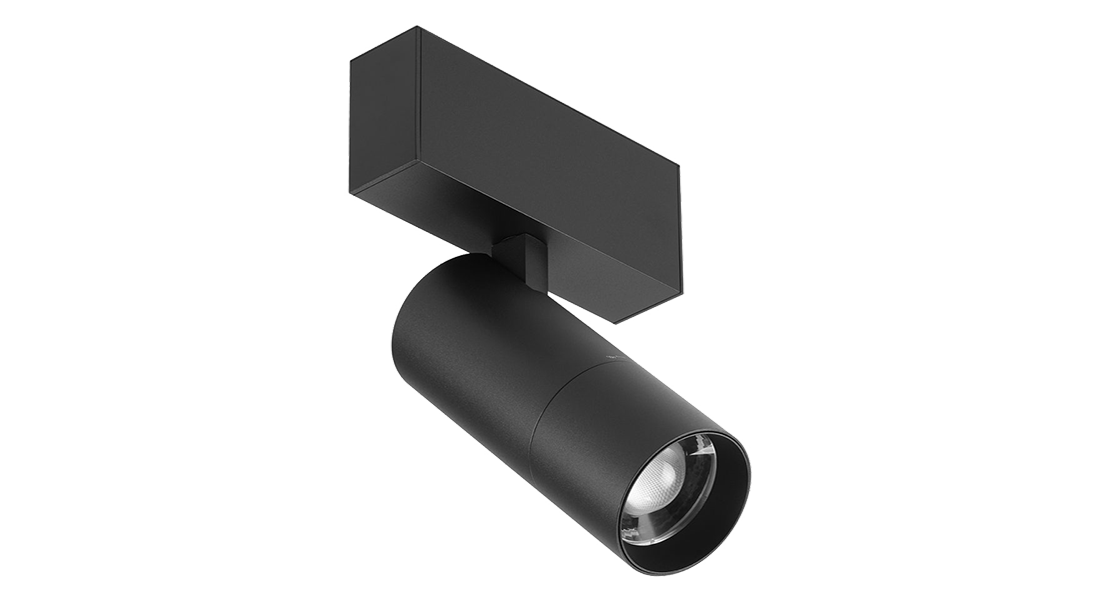

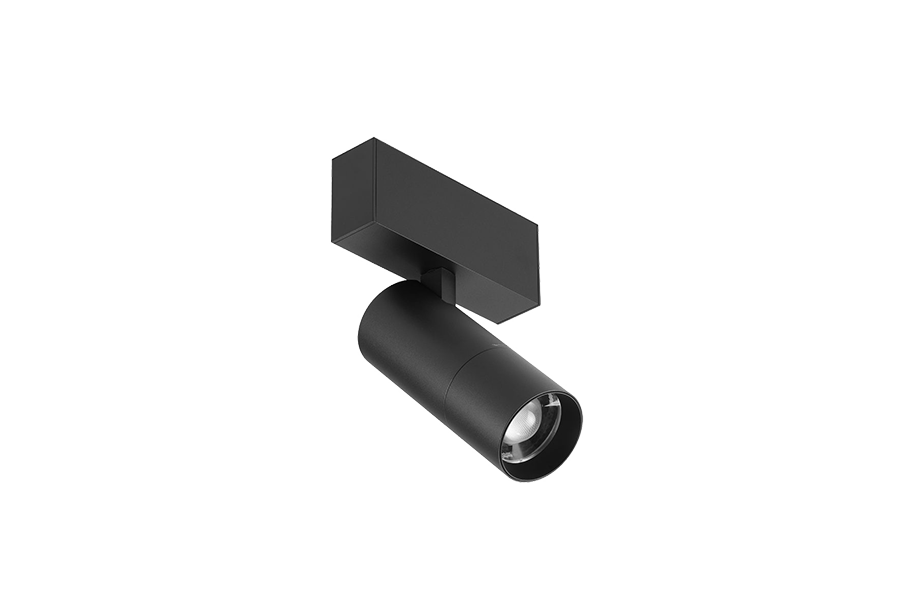

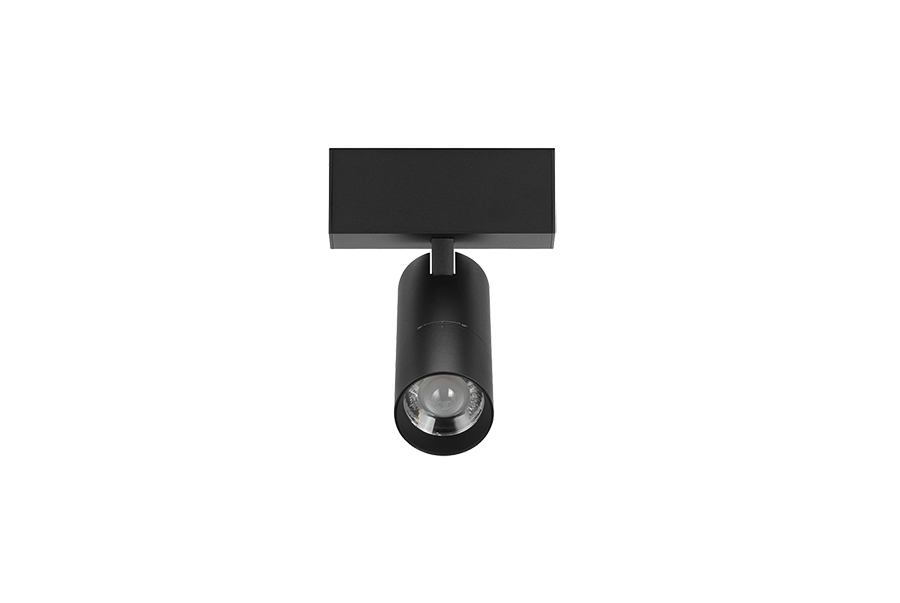

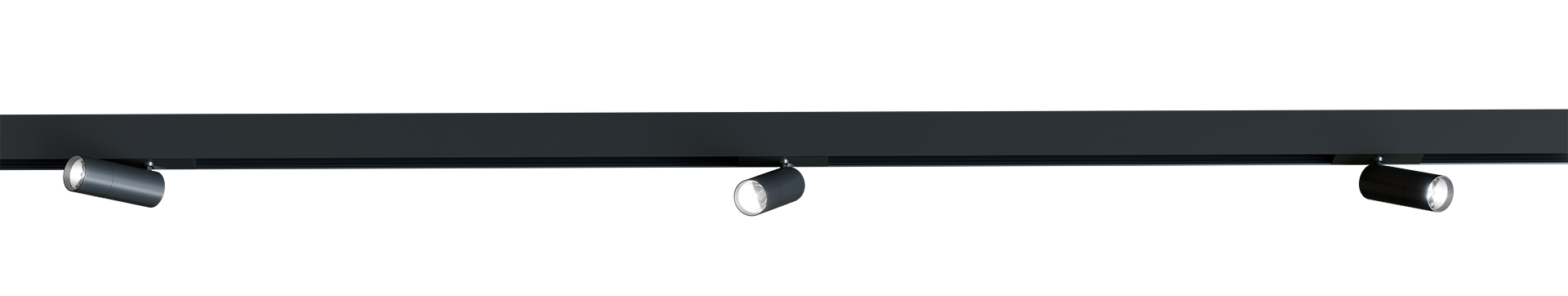

Adjustable Spotlight Focus Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Field Adjustable Beam Angle 20°-60°
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TechoLED-MT-FM-10 | CREE | 10W | 810Lm | Adjustable (20°-60°) | 90+ | 2700- 5000K | Black/White | 2.55x3.14” | 0-10V/Dali |

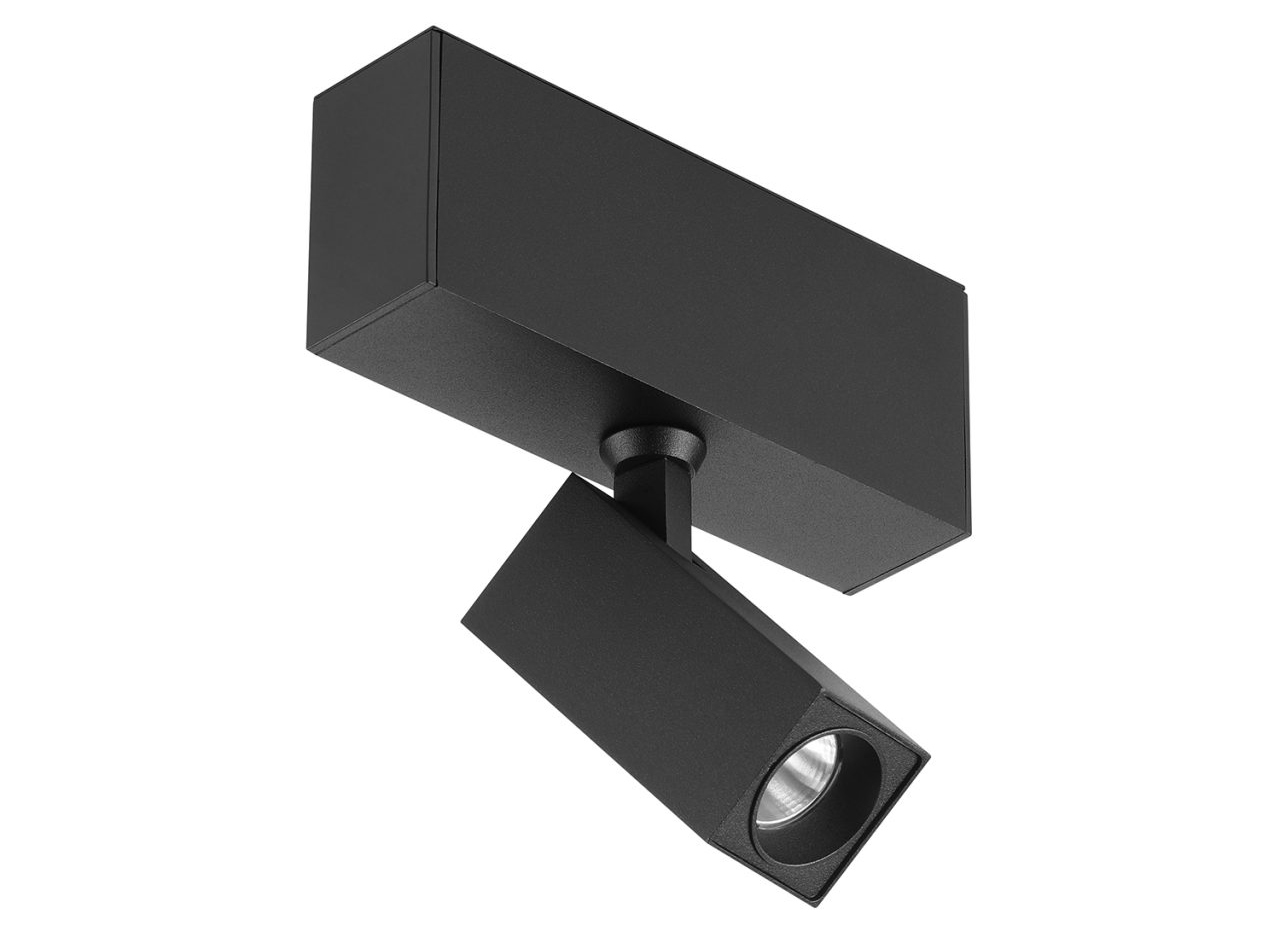

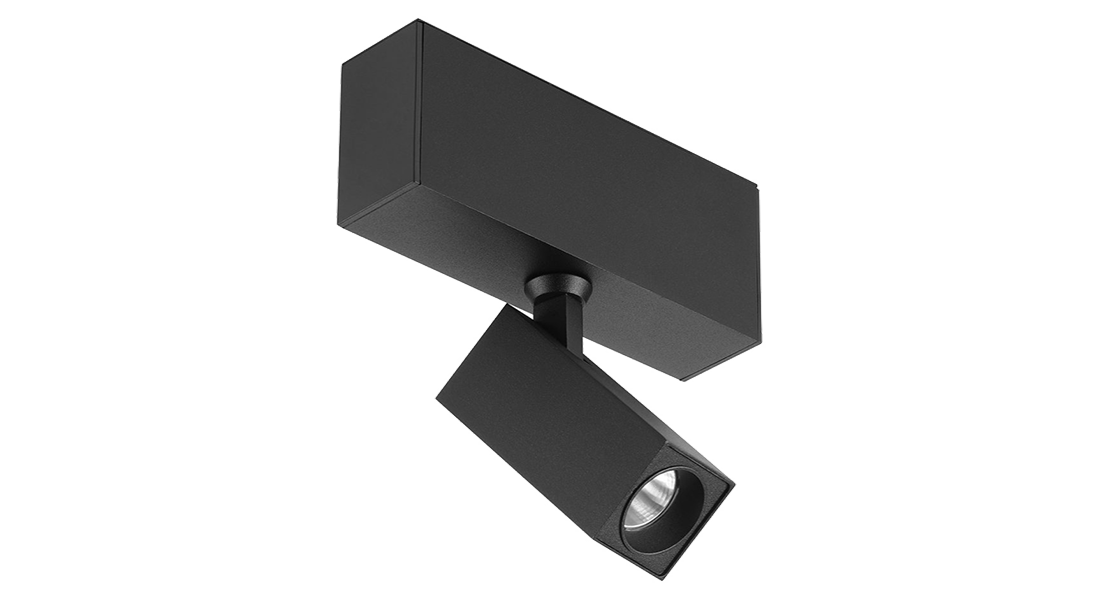

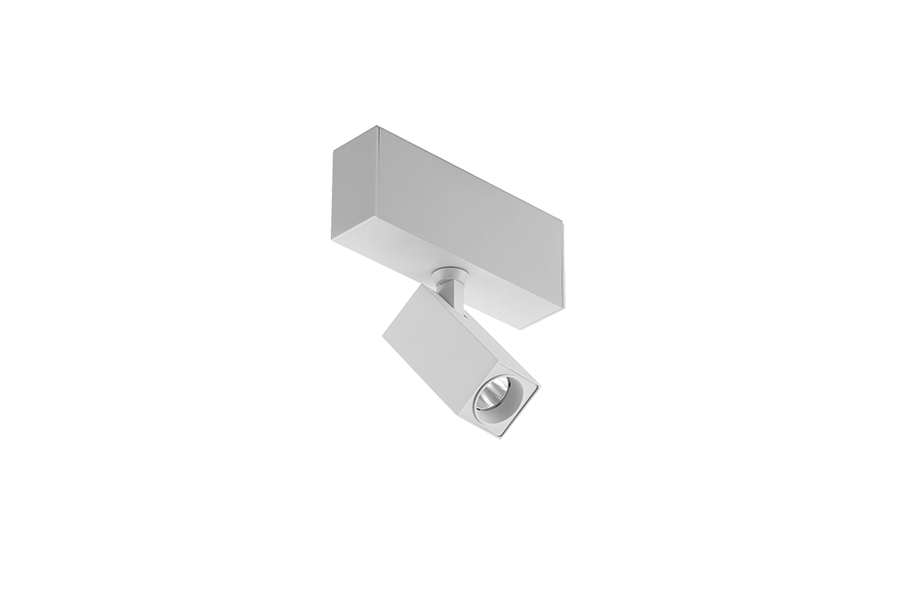

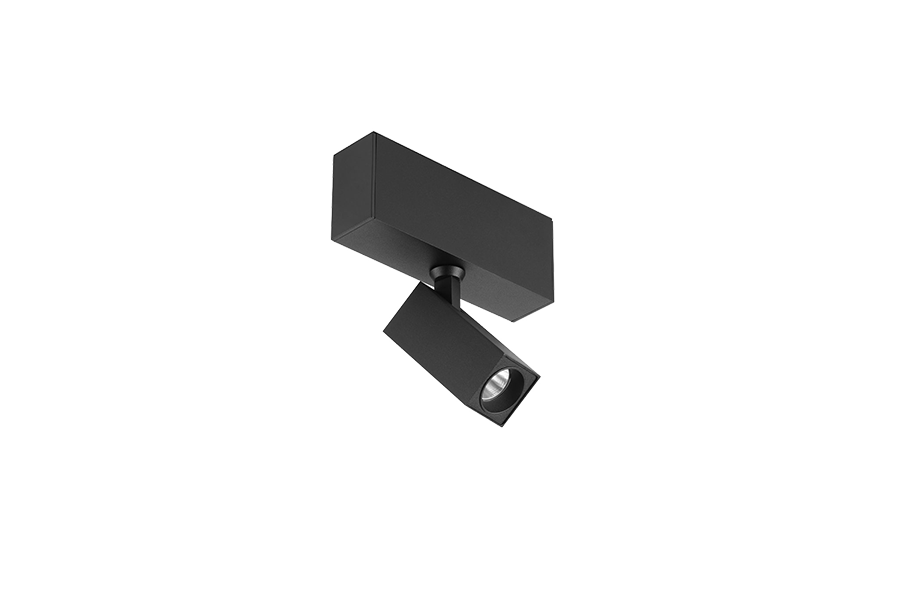

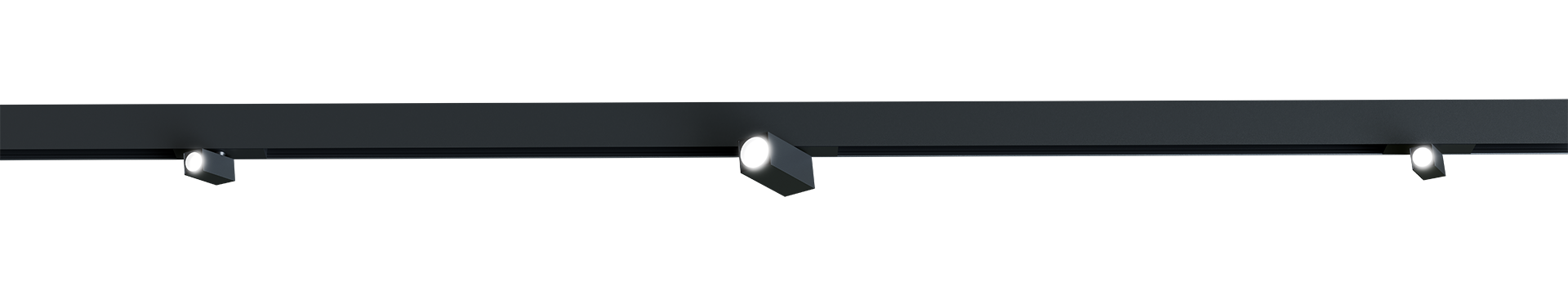

Adjustable Spotlight Rectangle Module
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver,
Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | CCT | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|---|
| TechoLED-MT-RM-8 | CREE | 8W | 365Lm | 15° | 90+ | 2700- 5000K | Black/White | 1.38x1.38x3.22” | 0-10V/Dali |
| TechoLED-MT-RM-10 | CREE | 10W | 725Lm | 18°/24°/36° | 90+ | 2700- 5000K | Black/White | 2.08x2.08x5.51” | 0-10V/Dali |

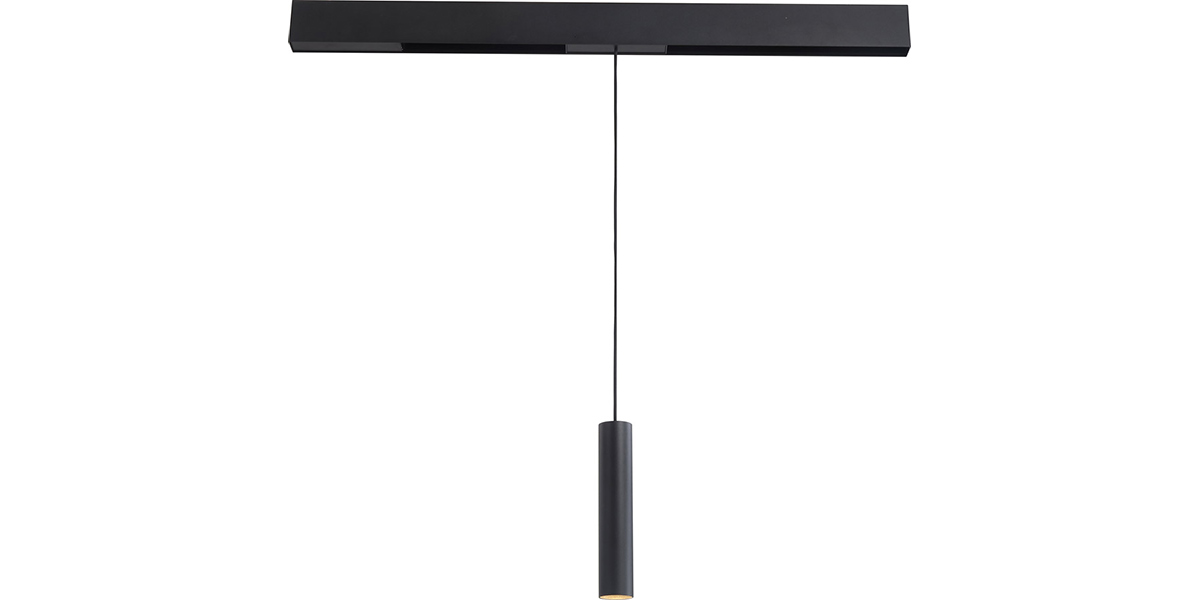

Pendant Modules Cylinder
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant, Recessed and Surface Mounted Installation
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Variety of Beam Angles Available on all Spotlight and Louvered Modules
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|
| TECHOLED-MT-PC-5 | Cree | 5W | 325Lm | 20°/30°/40° | 90+ | Black/White | 1.37x9.48” | 0-10V/Dali |
| TECHOLED-MT-PC-10 | Cree | 10W | 650Lm | 18°/24°/36° | 90+ | Black/White | 1.96x9.48” | 0-10V/Dali |

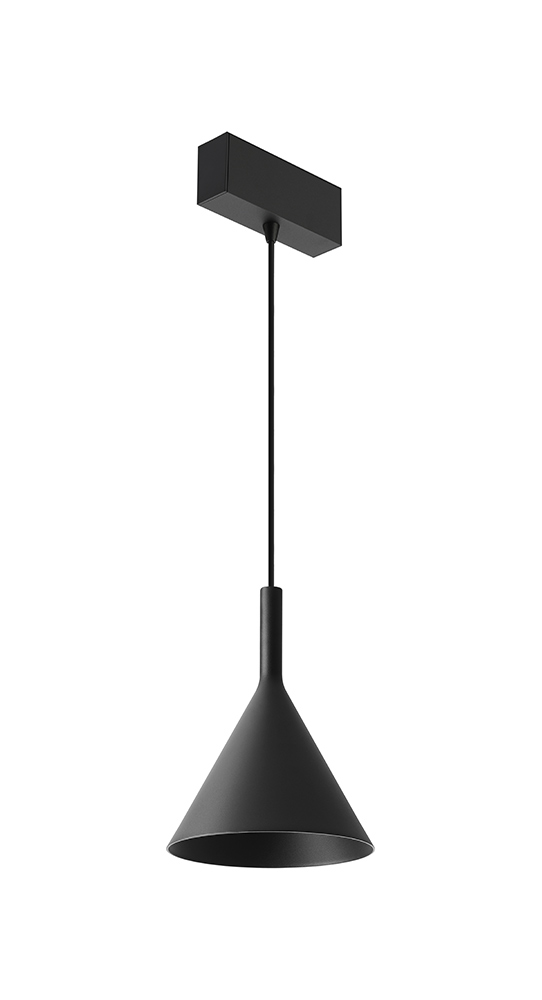

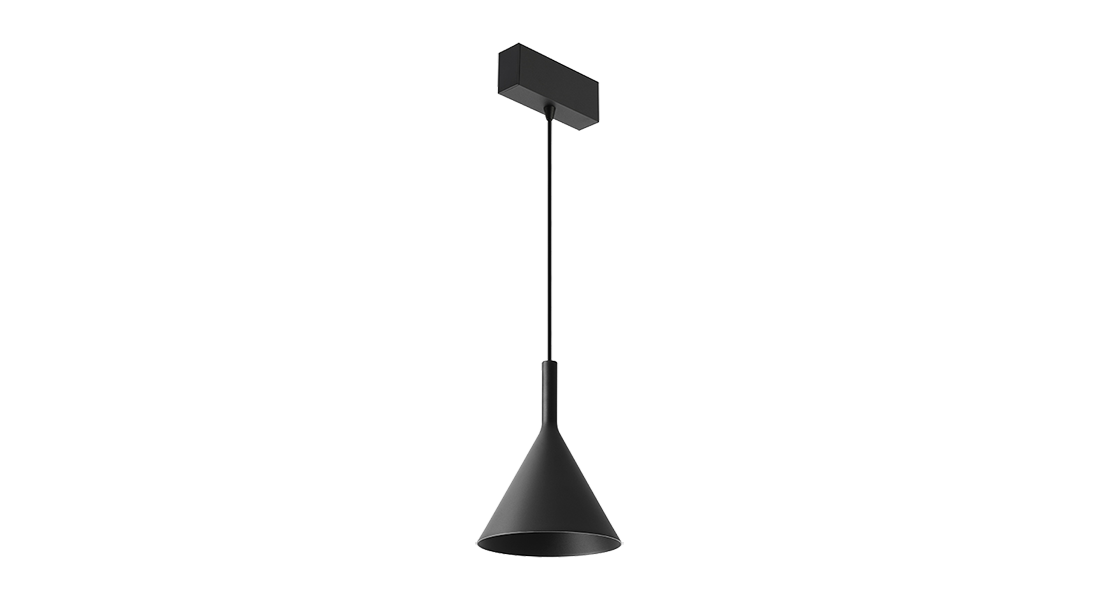

Pendant Modules Cone
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination, Beam Angle 65°
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | Beam Angle | CRI | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|---|
| TechoLED-MT-PY-10 | Cree | 10W | 265Lm | 65° | 90+ | Black/White | 6.66" | 0-10V/Dali |

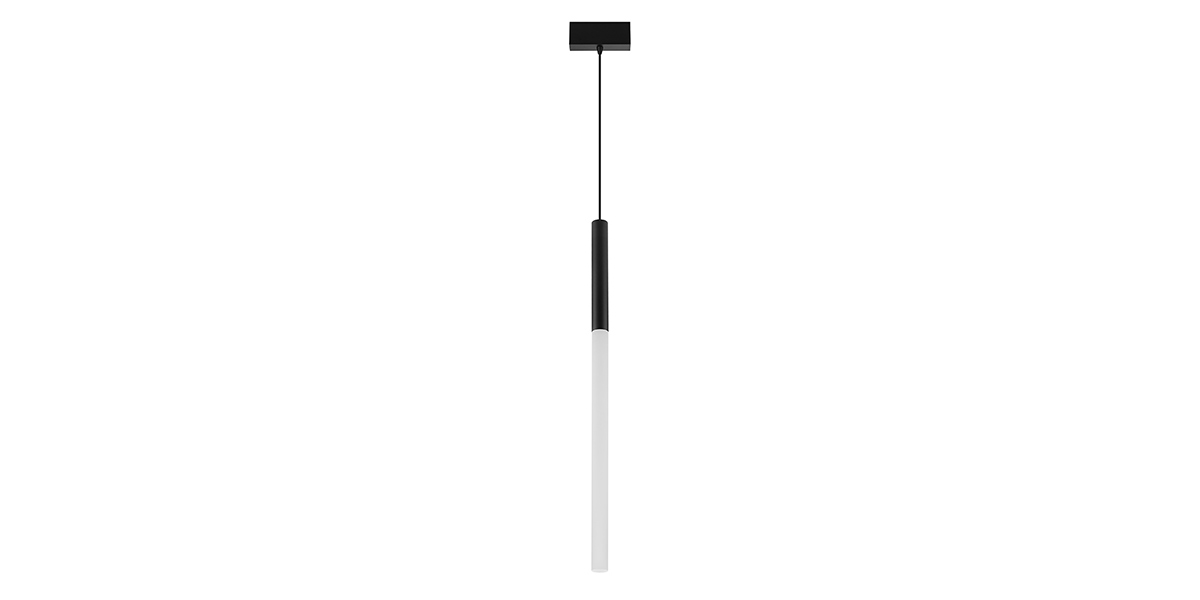

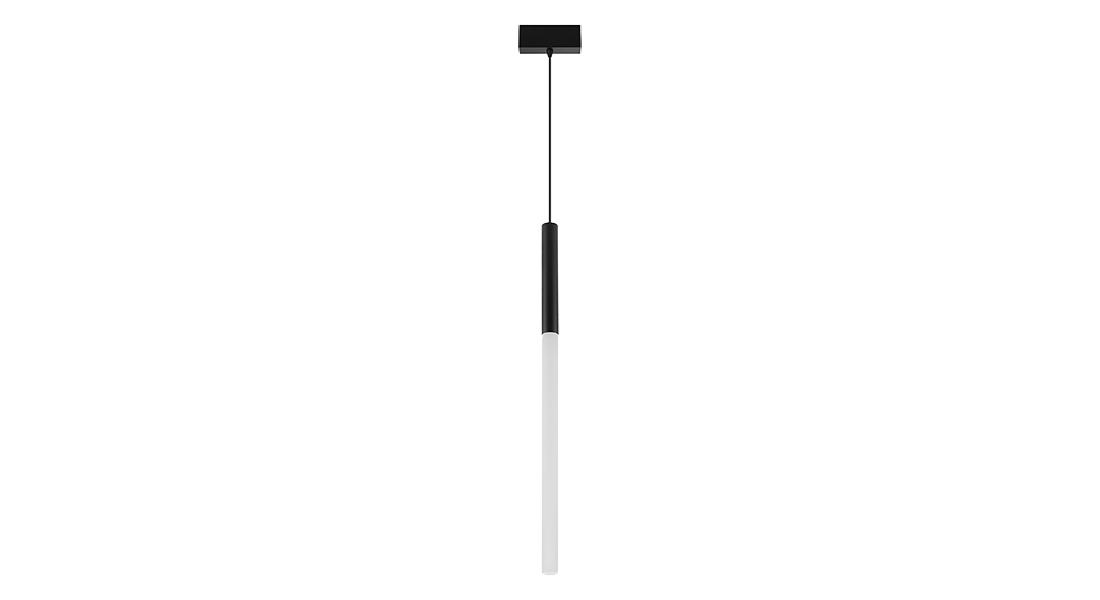

Pendant Modules Cylinder Drop Lens
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | CRI | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|
| TechoLED-MT-PA-5-13 | Cree | 5W | 460Lm | 90+ | Black/White | 1.37x13.78" | 0-10V/Dali |
| TechoLED-MT-PA-5-17 | Cree | 5W | 460Lm | 90+ | Black/White | 1.37x17.72" | 0-10V/Dali |

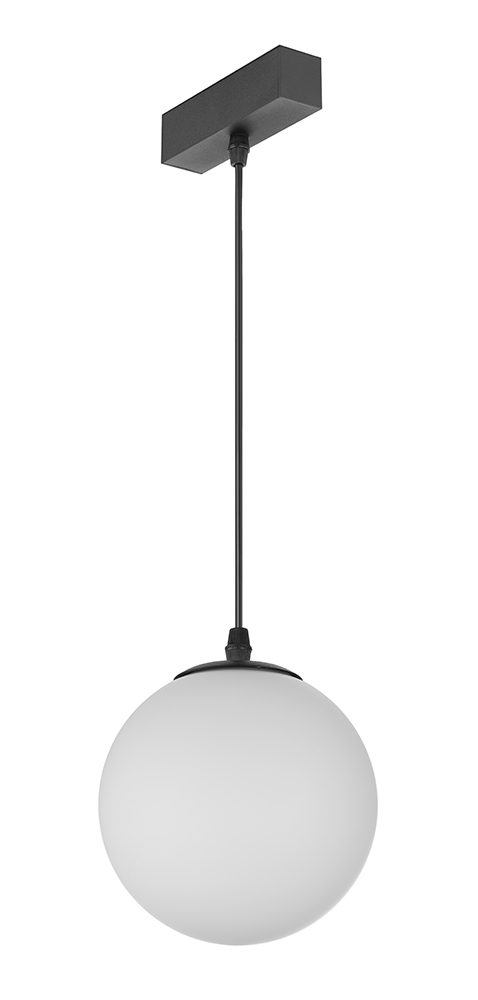

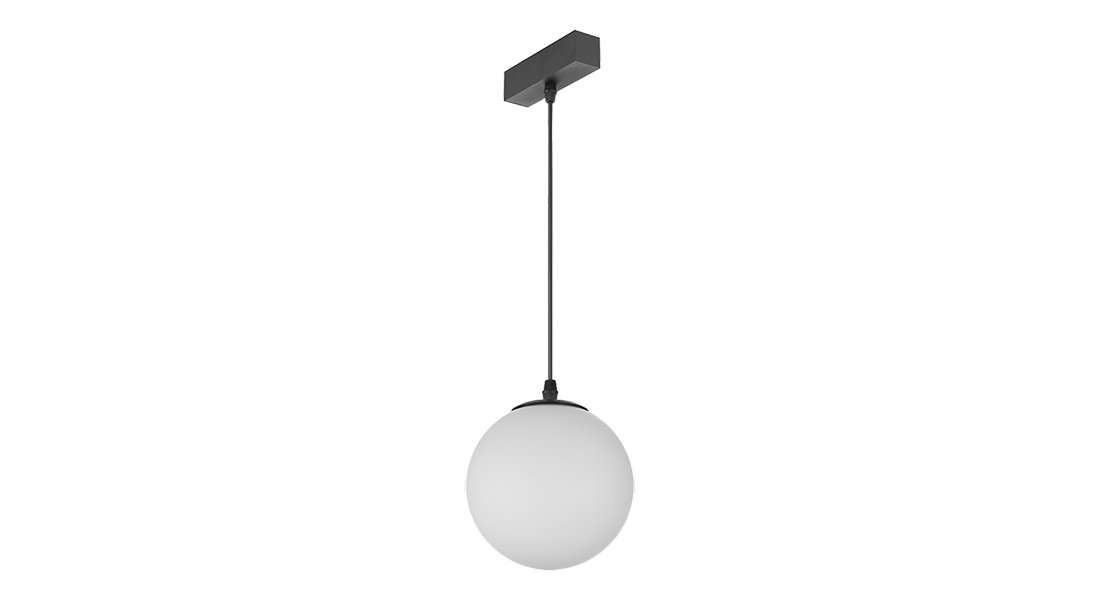

Pendant Modules Globe
GENERAL: Magnetic Track System with “Snap-in” Modules, Pendant
LED: Osram & Cree LED Chips, 2700-5000K, Dim to Warm and Tunable White available, 90CRI
OPTICAL: Direct Illumination
CONSTRUCTION: High Grade Aluminum Extrusions, 24V Remote Driver, Powder Coat Finish
| Product ID | LED Chips | Wattage | Lumen Output | CRI | Finish | Size (inches) | Dimming |
|---|---|---|---|---|---|---|---|
| TechoLED-MT-PG-5 | Cree | 5W | 350Lm | 90+ | Black/White | 5.9x55.32" | 0-10V/Dali |
Magnetic Track System Accessories
| Item # | Size (inches) | Description |
|---|---|---|
| TECHOLED-MT-45DCORNER | 4.33X4.33” | 45° sharp corner, for pendant/surface mount and recessed installation |
| TECHOLED-MT-XCORNER | 5.07x3.89” | X corner for pendant/surface mount and recessed installation |
| TECHOLED-MT-TCORNER | 5.07x6.25” | T corner for pendant/surface mount and recessed installation |
| TECHOLED-MT-LCORNER | 3.54x3.54x2.99” | L corner for pendant/surface mount and recessed installation |
| TECHOLED-MT-INNCORNER | 4.84x4.94x2.99” | inner corner for recessed and surface mount installation |
| TECHOLED-MT-OUTERCORNER | 4.84x4.94x2.99” | outer corner for recessed and surface mount installation |
| TECHOLED-MT-R-LCORNER | 3.54x3.54x2.99” | L corner for recessed mud-in installation |
| TECHOLED-MT-R-INNCORNER | 4.84x4.84x2.99” | inner corner for recessed mud-in installation |
| TECHOLED-MT-R-OUTCORNER | 4.84x4.84x2.99” | outer corner for recessed mud-in installation |
| TECHOLED-MT-RK | 3.93x1.49x2.63” | recessed flange kit |
| TECHOLED-MT-PK | 3.14” diameter | pendant kit |
| TECHOLED-MT-TC | 4.44x1.27x0.11” | continuous linear run connector |
| TECHOLED-MT-PP | 2.55x1.18” | power plate, with 2 pin connection |
| TECHOLED-MT-DP | 2.55x1.18” | decorative plate |
| TECHOLED-MT-EC | 2.99x1.53x0.05” | end cap |
| TECHOLED-MT-BC | field cuttable | black insert module |
