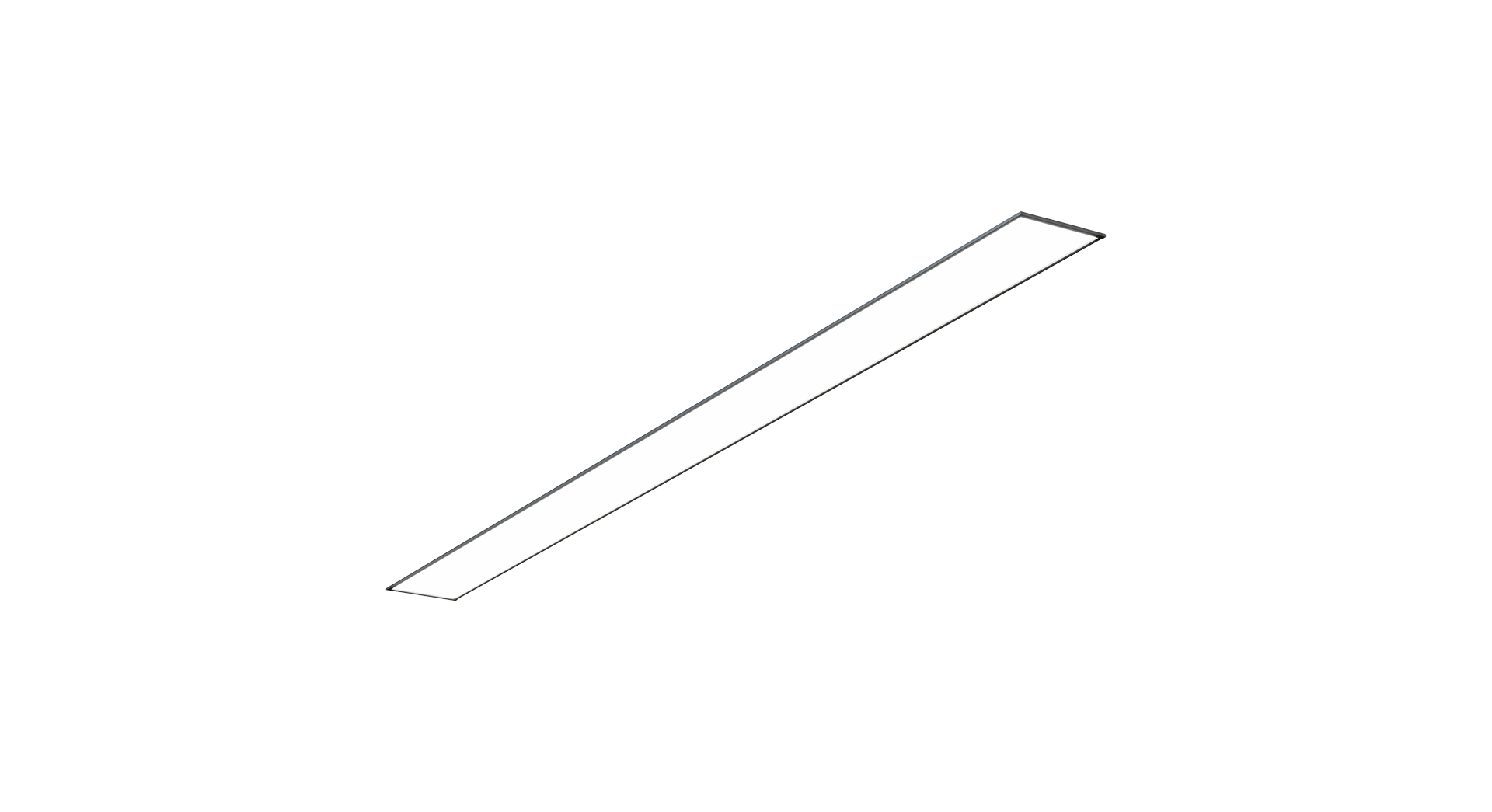

IP-R Series
IP Series is specification grade, outdoor architectural linear fixture, with IP66 – fully exposed to elements – rating, ability to do continuous linear runs. Offered in recessed application in wide variety of materials, canopies, soffits, ACM panels and more. Wide ranging customization options, from custom lumen packages, sizes and finishes. Great and simple lighting solution for all modern interiors.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/W available, 90CRI
Optical: Direct illumination, 106° beam angle
Construction: High grade aluminum extrusion, die cast end caps, PMMA diffuser, integral driver, powder coat finish, waterproof IP66, IK 10 impact rating
| Model # | Length | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-IPR-D-4-LO-30 | 4' | Low | 3000K | 23W | 2599Lm |
| TECHOLED-IPR-D-4-ME-30 | 4' | Medium | 3000K | 34W | 3842Lm |
| TECHOLED-IPR-D-4-HI-30 | 4' | High | 3000K | 45W | 5085Lm |
| TECHOLED-IPR-D-6-LO-30 | 6' | Low | 3000K | 34W | 3842Lm |
| TECHOLED-IPR-D-6-ME-30 | 6' | Medium | 3000K | 51W | 5763Lm |
| TECHOLED-IPR-D-6-HI-30 | 6' | High | 3000K | 68W | 7684Lm |
| TECHOLED-IPR-D-8-LO-30 | 8' | Low | 3000K | 46W | 5198Lm |
| TECHOLED-IPR-D-8-ME-30 | 8' | Medium | 3000K | 68W | 7684Lm |
| TECHOLED-IPR-D-8-HI-30 | 8' | High | 3000K | 90W | 10170Lm |
