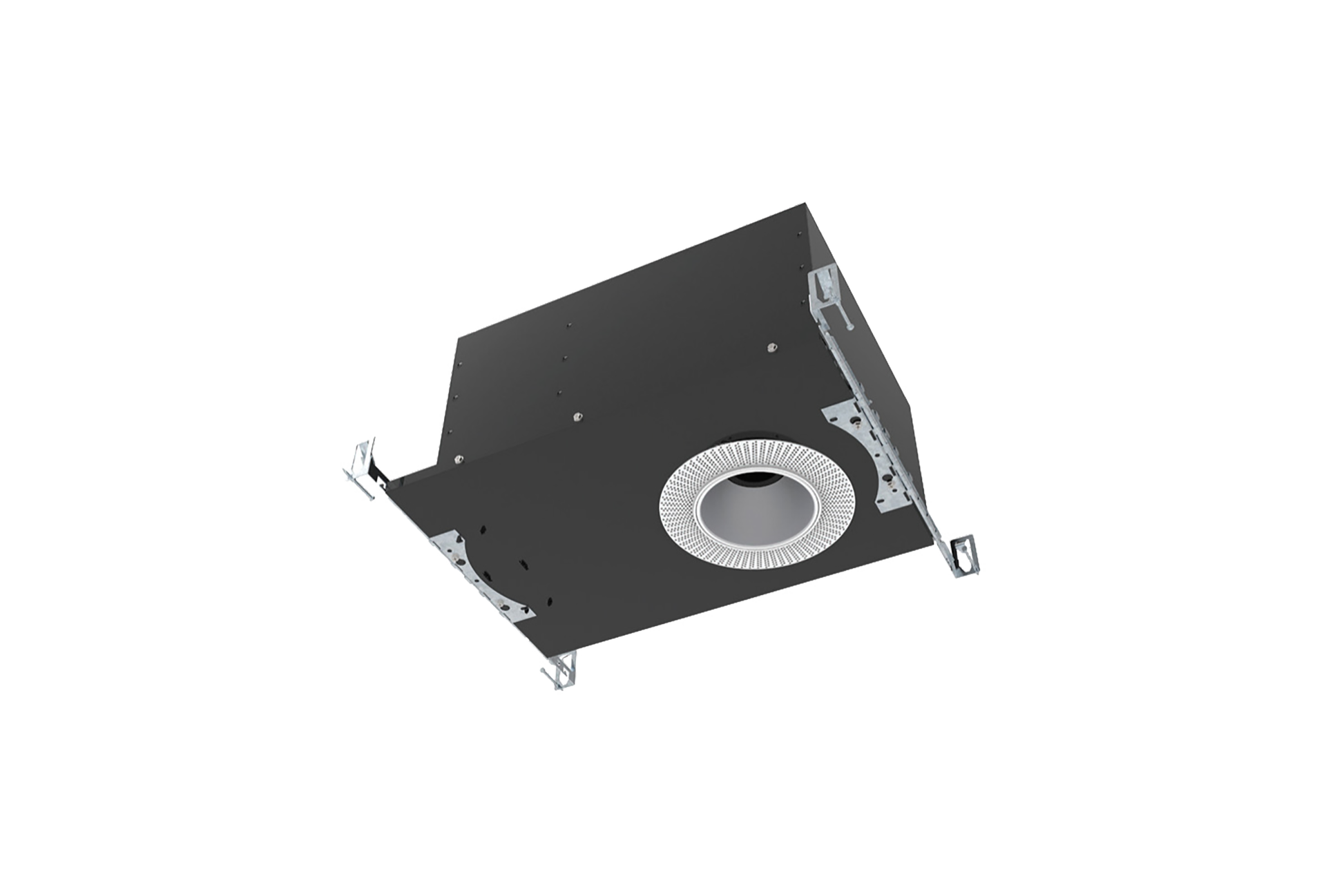

DL-R-G Series
DL-R-G SERIES - GIMBAL DOWNLIGHT
Download
IES files
TechoLedTechoLED-DL-R-6.iesCut sheets

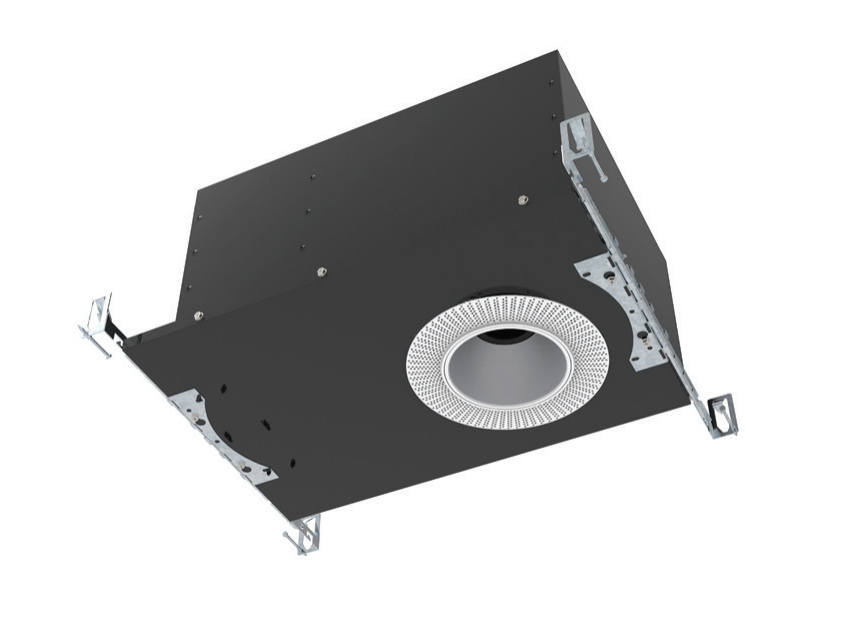

TechoLED-DL-R-G SERIES-GIMBAL-DOWNLIGHT.pdfDL-R-G Series are specification grade, 4” aperture gimbal downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperature and lumen outputs, as well as multiple trim and reflector finish options. Great for illuminating walls, signage and products.
LED: Samsung LED Chips, 2700-5000K, 80CRI (90CRI optional)
Optical: Adjustable 360° horizontally and 30° vertically
Construction: High grade aluminum and sheet metal construction, Integral driver, Powder coat finish
| Model | Size | Wattage | Distribution | Color Temp. | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-DL-R-G-A-12 | 4” | 12W | Adjustable/Gimbal | 3000K | 1200Lm |
| TECHOLED-DL-R-G-A-15 | 4” | 15W | Adjustable/Gimbal | 3000K | 1500Lm |
| TECHOLED-DL-R-G-A-20 | 4” | 20W | Adjustable/Gimbal | 3000K | 2000Lm |
