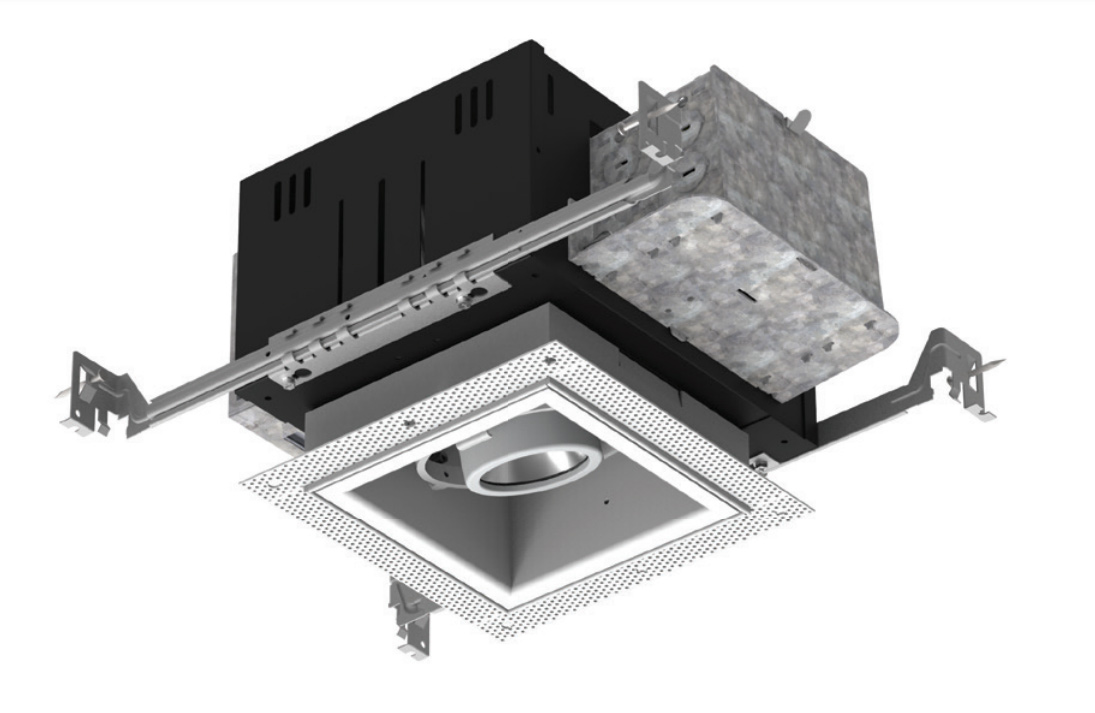

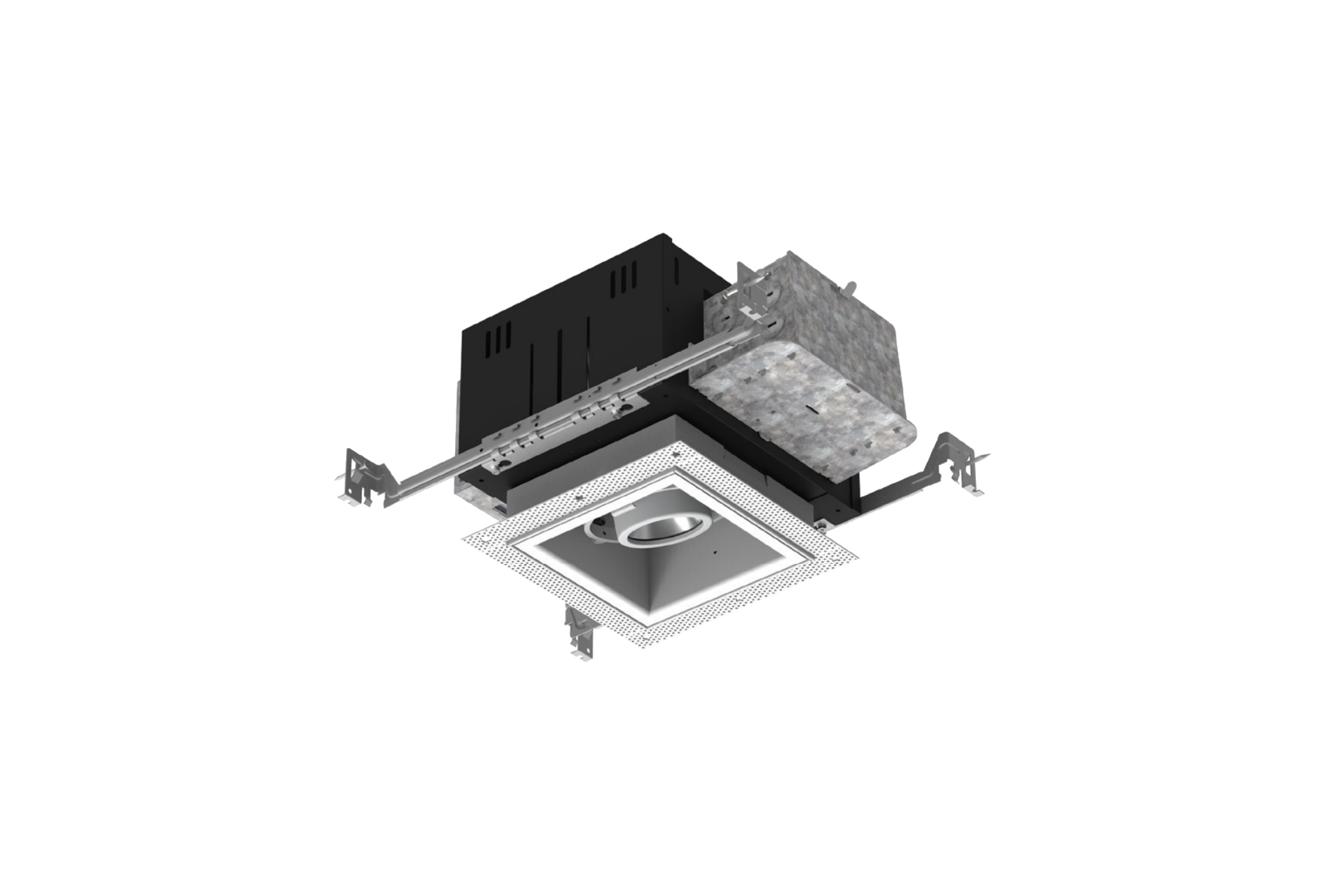

DL-A-6 Series
DL-A-6 Series are specification grade, 6” aperture gimbal downlights, featuring simple look, high efficacy and high-quality components. Designed for new construction recessed applications, available in wide variety of color temperature and lumen outputs, as well as multiple trim and reflector finish options. Great for illuminating walls,
signage and products.
LED: Osram, Seoul, Cree, LED Chips, 2700-4000K, 80CRI (90CRI optional)
Optical: 6” aperture, 12-54° Beam angle, gimbal
Construction: High grade steel housing, Integral driver, Powder coat finish, IC ratting optional
| Model | Size | Wattage | Distribution | Color Temp. | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-DL-A-6-A-30-27-12-U-W | 6” | 30W | Direct | 3000K | 3000Lm |
| TECHOLED-DL-A-6-A-40-27-12-U-W | 6” | 40W | Direct | 3000K | 4000Lm |
| TECHOLED-DL-A-6-A-50-27-12-U-W | 6” | 50W | Direct | 3000K | 5000Lm |
