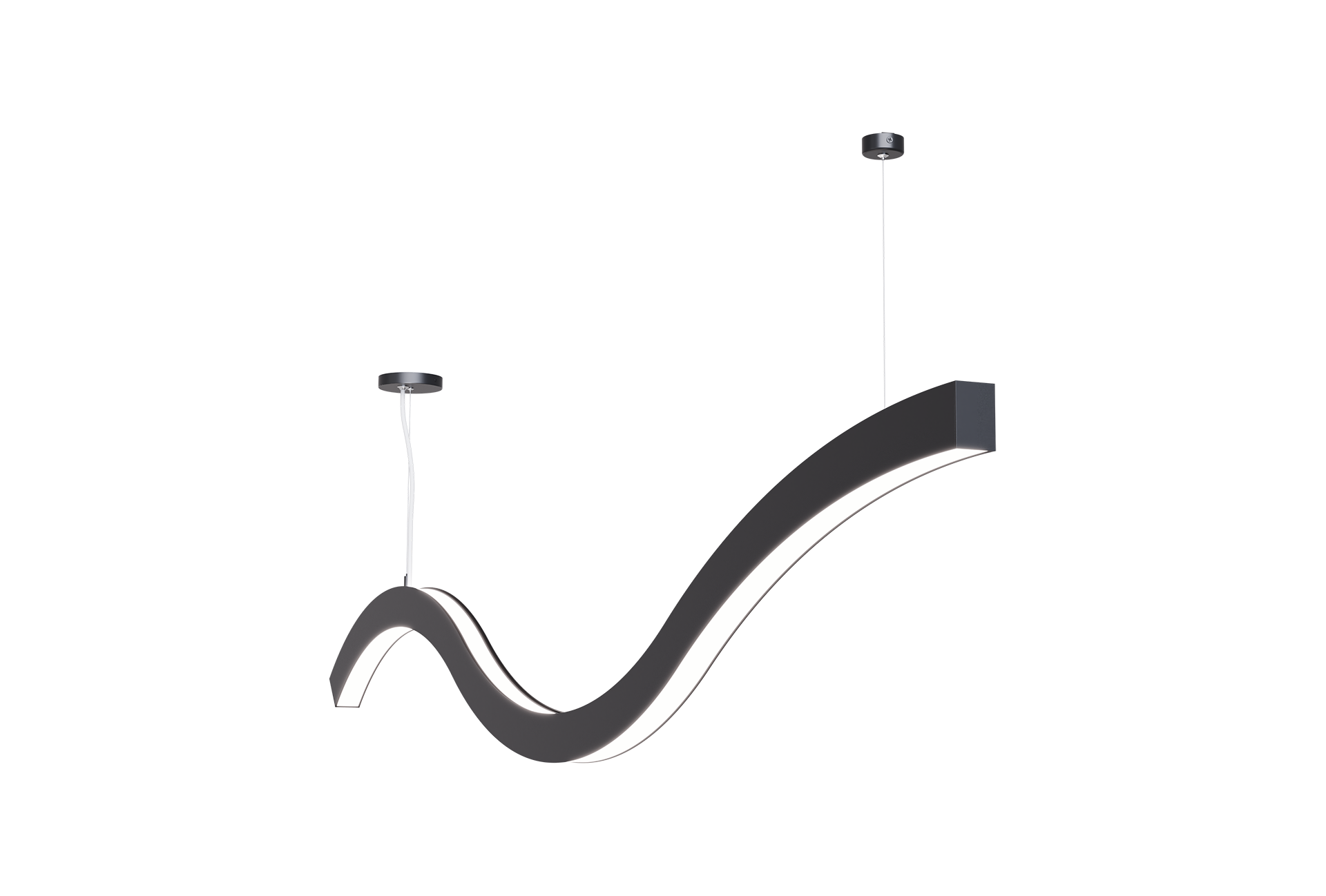

BX-WAVE Series
BX-WAVE SERIES
The TechoLED BX-WAVE series features specification-grade linear LED fixtures designed to create smooth vertical curves and flowing three-dimensional forms. Constructed from high-grade aluminum extrusions and available exclusively as a pendant-mounted system, BX-WAVE can be configured in a wide range of custom lengths, curves, patterns, and continuous arrangements. With virtually limitless possibilities, the BX-WAVE series provides a distinctive and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct and direct/indirect illumination, 110° beam angle, UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish
| Model | Distribution | Length | Output | Color Temp. | Lumens / W | W / ft | Direct Lumens / ft | Indirect Lumens / ft |
|---|---|---|---|---|---|---|---|---|
| TECHOLED-BX-WAVE-D-C-LO-30 | Direct | Custom | Low | 3000K | 100 | 6 | 600 | — |
| TECHOLED-BX-WAVE-D-C-ME-30 | Direct | Custom | Medium | 3000K | 100 | 10 | 1000 | — |
| TECHOLED-BX-WAVE-D-C-HI-30 | Direct | Custom | High | 3000K | 100 | 15 | 1500 | — |
| TECHOLED-BX-WAVE-DI-C-LO-30 | Direct / Indirect | Custom | Low | 3000K | 100 | 9 | 600 | 300 |
| TECHOLED-BX-WAVE-DI-C-ME-30 | Direct / Indirect | Custom | Medium | 3000K | 100 | 13 | 1000 | 300 |
| TECHOLED-BX-WAVE-DI-C-HI-30 | Direct / Indirect | Custom | High | 3000K | 100 | 18 | 1500 | 300 |
