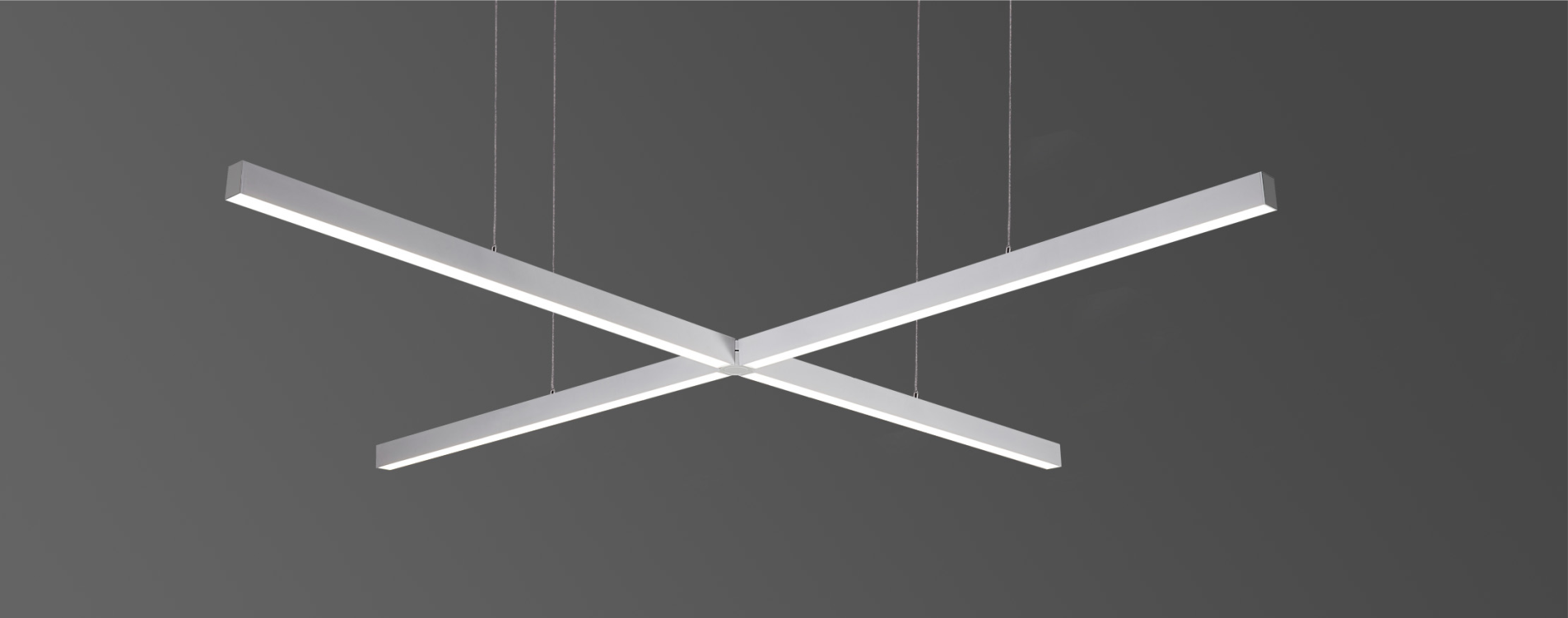

BX M Series

GENERAL: Indoor Architectural Pendant Modular LED system.

LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)

OPTICAL: Direct Illumination, 110° Beam Angle

CONSTRUCTION: High Grade Aluminum Extrusion 2.2 x 3.2”, Die Cast End Caps, PMMA Diffuser, Integral Driver, Powder Coat Finish. Modular Flexible system with ability to create patterns. Damp Location.

ETL logo    Lutron logo

* 5-year warranty, 50,000 hour rated lifespan. Custom size, lumen output and color temperature available. Grid spacing to avoid gaps is up to the contractor.

ModelLengthWattageDistributionLumen Output
TechoLED-BX-M-D-2-18-30-U-D2'18 WDirect1440Lm
TechoLED-BX-M-D-4-36-30-U-D4'36 WDirect2880Lm
TechoLED-BX-M-D-6-54-30-U-D6'54 WDirect4320Lm
TechoLED-BX-M-D-8-72-30-U-D8'72 WDirect5760Lm
