BX-CURV FUSION-R SERIES
BX-CURV FUSION-R

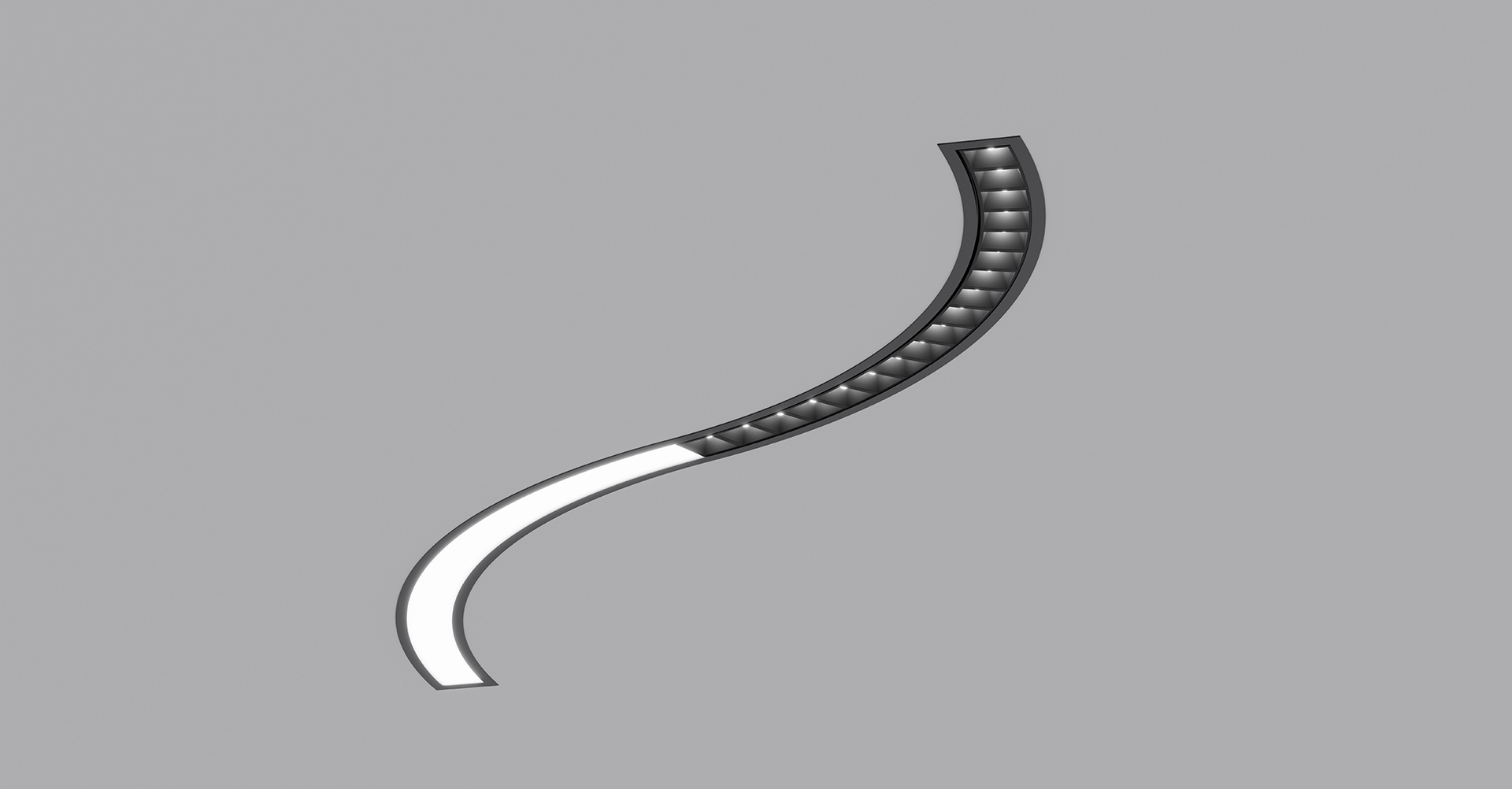

The TechoLED BX-CURV FUSION-R series features specification-grade curved linear LED fixtures constructed from high-grade aluminum extrusions. Designed with the flexibility to incorporate both continuous diffused lenses and precision louvered optics, BX-CURV FUSION-R allows multiple lighting effects to be integrated within a single architectural form. With virtually limitless options for creating flowing patterns and custom configurations, the series provides a versatile, visually distinctive, and modern lighting solution.
LED: Bridgelux LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 100,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, 110° beam angle, UGR<19 on lensed section, 50° beam angle and UGR<16 on louvered sections
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. Patterns and wall to ceiling transitions.
Louver Section
| MODEL # | Length | Output | Color Temp. | W / Cluster | Lumens / Cluster | Cluster |
|---|---|---|---|---|---|---|
| TECHOLED-BX-CURV-F-R-C-LO-30 | Custom | Low | 3000K | 5.4 | 562 | 6 spots |
| TECHOLED-BX-CURV-F-R-C-ME-30 | Custom | Medium | 3000K | 7.2 | 738 | 6 spots |
| TECHOLED-BX-CURV-F-R-C-HI-30 | Custom | High | 3000K | 9 | 915 | 6 spots |
Diffuser Section (Direct)
| MODEL # | Length | Output | Color Temp. | W / Ft | Lumens / Ft |
|---|---|---|---|---|---|
| TECHOLED-BX-CURV-F-R-D-C-LO-30 | Custom | Low | 3000K | 3 | 238 |
| TECHOLED-BX-CURV-F-R-D-C-ME-30 | Custom | Medium | 3000K | 6.25 | 460 |
| TECHOLED-BX-CURV-F-R-D-C-HI-30 | Custom | High | 3000K | 9 | 647 |
