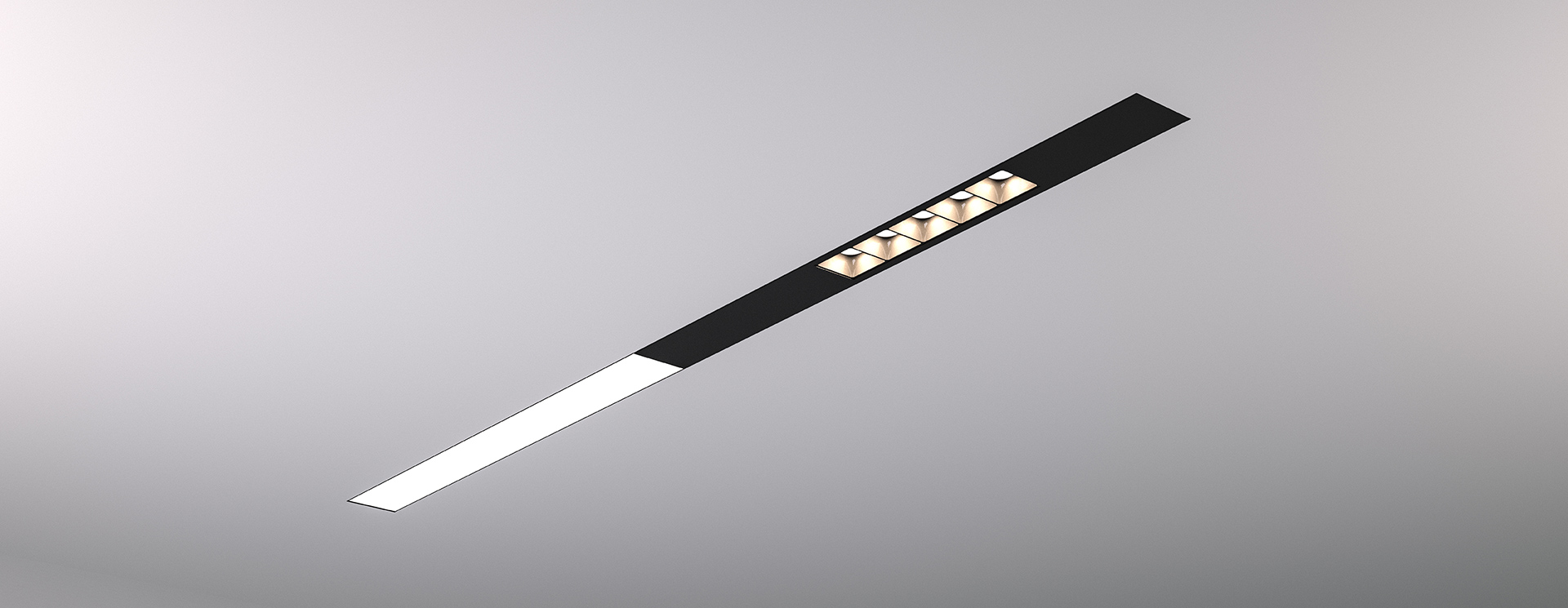

BX 3CR Series
The TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, recessed installation in variety of ceiling and materials. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, cost-effective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct illumination, multiple beam angles available (110° beam angle on solid lense), UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns.
| Model # | Size | Color Temp. | Wattage | Lumen Output | Lumens / ft | Light Source |
|---|---|---|---|---|---|---|
| TECHOLED-BX-3CR-D-4-ME-30 | 4' | 3000K | 25W | 2400Lm | 600 | 5 spots / 1 linear |
| TECHOLED-BX-3CR-D-6-ME-30 | 6' | 3000K | 40W | 3600Lm | 600 | 10 spots / 1 linear |
| TECHOLED-BX-3CR-D-8-ME-30 | 8' | 3000K | 60W | 5700Lm | 713 | 20 spots / 1 linear |
