BX 3 RG Series

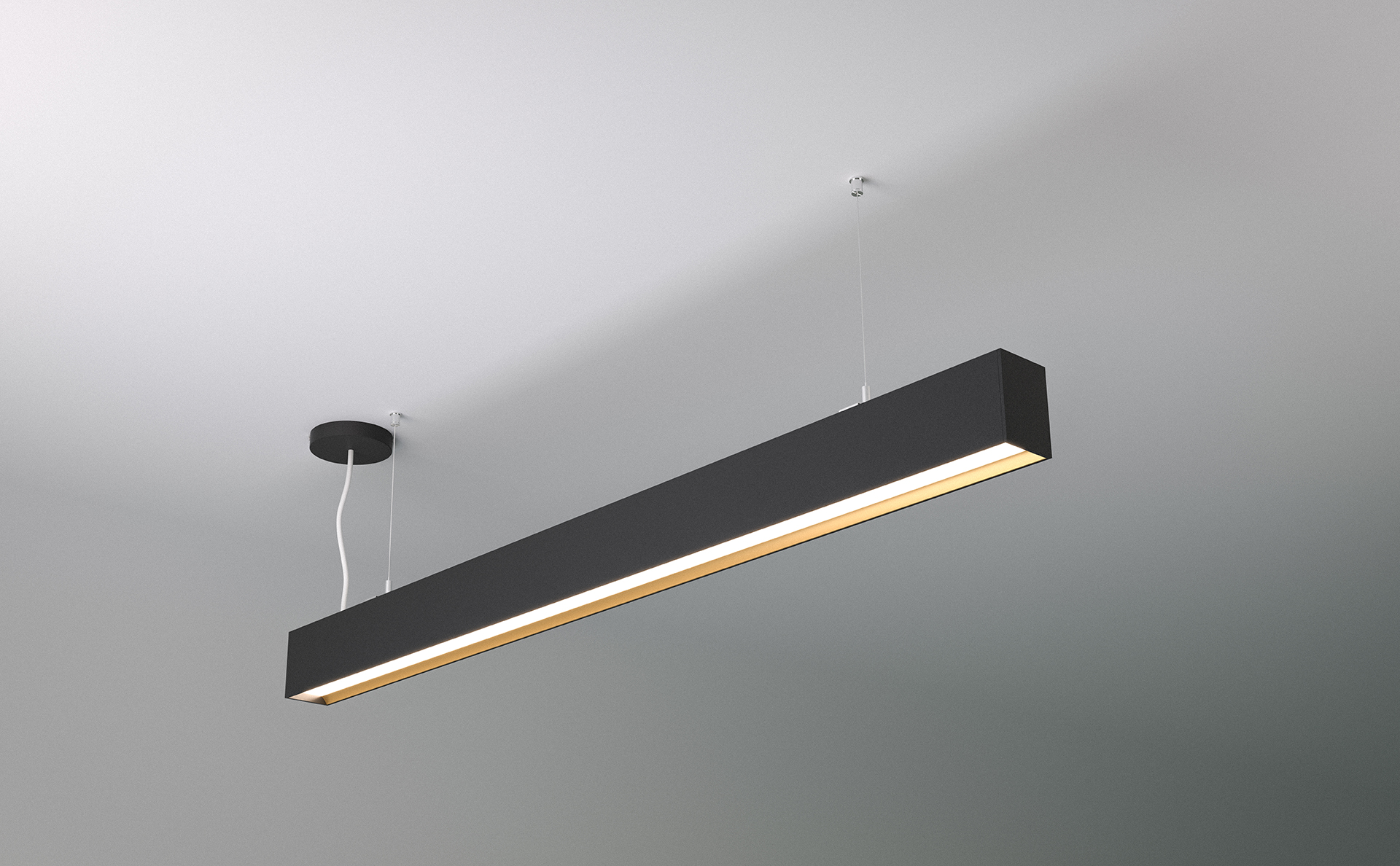

GENERAL: Indoor Architectural LED Fixture with Regressed Lens. Pendant, Surface Mount, Recessed & Wall Mounted Installation
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 103° Beam Angle
CONSTRUCTION: High Grade Aluminum Extrusion 2.6 x 3.5”, Die Cast End Caps, PMMA Diffuser, Integral Driver. Powder Coat Finish. X, T, L Lit Corners Available for Smooth, Seamless Patterns, Damp Location.
* 5-year warranty, 50,000 hour rated lifespan. Custom size, lumen output and color temperature available. Grid spacing to avoid gaps is up to the contractor.
| Model # | Length | Wattage | Distribution | Lumen Output |
|---|---|---|---|---|
| TechoLED-BX-3-RG-D-2-18-30-U-D | 2' | 18W | Direct | 1800Lm |
| TechoLED-BX-3-RG-D-4-36-30-U-D | 4' | 36W | Direct | 3600Lm |
| TechoLED-BX-3-RG-D-6-54-30-U-D | 6' | 54W | Direct | 5400Lm |
| TechoLED-BX-3-RG-D-8-72-30-U-D | 8' | 72W | Direct | 7200Lm |
| TechoLED-BX-3-RG-DI-2-27-30-U-D | 2' | 27W | Direct/Indirect | 1800Lm down/900Lm up |
| TechoLED-BX-3-RG-DI-4-54-30-U-D | 4' | 54W | Direct/Indirect | 3600Lm down/1800Lm up |
| TechoLED-BX-3-RG-DI-6-81-30-U-D | 6' | 81W | Direct/Indirect | 5400Lm down/2700Lm up |
| TechoLED-BX-3-RG-DI-8-108-30-U-D | 8' | 108W | Direct/Indirect | 7200Lm down/3600Lm up |
| Item | Description |
|---|---|
| BX-3-RG-L | L shape connector (lit) |
| BX-3-RG-T | T shape connector (lit) |
| BX-3-RG-X | X shape connector (lit) |
| BX-3-RG-C | Continuous linear run connector |
| BX-3-RG-AC | Pendant hanging kit (aircraft cable) |
| BX-3-RG-WM | Wall mounting hardware |
| BX-3-RG-FK | Flange Kit w/ mud plate for recessed installation |
| BX-3-RG-RG001 | T Grid Ceiling Accessory |
