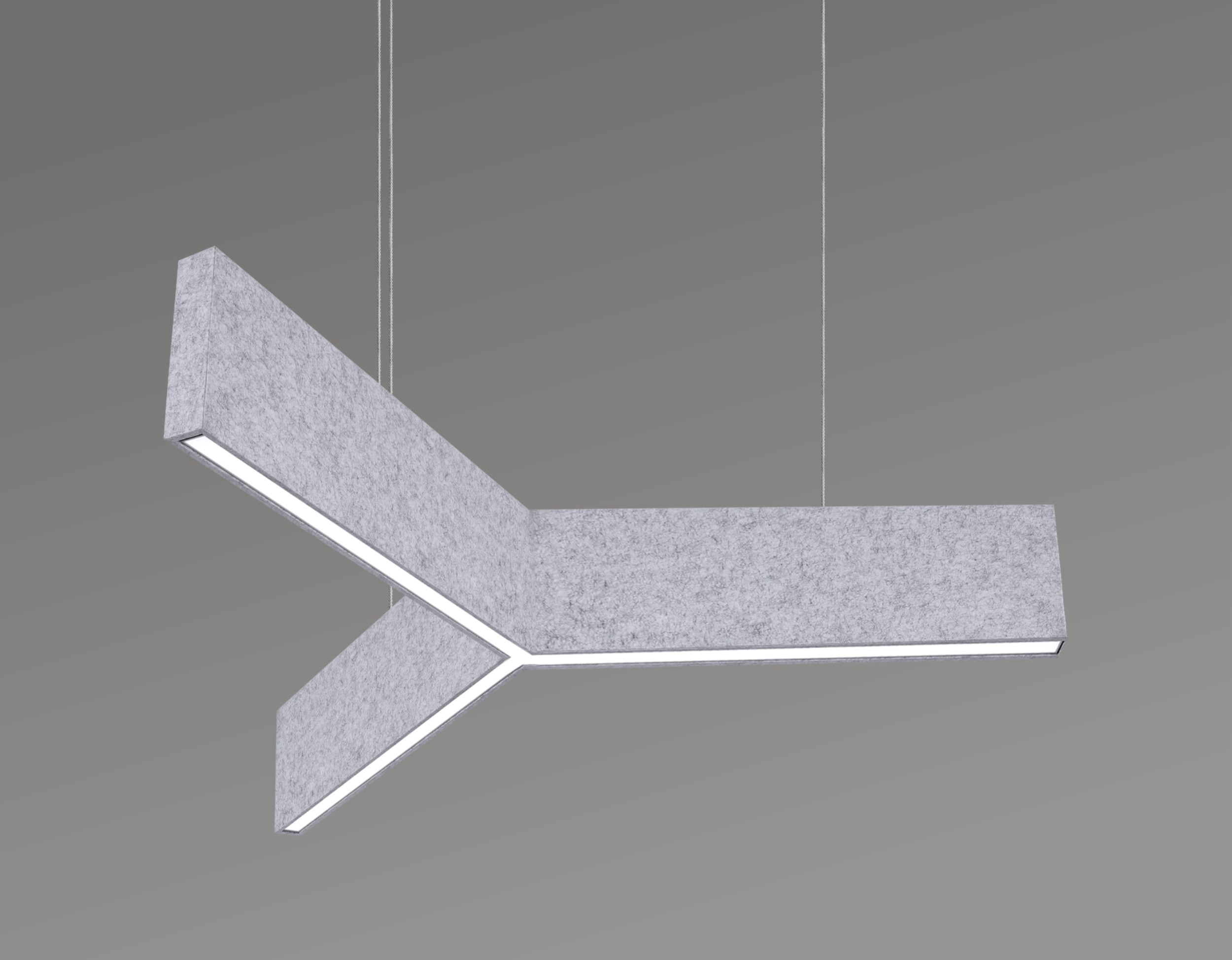

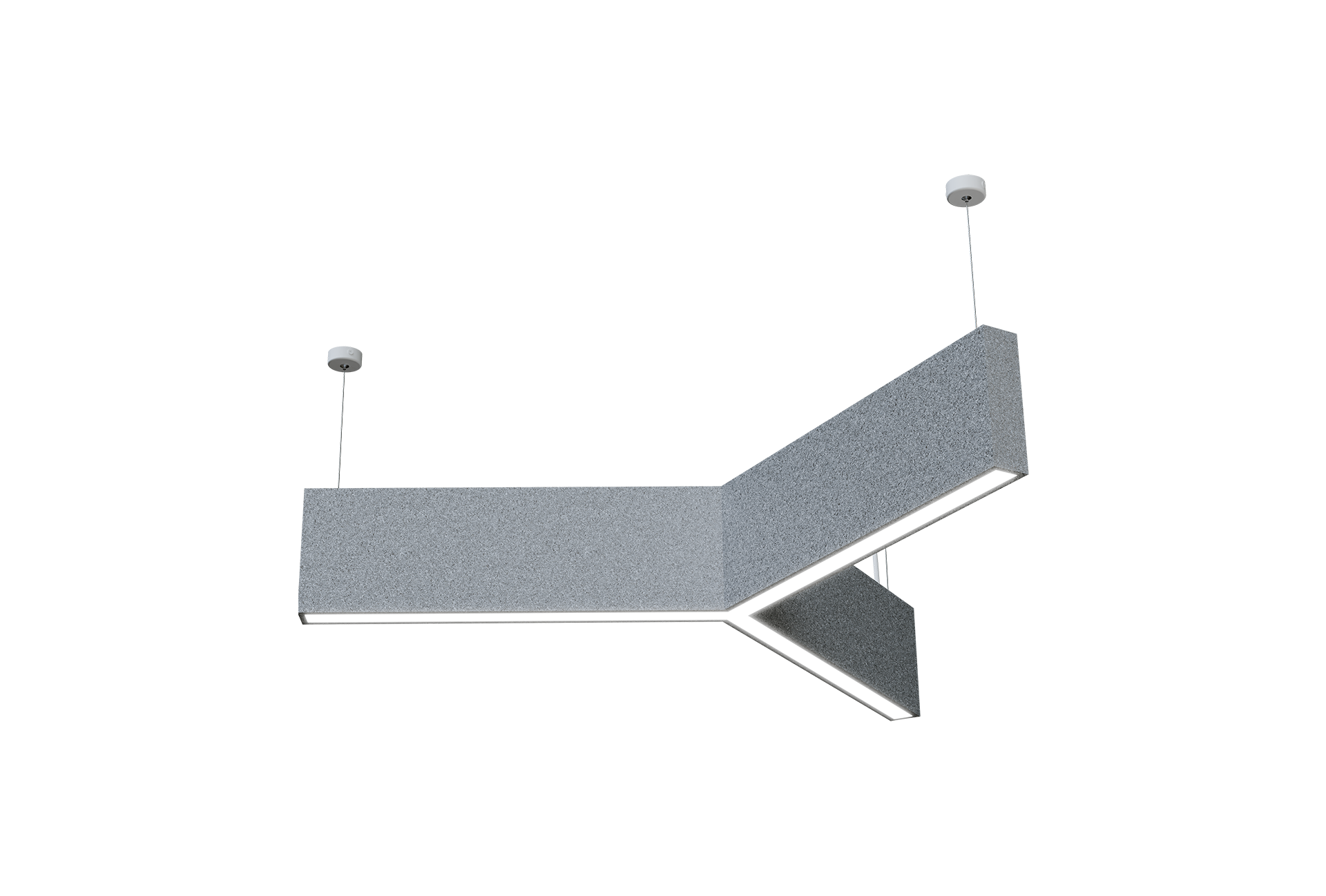

Acoustic Series – ASY
GENERAL: Indoor Acoustic LED Fixture, Pendant
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 115° Beam Angle
CONSTRUCTION: High Grade Aluminum Extrusion, Acoustic Finish available in multiple colors, PMMA diffuser
| Model | Size | Distribution | Wattage | Lumen Output |
|---|---|---|---|---|
| TechoLED-ASY-D-22-40 | 22.2"x19.7" | Direct | 40W | 4200Lm |
| TechoLED-ASY-D-42-80 | 42.6"x37.9" | Direct | 80W | 8400Lm |
| TechoLED-ASY-D-63-120 | 63.0"x56.1" | Direct | 120W | 12600Lm |
| TechoLED-ASY-DI-22-50 | 22.2"x19.7" | Direct/Indirect | 50W | 5250Lm (1575Lm up/3675Lm down) |
| TechoLED-ASY-DI-42-100 | 42.6"x37.9" | Direct/Indirect | 100W | 10500Lm (3150Lm up/7350Lm down) |
| TechoLED-ASY-DI-63-140 | 63.0"x56.1" | Direct/Indirect | 140W | 14700Lm (4200Lm up/10500Lm down) |
