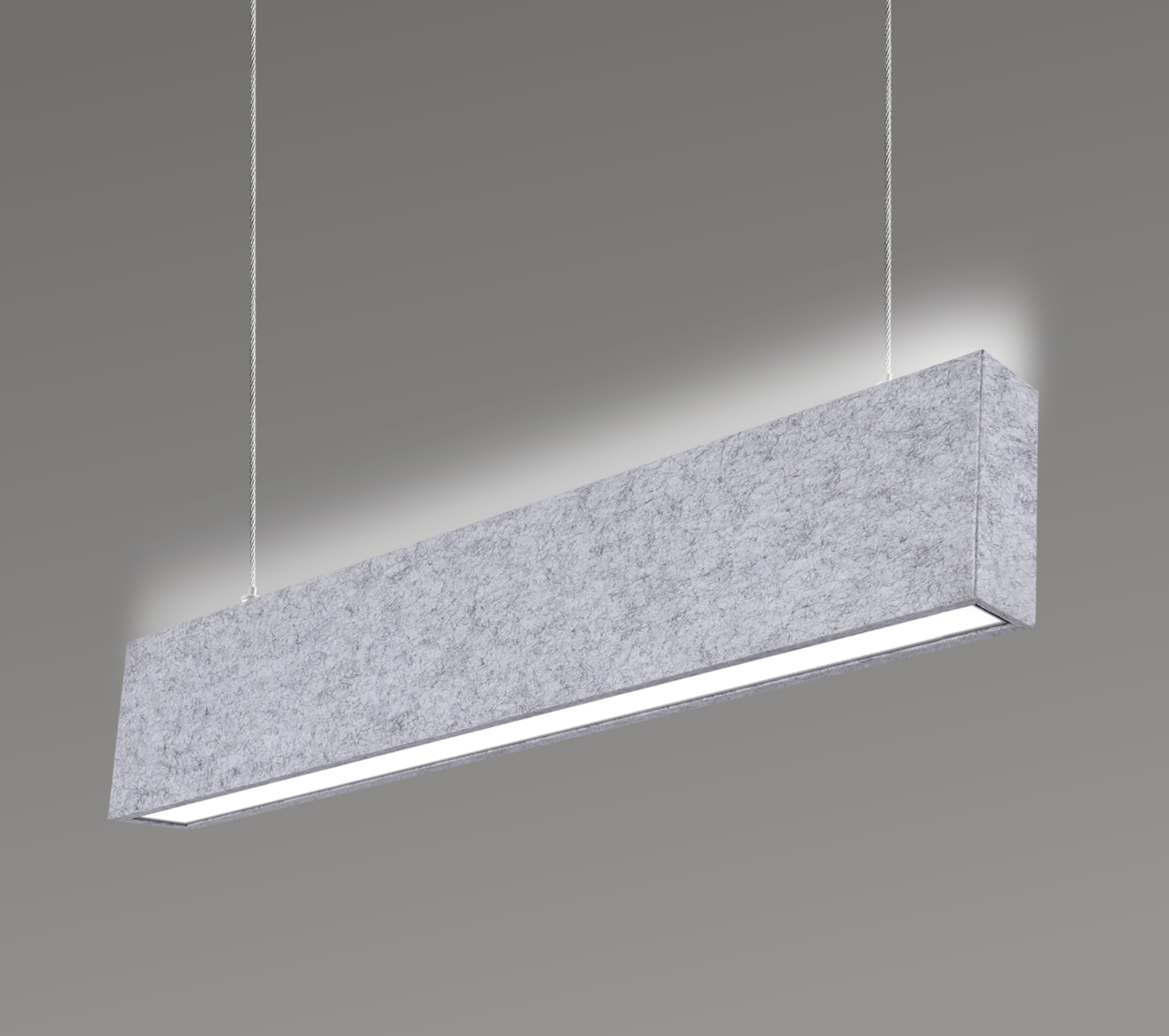

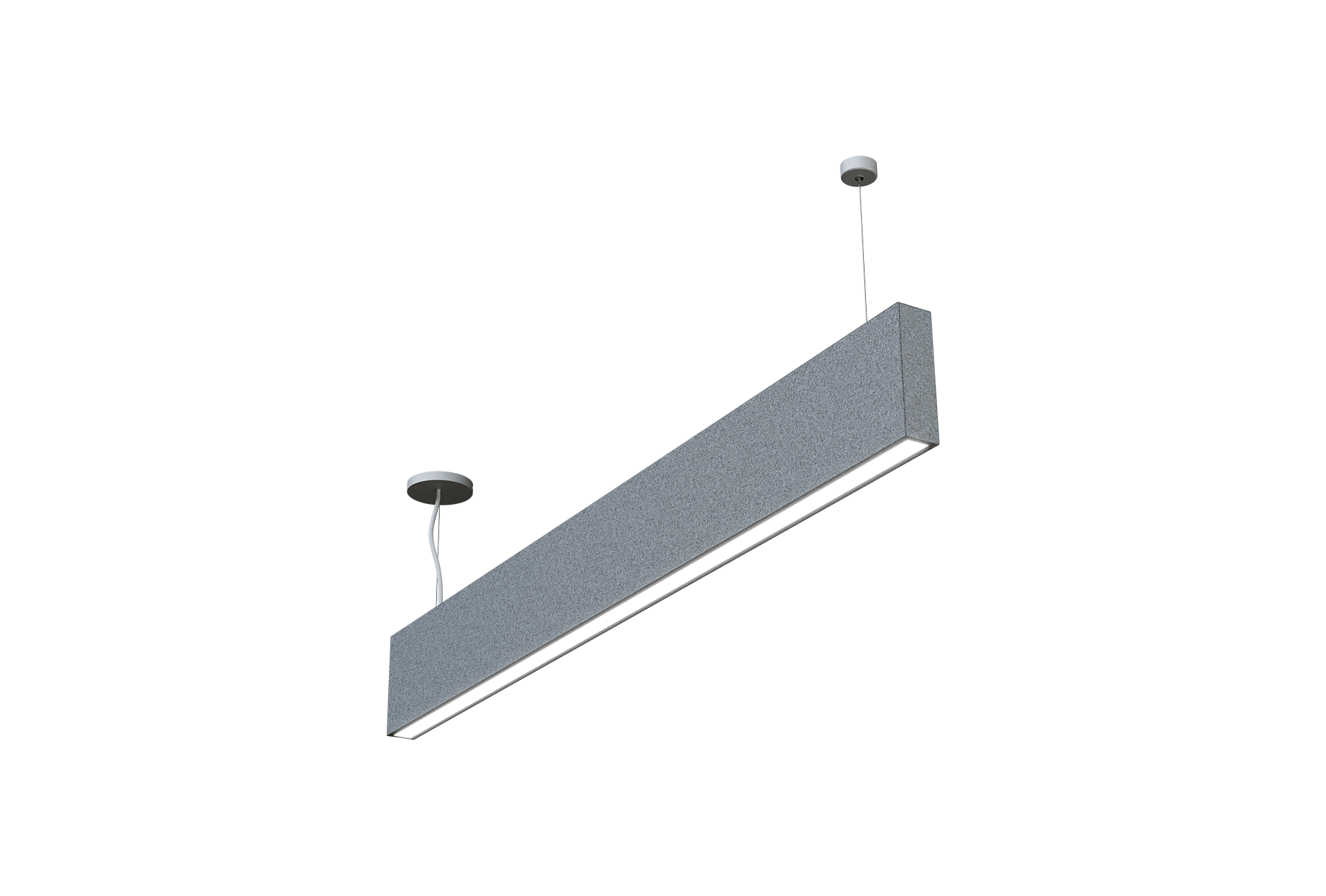

Acoustic Series – ASL
GENERAL: Indoor Acoustic LED Fixture, Pendant
LED: Samsung LED Chips, 2700-5000K, Dynamic White and RGBW Available, 80CRI (90 optional)
OPTICAL: Direct & Direct/Indirect Configurations, 115° Beam Angle
CONSTRUCTION: High Grade Aluminum Extrusion, Acoustic Finish available in multiple colors, PMMA diffuser
| Model | Size | Distribution | Wattage | Lumen Output |
|---|---|---|---|---|
| TechoLED-ASL-D-7-40 | 7.4"x47.2" | Direct | 40W | 4200Lm |
| TechoLED-ASL-D-11-40 | 11.4"x47.2" | Direct | 40W | 4200Lm |
| TechoLED-ASL-D-15-40 | 15.3"x47.2" | Direct | 40W | 4200Lm |
| TechoLED-ASL-DI-7-50 | 7.4"x47.2" | Direct/Indirect | 50W | 5250Lm (1470Lm up/3780Lm down) |
| TechoLED-ASL-DI-11-50 | 11.4"x47.2" | Direct/Indirect | 50W | 5250Lm (1470Lm up/3780Lm down) |
| TechoLED-ASL-DI-15-50 | 15.3"x47.2" | Direct/Indirect | 50W | 5250Lm (1470Lm up/3780Lm down) |
