BX-3 SERIES

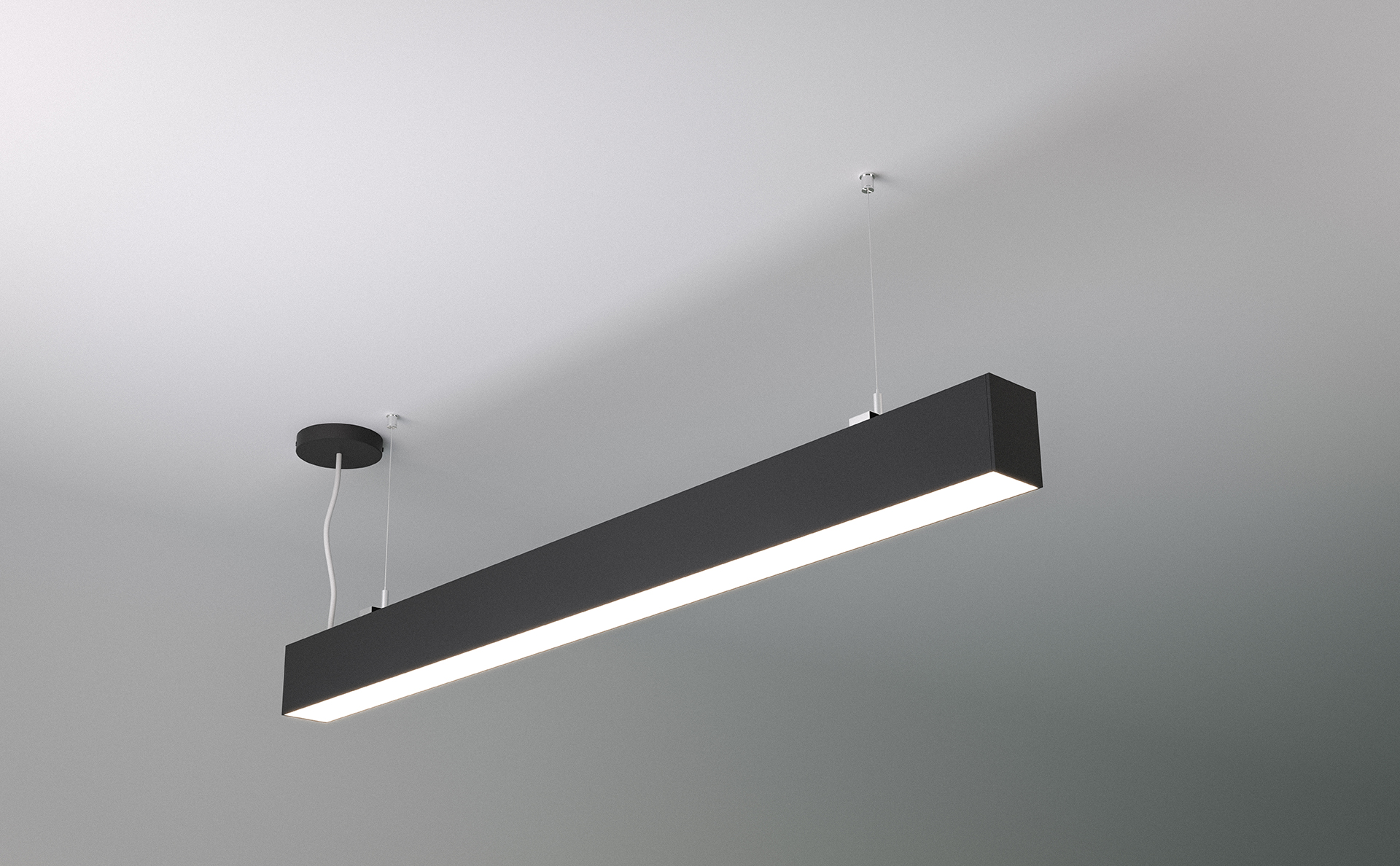

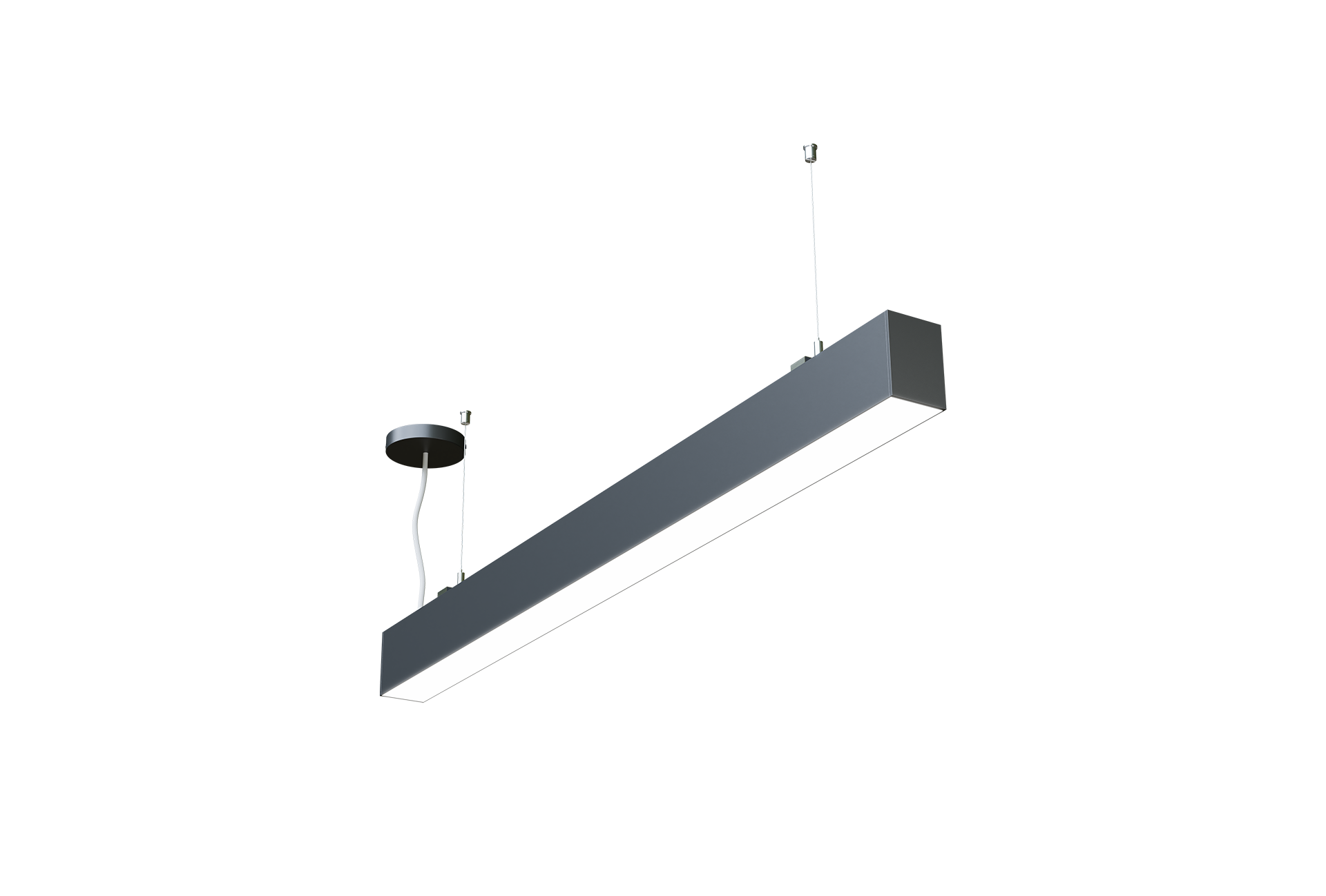

The TechoLED BX series features specification-grade linear LED fixtures made from high-grade aluminum extrusions. Available in standard sizes from 2 to 8 feet, as well as custom lengths, these fixtures can be pendant, surface, or wall-mounted. With virtually limitless options for creating patterns and shapes, the BX series provides a versatile, cost-effective, and modern lighting solution.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct and direct/indirect illumination, 110° beam angle, UGR<19
Construction: Damp location listed, high grade aluminum extrusion, die cast end caps, PMMA diffuser, powder coat finish. X, T, L lit corners, wall to ceiling transitions, for smooth seamless patterns, continuous roll lens available.
| Model | Size | Output | Color Temp. | Wattage | Lumen Output |
|---|---|---|---|---|---|
| TECHOLED-BX-3-D-2-ME-30 | 2' | Medium | 3000K | 16W | 2096Lm |
| TECHOLED-BX-3-D-2-HI-30 | 2' | High | 3000K | 22W | 2882Lm |
| TECHOLED-BX-3-D-4-LO-30 | 4' | Low | 3000K | 23W | 3013Lm |
| TECHOLED-BX-3-D-4-ME-30 | 4' | Medium | 3000K | 32W | 4192Lm |
| TECHOLED-BX-3-D-4-HI-30 | 4' | High | 3000K | 44W | 5764Lm |
| TECHOLED-BX-3-D-6-LO-30 | 6' | Low | 3000K | 34W | 4454Lm |
| TECHOLED-BX-3-D-6-ME-30 | 6' | Medium | 3000K | 48W | 6288Lm |
| TECHOLED-BX-3-D-6-HI-30 | 6' | High | 3000K | 66W | 8646Lm |
| TECHOLED-BX-3-D-8-LO-30 | 8' | Low | 3000K | 46W | 6026Lm |
| TECHOLED-BX-3-D-8-ME-30 | 8' | Medium | 3000K | 64W | 8384Lm |
| TECHOLED-BX-3-D-8-HI-30 | 8' | High | 3000K | 89W | 11659Lm |
| Model | Size | Output | Color Temp. | Wattage | Down Lumen Output | Up Lumen Output |
|---|---|---|---|---|---|---|
| TECHOLED-BX-3-DI-2-ME-30 | 2' | Medium | 3000K | 17W | 1480Lm | 850Lm |
| TECHOLED-BX-3-DI-2-HI-30 | 2' | High | 3000K | 22W | 1890Lm | 1124Lm |
| TECHOLED-BX-3-DI-4-LO-30 | 4' | Low | 3000K | 23W | 1972Lm | 1204Lm |
| TECHOLED-BX-3-DI-4-ME-30 | 4' | Medium | 3000K | 34W | 2960Lm | 1700Lm |
| TECHOLED-BX-3-DI-4-HI-30 | 4' | High | 3000K | 44W | 3780Lm | 2248Lm |
| TECHOLED-BX-3-DI-6-LO-30 | 6' | Low | 3000K | 34W | 2958Lm | 1806Lm |
| TECHOLED-BX-3-DI-6-ME-30 | 6' | Medium | 3000K | 51W | 4440Lm | 2550Lm |
| TECHOLED-BX-3-DI-6-HI-30 | 6' | High | 3000K | 65W | 5670Lm | 3372Lm |
| TECHOLED-BX-3-DI-8-LO-30 | 8' | Low | 3000K | 46W | 3944Lm | 2408Lm |
| TECHOLED-BX-3-DI-8-ME-30 | 8' | Medium | 3000K | 68W | 5920Lm | 3400Lm |
| TECHOLED-BX-3-DI-8-HI-30 | 8' | High | 3000K | 88W | 7560Lm | 4496Lm |
