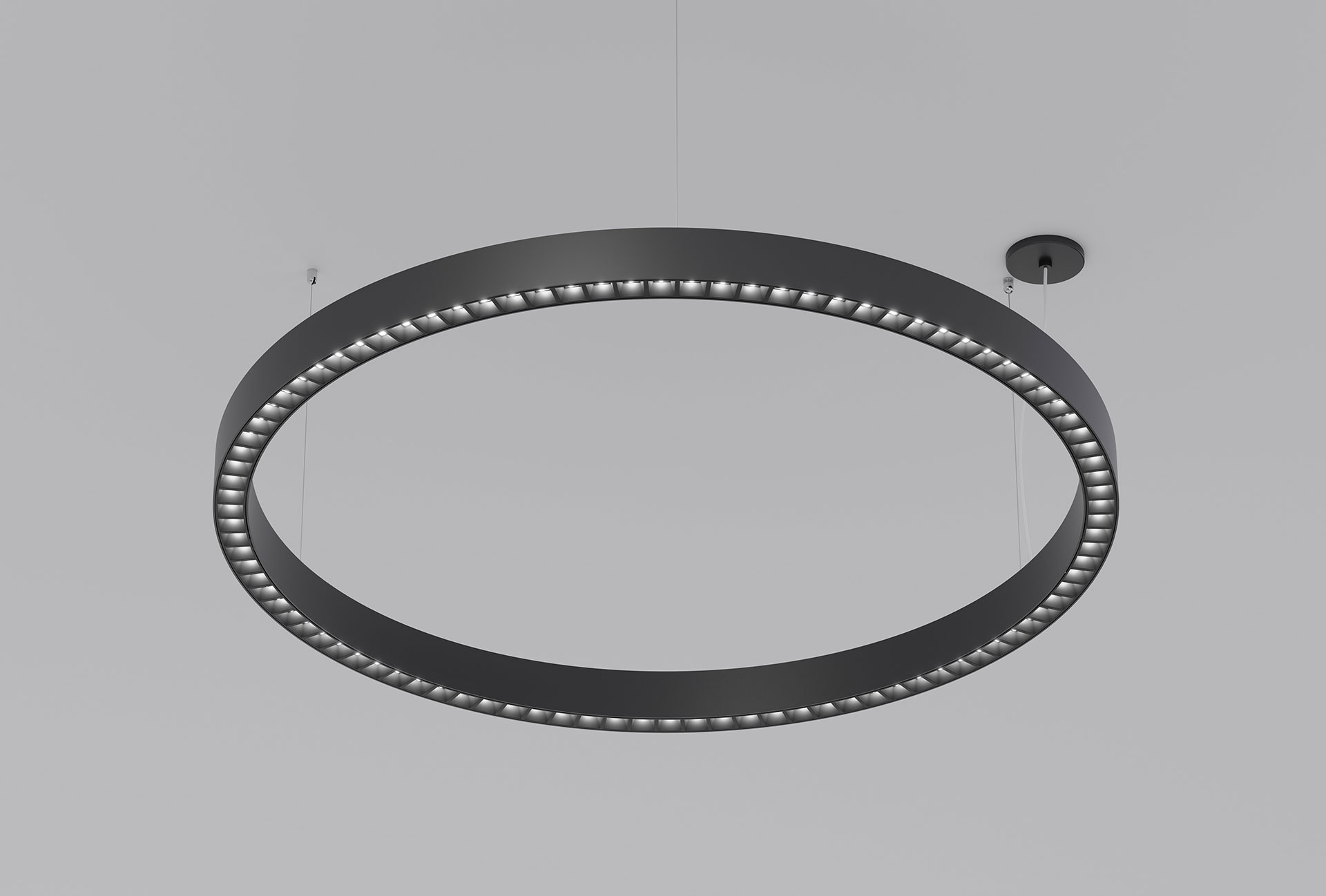

HALO LOUVER SERIES
HALO SERIES - LOUVER
The TechoLED HALO-LOUVER series features sleek, round LED luminaires made with high-grade aluminum extrusion and louvered optics. With multiple diameters (or custom sizes of your choice), these luminaires can be surface mounted or pendant. Additionally, the HALO series offers the flexibility of multiple fixtures hanging from a single canopy. A superb lighting solution for modern interiors.
LED: Bridgelux LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 100,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct and direct/indirect illumination, 110° beam angle, UGR<19 on lensed section, 50° beam angle and UGR<16 on louvered sections
Construction: Damp location listed, high grade aluminum extrusion, powder coat finish. Remote driver in canopy.
Louver Section
| MODEL # | Diameter | Output | Lumens / fixture | Lumens / W |
|---|---|---|---|---|
| TECHOLED-HALO-L-25-LO-30 | 25.56'' | Low | 4496 | 104 |
| TECHOLED-HALO-L-25-ME-30 | 25.56'' | Medium | 5904 | 102 |
| TECHOLED-HALO-L-25-HI-30 | 25.56'' | High | 7320 | 101 |
| TECHOLED-HALO-L-51-LO-30 | 51.18'' | Low | 8992 | 104 |
| TECHOLED-HALO-L-51-ME-30 | 51.18'' | Medium | 11808 | 102 |
| TECHOLED-HALO-L-51-HI-30 | 51.18'' | High | 14640 | 101 |
Diffuser Section (Direct)
| MODEL # | Diameter | Output | Lumens / fixture | Lumens / W |
|---|---|---|---|---|
| TECHOLED-HALO-L-25-D-LO-30 | 25.56'' | Low | 1592 | 80 |
| TECHOLED-HALO-L-25-D-ME-30 | 25.56'' | Medium | 3072 | 73 |
| TECHOLED-HALO-L-25-D-HI-30 | 25.56'' | High | 4321 | 80 |
| TECHOLED-HALO-L-51-D-LO-30 | 51.18'' | Low | 3187 | 80 |
| TECHOLED-HALO-L-51-D-ME-30 | 51.18'' | Medium | 6159 | 80 |
| TECHOLED-HALO-L-51-D-HI-30 | 51.18'' | High | 8663 | 80 |
Diffuser Section (Direct/Indirect)
| MODEL # | Diameter | Output | Lumens / fixture | Lumens / W |
|---|---|---|---|---|
| TECHOLED-HALO-L-25-DI-LO-30 | 25.56'' | Low | 1344 | 80 |
| TECHOLED-HALO-L-25-DI-ME-30 | 25.56'' | Medium | 2609 | 73 |
| TECHOLED-HALO-L-25-DI-HI-30 | 25.56'' | High | 3659 | 85 |
| TECHOLED-HALO-L-51-DI-LO-30 | 51.18'' | Low | 2691 | 80 |
| TECHOLED-HALO-L-51-DI-ME-30 | 51.18'' | Medium | 5222 | 73 |
| TECHOLED-HALO-L-51-DI-HI-30 | 51.18'' | High | 7324 | 85 |
